Panasonic

Aluminum Electrolytic Capacitors

Products Catalog

2019.7

http://industrial.panasonic.com/ww/products/capacitors/aluminum-capacitors/aluminum-cap-lead

2019

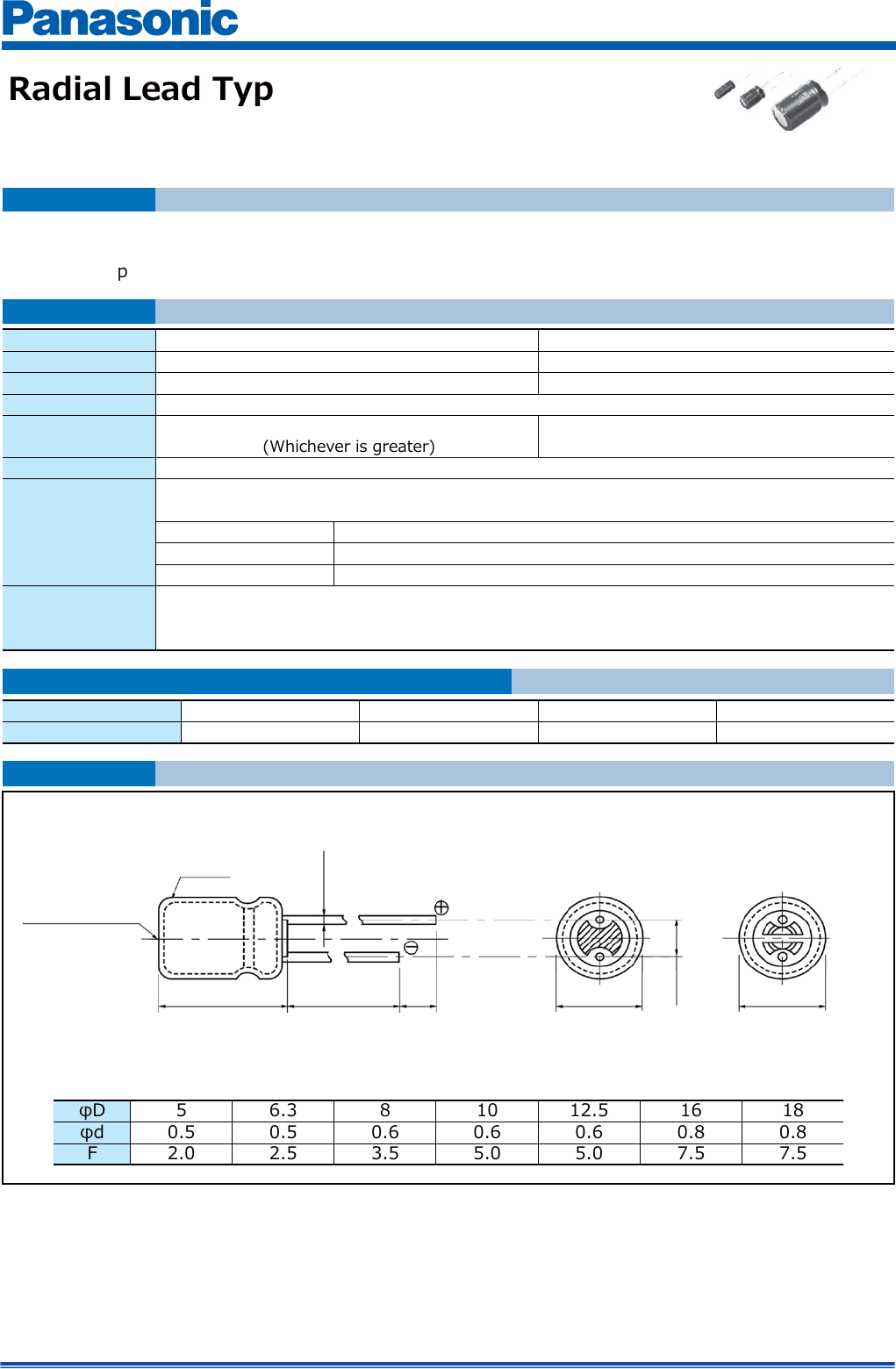

Radial lead type

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

——— Notices ———

■ Applicable Laws and Regulations

● This product complies with the RoHS Directive (Restriction of the use of certain Hazardous substances in

electrical and electronic equipment (DIRECTIVE 2011/65/EU).

● No Ozone Depleting Chemicals(ODC's), controlled under the Montreal Protocol Agreement, are used in

producing this product.

● We do not use PBBs or PBDEs as brominated flame retardants.

● Export procedure which followed export related regulations, such as foreign exchange and a foreign trade

method, on the occasion of export of this product.

■ Limited applications

● This capacitor is designed to be used for electronics circuits such as audio/visual equipment, home

appliances, computers and other office equipment, optical equipment, measuring equipment.

● High reliability and safety are required [ be / a possibility that incorrect operation of this product may do harm

to a human life or property ] more. When use is considered by the use, the delivery specifications which suited

the use separately need to be exchanged.

——— Items to be observed ———

● This specification guarantees the quality and performance of the product as individual components.

Before use, check and evaluate their compatibility with installed in your products.

● Do not use the products beyond the specifications described in this document.

■ For specifi cations

● Install the following systems for a failsafe design to ensure safety if these products are to be used in

equipment where a defect in these products may cause the loss of human life or other signification damage,

such as damage to vehicles (automobile, train, vessel), traffic lights, medical equipment, aerospace equipment,

electric heating appliances, combustion/ gas equipment, rotating rotating equipment, and disaster/crime

prevention equipment.

· The system is equipped with a protection circuit and protection device.

· The system is equipped with a redundant circuit or other system to prevent an unsafe status in the event of

a single fault.

■ Conditions of use

● Before using the products, carefully check the effects on their quality and performance, and determined

whether or not they can be used. These products are designed and manufactured for general-purpose and

standard use in general electronic equipment. These products are not intended for use in the following special

conditions.

(1) In liquid, such as Water, Oil, Chemicals, or Organic solvent.

(2) In direct sunlight, outdoors, or in dust.

(3) In vapor, such as dew condensation water of resistive element, or water leakage, salty air, or air with a

high concentration corrosive gas, such as Cl2, H2S, NH3, SO2, or NOx.

(4) In an environment where strong static electricity or electromagnetic waves exist.

(5) Mounting or placing heat-generating components or inflammables, such as vinyl-coated wires, near

these products.

(6) Sealing or coating of these products or a printed circuit board on which these products are mounted,

with resin and other material.

(7) Using resolvent, water or water-soluble cleaner for flux cleaning agent after soldering. (In particular,

when using water or a water-soluble cleaning agent, be careful not to leave water residues)

(8) Using in the atmosphere which strays Acid or alkaline.

(9) Using in the atmosphere which there are excessive vibration and shock.

● Please arrange circuit design for preventing impulse or transitional voltage.

Do not apply voltage, which exceeds the full rated voltage when the capacitors receive impulse voltage,

instantaneous high voltage, high pulse voltage etc.

● Our products there is a product are using an electrolyte solution. Therefore, misuse can result in rapid

deterioration of characteristics and functions of each product. Electrolyte leakage damages printed circuit and

affects performance, characteristics, and functions of customer system.

Mar. 201701

Panasonic A

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Application Guidelines (Radial Lead Type)

1. Circuit design

1.1 Operating Temperature and Frequency

Electrical characteristics of the capacitor are likely to change due to variation in temperature and/or frequency. Circuit

designers should take these changes into consideration.

(1) Effects of operating temperature on electrical parameters

(a) At higher temperatures, leakage current and capacitance increase while equivalent series resistance

(ESR) decreases.

(b) At lower temperatures, leakage current and capacitance decrease while equivalent series resistance

(ESR) increases.

(2) Effects of frequency on electrical parameters

(a) At higher frequencies, capacitance and impedance decrease while tan d increases.

(b) At lower frequencies, heat generated by ripple current will rise due to an increase in equivalent series

resistance (ESR).

1.2 Operating Temperature and Life Expectancy

(1) Expected life is affected by operating temperature. Generally, each 10 °C reduction in temperature will

double the expected life.

Use capacitors at the lowest possible temperature below the upper category temperature.

(2) If operating temperatures exceed the upper category limit, rapid deterioration of electrical parameter will

occur and irreversible damage will result.

Check for the maximum capacitor operating temperatures including ambient temperature, internal capacitor

temperature rise due to ripple current, and the effects of radiated heat from power transistors, IC's or resistors.

Avoid placing components, which could conduct heat to the capacitor from the back side of the circuit board.

(3) The formula for calculating expected life at lower operating temperatures is as follows;

L2 = L1×2 ( )

L1 : Guaranteed life (h) at temperature, T1 °C

L2 : Expected life (h) at temperature, T2 °C

T1 : Upper category temperature + temperature rise due to rated ripple current (°C)

T2 : Actual operating temperature, ambient temperature + temperature rise due to ripple current (°C)

(4) Please use according to the lifetime as noted in this specification. Using products beyond end of the

lifetime may change characteristics rapidly, short-circuit, operate pressure relief vent, or leak electrolyte.

1.3 Common Application Conditions to Avoid

The following misapplication load conditions will cause rapid deterioration of a capacitor’s electrical parameters.

In addition, rapid heating and gas generation within the capacitor can occur, causing the pressure relief vent to

operate and resultant leakage of electrolyte. Under extreme conditions, explosion and fi re ignition could result.

The leaked electrolyte is combustible and electrically conductive.

(1) Reverse Voltage

DC capacitors have polarity. Verify correct polarity before insertion. For circuits with changing or uncertain

polarity, use DC bipolar capacitors. DC bipolar capacitors are not suitable for use in AC circuits.

(2) Charge / Discharge Applications

Standard capacitors are not suitable for use in repeating charge/discharge applications. For charge/

discharge applications, consult us with your actual application condition.

For rush current, please to not exceed 100 A.

(3) ON-OFF circuit

Do not use capacitors in circuit where ON-OFF switching is repeated more than 10000 times/per day.

In case of applying to the theses ON-OFF circuit, consult with us about circuit condition and so on.

(4) Over voltage

Do not apply voltages exceeding the maximum specified rated voltage. Voltages up to the surge voltage

rating are acceptable for short periods of time.

Ensure that the sum of the DC voltage and the superimposed AC ripple voltage does not exceed the

rated voltage.

(5) Ripple Current

Do not apply ripple currents exceeding the maximum specified value. For high ripple current applications,

use a capacitor designed for high ripple currents. In addition, consult us if the applied ripple current is to

be higher than the maximum specified value.

Ensure that rated ripple currents that superimposed on low DC bias voltages do not cause reverse

voltage conditions.

T1-T2

10

Jul. 201704

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

1.4 Using Two or More Capacitors in Series or Parallel

(1) Capacitors Connected in Parallel

The circuit resistance can closely approximate the series resistance of the capacitor, causing an

imbalance of ripple current loads within the capacitors. Careful wiring methods can minimize the possible

application of an excessive ripple current to a capacitor.

(2) Capacitors Connected in Series

Differences in normal DC leakage current among capacitors can cause voltage imbalances.

The use of voltage divider shunt resistors with consideration to leakage currents can prevent capacitor

voltage imbalances.

1.5 Capacitor Mounting Considerations

(1) Double-Sided Circuit Boards

Avoid wiring pattern runs, which pass between the mounted capacitor and the circuit board. When dipping

into a solder bath, an excess solder may deposit under the capacitor by capillary action, causing short

circuit between anode and cathode terminals.

(2) Circuit Board Hole Positioning

The vinyl sleeve of the capacitor can be damaged if solder passes through a lead hole into the

subsequently processed parts.

Special care when locating hole positions in proximity to capacitors is recommended.

(3) Circuit Board Hole Spacing

The spacing of circuit board holes should match the lead wire spacing of capacitors within the specified tolerances.

Incorrect spacing can cause an excessive lead wire stress during the insertion process.

This may result in premature capacitor failure due to the short or open circuit, increased leakage current, or

electrolyte leakage.

(4) Clearance for Case Mounted Pressure Relief

Capacitors with case mounted pressure relief require sufficient clearance to allow for proper pressure relief

operation.

The minimum clearance are dependent on capacitor diameters as follows.

(Dia 6.3 mm to Dia 16 mm : 2 mm minimum, Dia 18 mm : 3 mm minimum)

(5) Wiring Near the Pressure Relief

Avoid locating high voltage or high current wiring or circuit board paths above the pressure relief.

Flammable, high temperature gas that exceeds 100 °C may be released which could dissolve the wire

insulation and ignite.

(6) Circuit Board Patterns Under the Capacitor

Avoid circuit board runs under the capacitor, as an electrical short can occur due to an electrolyte leakage.

(7) Please note the resonant after product implementation

The vicinity of the resonant point will take a heavy load on the capacitor.

Capacitors can cause rapid change in characteristics and dropout by this load.

1.6 Electrical Isolation of the Capacitor

Completely isolate the capacitor as follows.

Between the cathode and the case and between the anode terminal and other circuit paths.

1.7 Capacitor Sleeve

The vinyl sleeve or laminate coating is intended for marking and identification purposes and is not meant to

electrically insulate the capacitor.

The sleeve may split or crack if immersed into solvents such as toluene or xylene and then subsequently

exposed to high temperatures.

2. Capacitor Handling Techniques

2.1 Considerations Before Using

(1) Capacitors have a finite life. Do not reuse or recycle capacitors from used equipment.

(2) Transient recovery voltage may be generated in the capacitor due to dielectric absorption.

If required, this voltage can be discharged with a resistor with a value of about 1 kΩ.

(3) Capacitors stored for a long period of time may exhibit an increase in leakage current.

This can be corrected by gradually applying rated voltage in series with a resistor of approximately 1 kΩ.

(4) If capacitors are dropped, they can be damaged mechanically or electrically. Avoid using dropped

capacitors.

(5) Dented or crushed capacitors should not be used. The seal integrity can be damaged and loss of

electrolyte/shortened life can result.

Jul. 201704

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

2.2 Capacitor Insertion

(1) Verify the correct capacitance and rated voltage of the capacitor.

(2) Verify the correct polarity of the capacitor before insertion.

(3) Verify the correct hole spacing and land pattern size before insertion to avoid stress on the terminals.

(4) Ensure that the lead clinching operation done by auto insertion equipments does not stress the capacitor

leads where they enter the seal of the capacitor.

2.3 Flow Soldering

(1) Do not immerse the capacitor body into the solder bath as excessive internal pressure could result.

(2) Apply proper soldering conditions (temperature, time, etc.). Do not exceed the specified limits.

(3) Do not allow other parts or components to touch the capacitor during soldering.

(4) Radial lead type capacitors are not allowed for the reflow soldering.

2.4 Manual Soldering

(1) Apply soldering conditions (temperature and time) based on the specification, or do not exceed

temperature of 350 °C for 3 seconds or less.

(2) If lead wires must be modified to meet terminal board hole spacing, avoid stress on the lead wire where

it enters the capacitor seal.

(3) If a soldered capacitor must be removed and reinserted, avoid excessive stress on the capacitor leads.

(4)

Avoid physical contacts between the tip of the soldering iron and capacitors to prevent melting of the vinyl sleeve.

2.5 Other Soldering Considerations

Rapid temperature rise during the preheat operation and resin bonding operation can cause cracking of the

capacitor’s vinyl sleeve.

For heat curing, do not exceed 150 °C for the maximum time of 2 minutes.

2.6 Capacitor Handling after Soldering

(1)

Avoid moving the capacitor after soldering to prevent excessive stress on the lead wires where they enter the seal.

The capacitor may break from element portion due to a torque at outer rim, causing a large stress to terminals.

(2)

Do not use the capacitor as a handle when moving the circuit board assembly. The total weight of the board

would apply to element portion through terminals, and the capacitor may break.

(3)

Avoid striking the capacitor after assembly to prevent failure due to excessive shock. The capacitor may break due

to excessive shock or load above specified range.

2.7 Circuit Board Cleaning

(1) Circuit boards can be immersed or ultrasonically cleaned using suitable cleaning solvents for up to 5 minutes

and up to 60 °C maximum temperatures. The boards should be thoroughly rinsed and dried.

The use of ozone depleting cleaning agents is not recommended for the purpose of protecting our environment.

(2) Avoid using the following solvent groups unless specifically allowed in the specification ;

(a) Halogenated cleaning solvents: except for solvent resistant capacitor types, halogenated solvents can

permeate the seal and cause internal capacitor corrosion and failure.

For solvent resistant capacitors, carefully follow the temperature and time requirements based on the specification.

1,1,1-trichloroethane should never be used on any aluminum electrolytic capacitor.

(b) Alkaline solvents : could react and dissolve the aluminum case.

(c) Petroleum based solvents : deterioration of the rubber seal could result.

(d) Xylene : deterioration of the rubber seal could result.

(e) Acetone : removal of the ink markings on the vinyl sleeve could result.

(3) A thorough drying after cleaning is required to remove residual cleaning solvents that may be trapped

between the capacitor and the circuit board. Avoid drying temperatures, which exceed the Upper category

temperature of the capacitor.

(4) Monitor the contamination levels of the cleaning solvents during use in terms of electrical conductivity,

pH, specific gravity, or water content. Chlorine levels can rise with contamination and adversely affect the

performance of the capacitor. Control the flux density in the cleaning agent to be less than 2 mass%.

(5) Depending on the cleaning method, the marking on a capacitor may be erased or blurred.

Please consult us if you are not certain about acceptable cleaning solvents or cleaning methods.

2.8 Mounting Adhesives and Coating Agents

When using mounting adhesives or coating agents to control humidity, avoid using materials containing

halogenated solvents.

Also, avoid the use of chloroprene based polymers.

Harden on dry adhesive or coating agents well lest the solvent should be left.

After applying adhesives or coatings, dry thoroughly to prevent residual solvents from being trapped between

the capacitor and the circuit board.

Jul. 201704

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

2.9 Fumigation

In exporting electronic appliances with aluminum electrolytic capacitors, in some cases fumigation treatment

using such halogen compound as methyl bromide is conducted for wooden boxes.

If such boxes are not dried well, the halogen left in the box is dispersed while transported and enters in the

capacitors inside.

This possibly causes electrical corrosion of the capacitors. Therefore, after performing fumigation and drying

make sure that no halogen is left.

Don’t perform fumigation treatment to the whole electronic appliances packed in a box.

Leave more than 1/3 of the sealing portion open, and do not cover that portion with any adhesives or coating.

3. Precautions for using capacitors

3.1 Environmental Conditions

Capacitors should not be used in the following environments.

(1) Exposure to temperatures above the upper category or below the lower category temperature of the capacitor.

(2) Direct contact with water, salt water, or oil.

(3) High humidity conditions where water could condense on the capacitor.

(4) Exposure to toxic gases such as hydrogen sulfide, sulfuric acid, nitric acid, chlorine, Chlorine compound,

Bromine, Bromine compound or ammonia.

(5) Exposure to ozone, radiation, or ultraviolet rays.

(6) Vibration and shock conditions exceeding specified requirements.

3.2 Electrical Precautions

(1) Avoid touching the terminals of a capacitor as a possible electric shock could result. The exposed

aluminum case is not insulated and could also cause electric shock if touched.

(2) Avoid short circuiting the area between the capacitor terminals with conductive materials including liquids

such as acids or alkaline solutions.

(3) A low-molecular-weight-shiroxane which is included in a silicon material shall causes abnormal electrical

characteristics.

4. Emergency Procedures

(1)

If the pressure relief of the capacitor operates, immediately turn off the equipment and disconnect from the power source.

This will minimize an additional damage caused by the vaporizing electrolyte.

(2) Avoid contact with the escaping electrolyte gas, which can exceed 100 °C temperatures.

If electrolyte or gas enters the eye, immediately flush the eye with large amounts of water.

If electrolyte or gas is ingested by mouth, gargle with water.

If electrolyte contacts the skin, wash with soap and water.

5. Long Term Storage

Leakage current of a capacitor increases with long storage times. The aluminum oxide film deteriorates as a

function of temperature and time.

If used without reconditioning, an abnormally high current will be required to restore the oxide film.

This surge current could cause the circuit or the capacitor to fail.

Expiration date is 42 months from outgoing inspection date.

However, expiration date for series which are not listed below is 12 months from outgoing inspection date.

For storage condition, keep room temperature (5 °C to 35 °C) and humidity (45 % to 85 %) where direct

sunshine doesn't reach.

5.1 Environmental Conditions

Do not store under condition outside the area described in the specification, and also under conditions listed below.

(1) Exposure to temperatures above the upper category or below the lower category temperature of the capacitor.

(2) Direct contact with water, salt water, or oil.

(3) High humidity conditions where water could condense on the capacitor.

(4) Exposure to toxic gases such as hydrogen sulfide, sulfuric acid, nitric acid, chlorine, Chlorine compound,

Bromine, Bromine compound or ammonia.

(5) Exposure to ozone, radiation, or ultraviolet rays.

(6) Vibration and shock conditions exceeding specified requirements.

6. Capacitor Disposal

When disposing capacitors, use one of the following methods.

(1) Incinerate after crushing the capacitor or puncturing the can wall (to prevent explosion due to internal pressure rise).

(2) Dispose as solid waste.

NOTE : Local laws may have specific disposal requirements which must be followed.

Series Expiration date

FC, FK, HD, TA, TP 42 months from outgoing inspection date

Jul. 201704

Panasonic H H j ﬂjgg :59 J W g) 2% SE?) f W (

Design and speciﬁcations are each subject to change without notice. Ask factory for the current technical speciﬁcations befo re purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

High temperature · Long life

Low impedance

Miniaturized

Low impedance

Long Life · High ripple

TA series

125 °C

2000 h

GA series (7L)

105 °C

1000 h

SU series Bi-polar

85 °C

2000 h

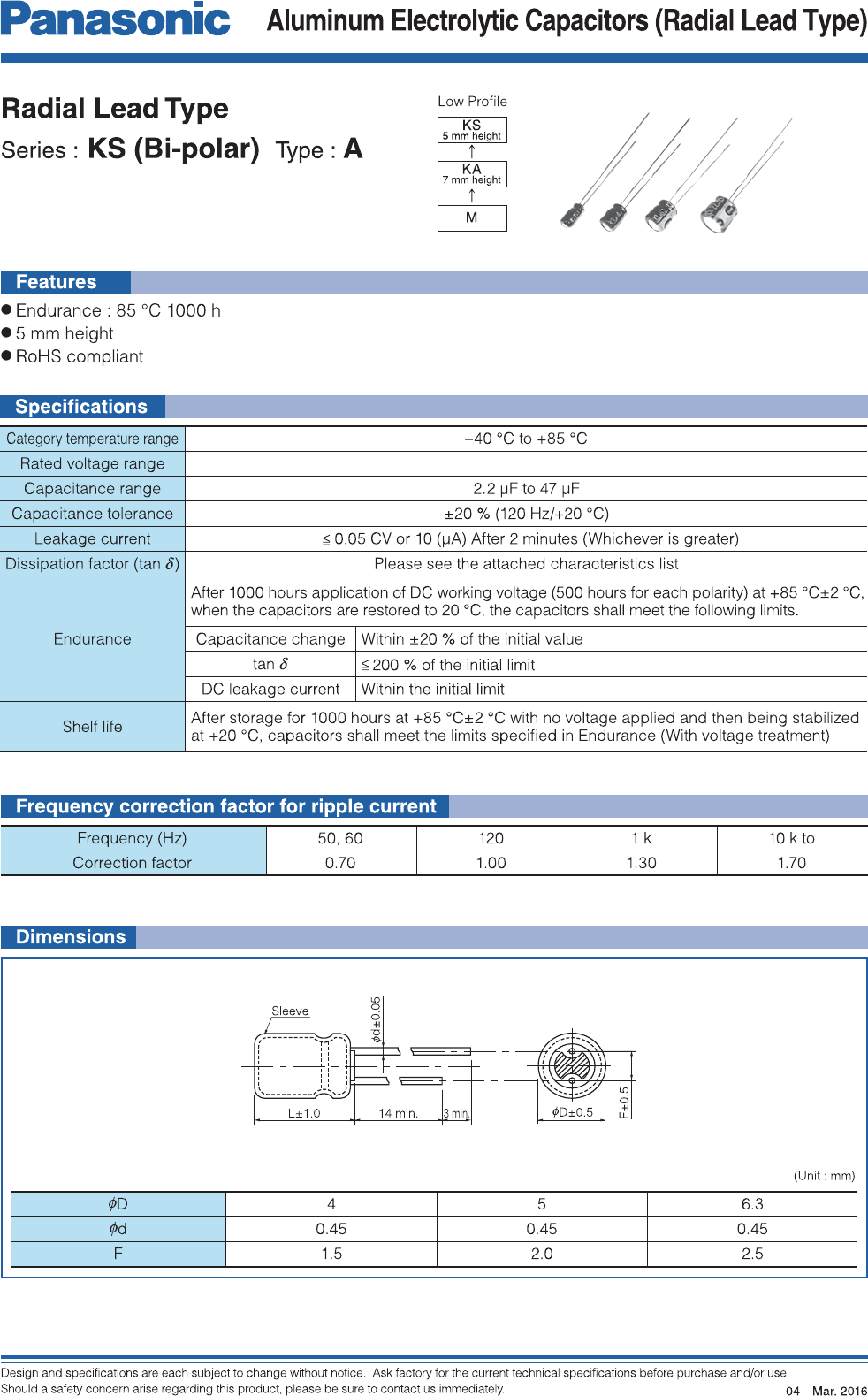

KS/KA series Bi-polar

85 °C

1000 h

M series

85 °C

2000 h

KS/KA series

85 °C

1000 h

EB series

105 °C

5000 h to 10000 h

NHG series

105 °C

1000 h to 2000 h

FC series

105 °C

1000 h to 5000 h

FK series

105 °C

3000 h to 5000 h

FM series

105 °C

2000 h to 7000 h

FP series

105 °C

4000 h to 5000 h

GA series Bi-polar

105 °C

1000 h to 2000 h

HD series

105 °C

1000 h to 2000 h

FR series

105 °C

5000 h to 10000 h

FS series

105 °C

5000 h to 10000 h

EE series

105 °C

8000 h to 10000 h

ED series

105 °C

8000 h to 10000 h

TP series

135 °C/1000 h to 2000 h

125 °C/2000 h to 5000 h

TP series

125 °C

2000 h to 4000 h

HC series

105 °C

3000 h to 5000 h

S series

85 °C

1000 h to 2000 h

EB series

(Large can)

105 °C

3000 h to 5000 h

TK series

125 °C

3000 h

HB series

105 °C

2000 h

HA series

105 °C

1000 h

FC series

105 °C

1000 h

FP series

105 °C

2000 h

FK series

105 °C

2000 h to 5000 h

FKS series

105 °C

2000 h to 5000 h

HB series (5.4 L)

105 °C

2000 h

TQ series

125 °C

2000 h

TC series

125 °C

2000 h to 3000 h

TG series

125 °C

1000 h to 2000 h

HD series

105 °C

5000 h

FT series

105 °C

2000 h to 5000 h

Upgrade

TCU series

125 °C

3000 h

Diagram

Surface mount type

Radial lead type

Jul. 201803

★

★★

★

Panasonic n 'c °c ‘( °( 'C 'c 'c

Capacitance

（μF） Code

Capacitance

（μF） Code

2.2

3.3

4.7

10

22

33

47

100

2R2

3R3

4R7

100

220

330

470

101

220

330

470

1000

2200

3300

4700

6800

221

331

471

102

222

332

472

682

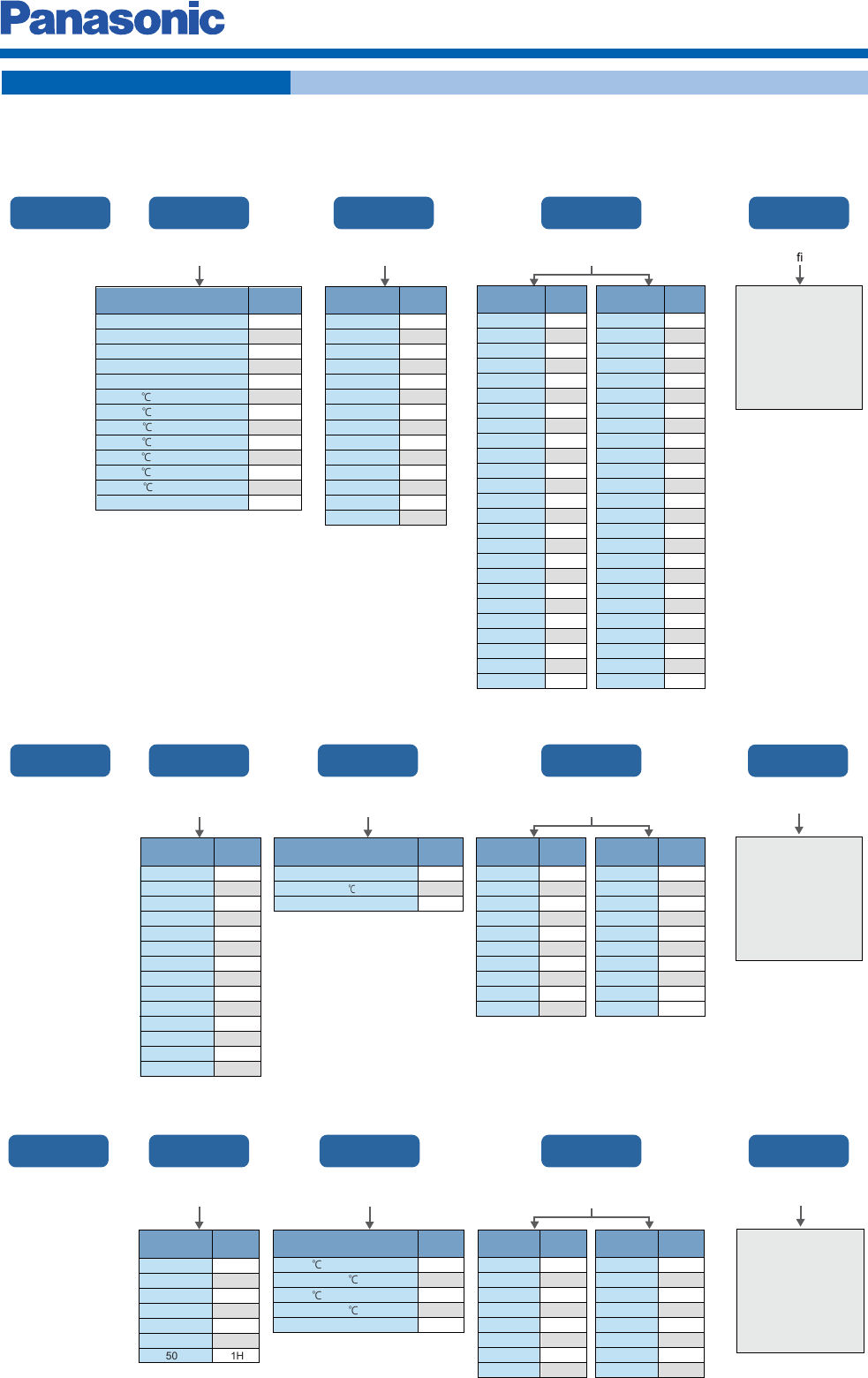

Product classification

３figures

Series code

2

figures

Voltage code

2 figures

Capacitance code

3 figures

Code Series

EE U/A FC

0J 272

◇ Type 1（Series：FC、FK、FM、FR、EB、ED、EE、TA、TP、HD、GA）

Code

Product classification

Series codeVoltage code Capacitance code

ECA 0J HG 101

◇ Type 2（Series：NHG、GA-Bipolar、M）

□

+ B

P

Series code

Voltage code Capacitance code

ECEA 0J N472

FC (105 ℃ 3000 h to 5000 h)

FK (105 ℃ 4000 h to 5000 h)

FM (105 ℃ 4000 h to 7000 h)

FR (105 ℃ 5000 h to 10000 h)

FS (105 ℃ 5000 h to 10000 h)

FP (105 ℃ 4000 h to 5000 h)

EB (105 ℃ 5000 h to 10000 h)

ED (105 ℃ 8000 h to 10000 h)

EE (105 ℃ 8000 h to 10000 h)

TA (125 ℃ 2000 h)

TP (125 ℃ 3000 h to 5000 h)

HD (105 ℃ 2000 h)

GA (105 ℃ 1000 h)

FC

FK

FM

FR

FS

FP

EB

ED

EE

TA

TP

HD

GA

6.3

10

16

25

35

50

63

100

160

200

250

350

400

450

0J

1A

1C

1E

1V

1H

1J

2A

2C

2D

2E

2V

2G

2W

2 figures 1 to２figures 3 figures3 figures

3 figures

1 to 2 figures

2 figures

Rated voltage

（V.DC）

6.3

10

16

25

35

50

63

100

160

200

250

350

400

450

Series

Code

NHG

(105℃ 1000 h to 2000 h)

GA-Bipolar

(105℃ 1000 h to 2000 h)

M (85℃ 2000 h)

HG

EN

M

Code

1

2.2

3.3

4.7

10

22

33

47

100

220

010

2R2

3R3

4R7

100

220

330

470

101

221

Capacitance

（μF） Code

330

470

1000

2200

3300

4700

6800

10000

15000

22000

331

471

102

222

332

472

682

103

153

223

Capacitance

（μF）

Code

Rated voltage

（V.DC）

4

6.3

10

16

25

35

50

Code

Rated voltage

（V.DC）

◇ Type 3（Series：KA、KA-Bipolar、KS、KS-Bipolar、SU-Bipolar）

0J

1A

1C

1E

1V

1H

1J

2A

2C

2D

2E

2V

2G

2W

0D

0J

1A

1C

1E

1V

1H

Product classification

4 figures

Suffix + Taping of forming of terminal code

0 to1 figure

□

+ B

□

+ B

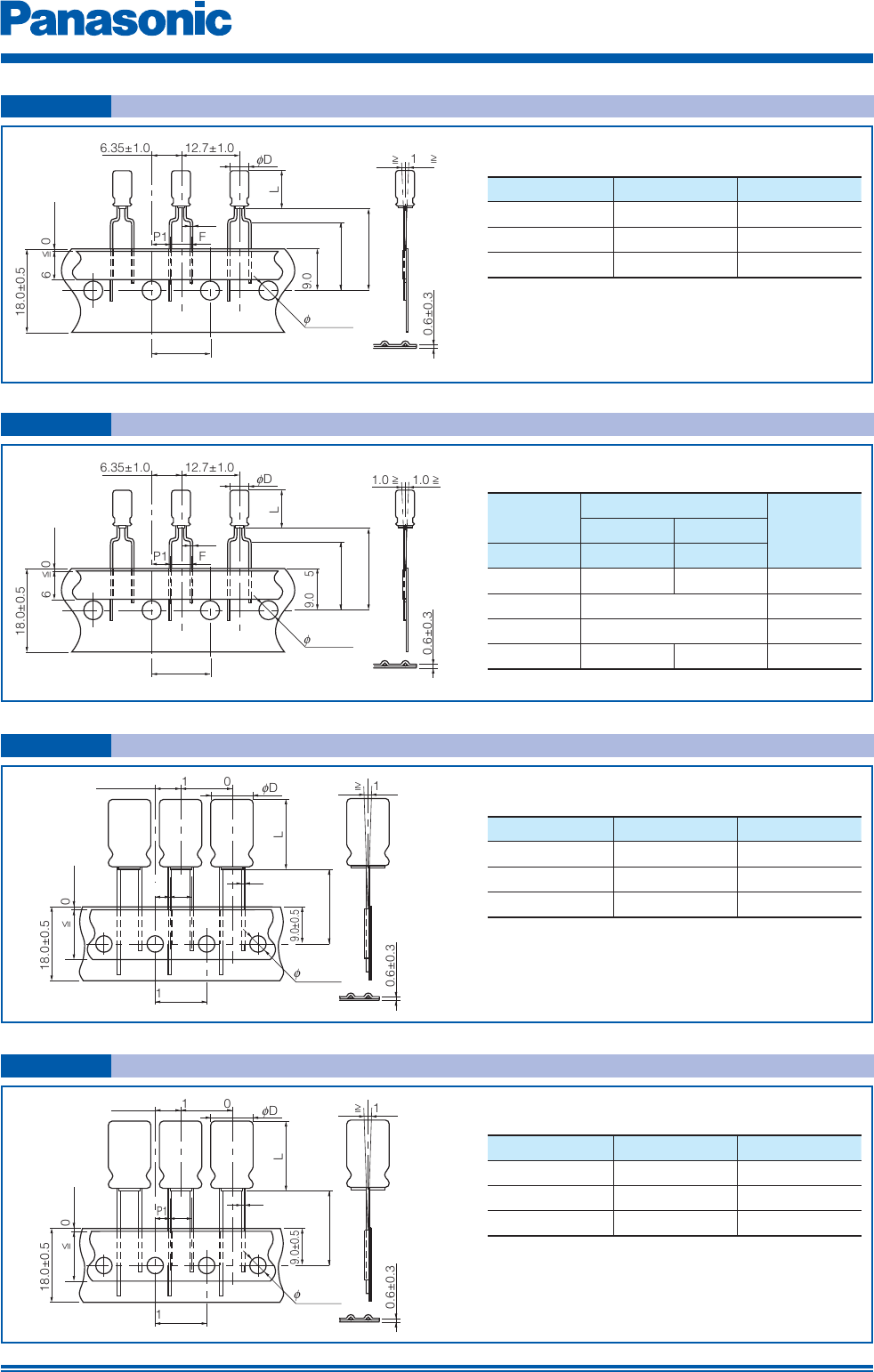

Taping of forming of

terminal code

：Straight

：

Lead forming

：Taping

(Pitch 5.0, 7.5 mm)

：Taping

(Pitch 2.5 mm )

* Blank

* E

* B

* i

Code

1.5

2.2

3.3

4.7

5.6

6.8

10

12

15

18

22

27

33

39

47

56

68

82

100

120

150

180

220

270

330

1R5

2R2

3R3

4R7

5R6

6R8

100

120

150

180

220

270

330

390

470

560

680

820

101

121

151

181

221

271

331

Capacitance

（μF） Code

390

470

510

560

680

820

1000

1200

1500

1600

1800

2000

2200

2700

3300

3900

4700

5100

5600

6800

8200

10000

12000

15000

22000

391

471

511

561

681

821

102

122

152

162

182

202

222

272

332

392

472

512

562

682

822

103

123

153

223

Capacitance

（μF）

KA (85℃ 1000 h)

KA-Bipolar (85℃ 1000 h)

KS (85℃ 1000 h)

KS-Bipolar (85℃ 1000 h)

SU-Bipolar (85℃ 2000 h)

Series Code

KA

KN

KS

SN

N

P

Suffix + Taping of forming of terminal code

0 to 3 figures

Taping of forming of

terminal code

：Straight

：

Lead forming

：Taping

(Pitch 5.0, 7.5 mm)

：Taping

(Pitch 2.5 mm )

* Blank

* E

* B

* i

P

Suffix + Taping of forming of terminal code

0 to２figures

Taping of forming of

terminal code

：Straight

：

Lead forming

：Taping

(Pitch 5.0, 7.5 mm)

：Taping

(Pitch 2.5 mm )

* Blank

* E

* B

* H

Aluminum Electrolytic Capacitors

（Radial lead type）

Part number system

Explanation of part numbers

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

6.35±1.0

f4.0±0.2

1.0 >1.0 >

0.6±0.3

9.0±0.5

F

P1

18.0±0.5

0 to 1.5

6.0 <

12.7±1.0

fd

fD

L

12.7±0.2

16.0±0.5

–0.20

17.50+0.75

6.35±1.0

04.0±0.2

1.0 >1.0 >

9.0±0.5

–0.50

18.50+0.75

F

P1

18.0±0.5

0 to 1.5

6.0 <

12.7±1.0

0d

12.7±0.2

fD

L

0.6±0.3

12.7±0.2

f4.0±0.2

6.35±1.0

F

P1

12.7±1.0

fd

fD

L

18.0±0.5

0 to 1.5

6.0 <

9.0±0.5

18.50+0.75

–0.50

1.0 >1.0 >

0.6±0.3

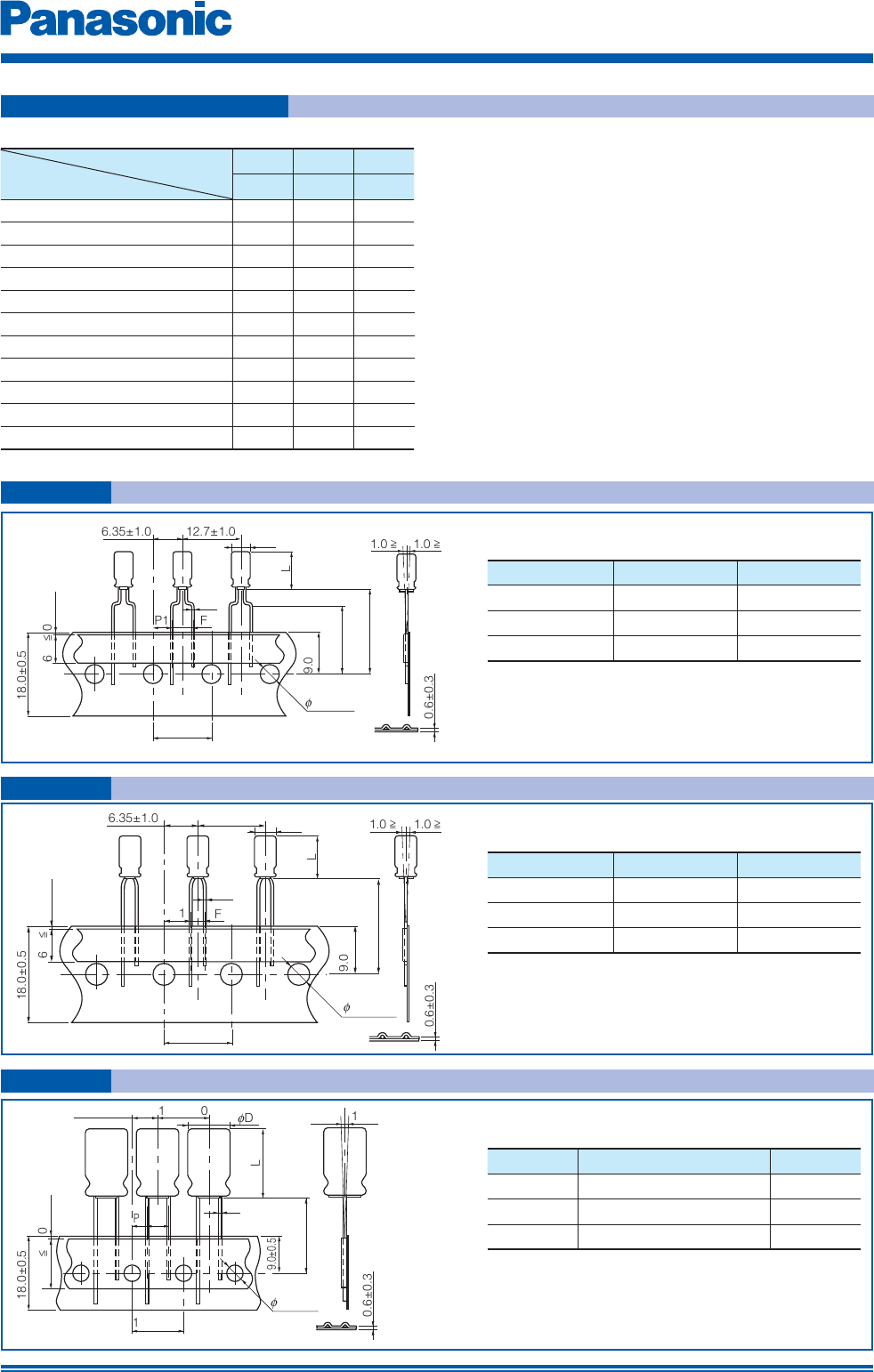

● Dimensions

Lead taping radial lead type

Figure A

Figure B

Figure C

Lead space

(F)

Case size (mm) 0D×L

2.5 mm 5.0 mm 7.5 mm

Figure Figure Figure

4 × 5, 7 B A

5 × 5, 7 B A

6.3 × 5, 7 C A

8 × 5, 7 C E

5 × 11 C D

6.3 × 11.2, 15 C D

8 × 11.5, 15, 20 E

10 × 12.5, 16, 20, 25 F

12.5 × 15, 20, 25 G

16 × 15, 20, 25 H

18 × 15, 20, 25 H

(Lead space: 5.0 mm / 0D×L : 04×5, 7, 05×5, 7, 06.3×5, 7)

(Lead space: 2.5 mm / 0D×L : 04×5, 7, 05×5, 7)

(Lead space: 2.5 mm / 0D×L : 05×11, 06.3×5, 7, 11.2, 15, 08×5, 7)

Unit : mm

Dimensions Nominal Tolerance

0d 0.45 ±0.05

F 2.5 ±0.5

P1 5.1 ±0.5

Unit : mm

Dimensions Nominal Tolerance

0d

0.45 (5×11, 6.3×11.2, 15 : 0.50)

±0.05

F 2.5 ±0.5

P1 5.1 ±0.5

Unit : mm

Dimensions Nominal Tolerance

0d 0.45 ±0.05

F 5.0 +0.8

P1 3.85 ±0.50

–0.2

Mar. 201606

Panasonic 635110 127:10 0D 1‘ Q ~ 12 « 1 4‘7 P11 F ‘ 5811111111189 :3 > *1 1 +1 m S v a g 1_1 11 035110 127110 1021110; 1B0 05 5 m é 1+ 1 9 90 5 06103 180105 180105

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

6.35±1.0

f4.0±0.2

1.0 >1.0 >

9.0±0.5

16.0±0.5

F

P1

18.0±0.5

0 to 1.5

6.0 <

12.7±1.0

fd

–0.50

18.50+0.75

12.7±0.2

fD

L

0.6±0.3

6.35±1.0

f4.0±0.2

1.0 >1.0 >

9.0±0.5

16.0±0.5

F

P1

18.0±0.5

0 to 1.5

6.0 <

12.7±1.0

fd

H

12.7±0.2

fD

L

0.6±0.3

12.7±0.2

f4.0±0.2

6.35±1.0 12.7±1.0

fd

18.0±0.5

0 to 1.5

6.0 <

9.0±0.5

18.50+0.75

–0.50

1.0 >1.0 >

fD

L

0.6±0.3

F

P1

15.0±0.2

f4.0±0.2

7.5±1.0

F

P1

15.0±1.0

fd

18.0±0.5

0 to 1.5

6.0 <

9.0±0.5

18.50+0.75

–0.50

1.0 >1.0 >

fD

L

0.6±0.3

Unit : mm

Dimensions Nominal Tolerance

0d 0.50 ±0.05

F 5.0 +0.8

P1 3.85 ±0.50

Dimensions Nominal

Tolerance

08×11.5 to 20

08×5, 7

Suffi x code B BQ

0d 0.60 0.45 ±0.05

F 5.0 +0.8

P1 3.85 ±0.50

H 20.00 18.50 +0.75

–0.50

Dimensions Nominal Tolerance

0d 0.60 ±0.05

F 5.0 +0.8

P1 3.85 ±0.50

Dimensions Nominal Tolerance

0d 0.60 ±0.05

F 5.0 +0.8

P1 5.0 ±0.5

Figure D

Figure E

Figure F

Figure G

(Lead space: 5 mm / 0D×L : 05×11, 06.3×11.2, 15)

(Lead space: 5 mm / 0D×L : 08×5, 7, 11.5, 15, 20)

(Lead space: 5 mm / 0D×L : 010×12.5, 16, 20, 25)

(Lead space: 5 mm / 0D×L : 012.5×15, 20, 25)

–0.2

Mar. 201606

Panasonic 3 «M W» $1M 50:05 150:02

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

fd

0.6±0.3

7.5±1.0 30.0±1.0

P1 F

2.0 >2.0 >

15.0±0.2

L

fD

18.0±0.5

0 to 1.5

6.0 <

f4.0±0.2

1.3 >1.3 >

9.0±0.5

18.50+0.75

–0.50

c

a

b

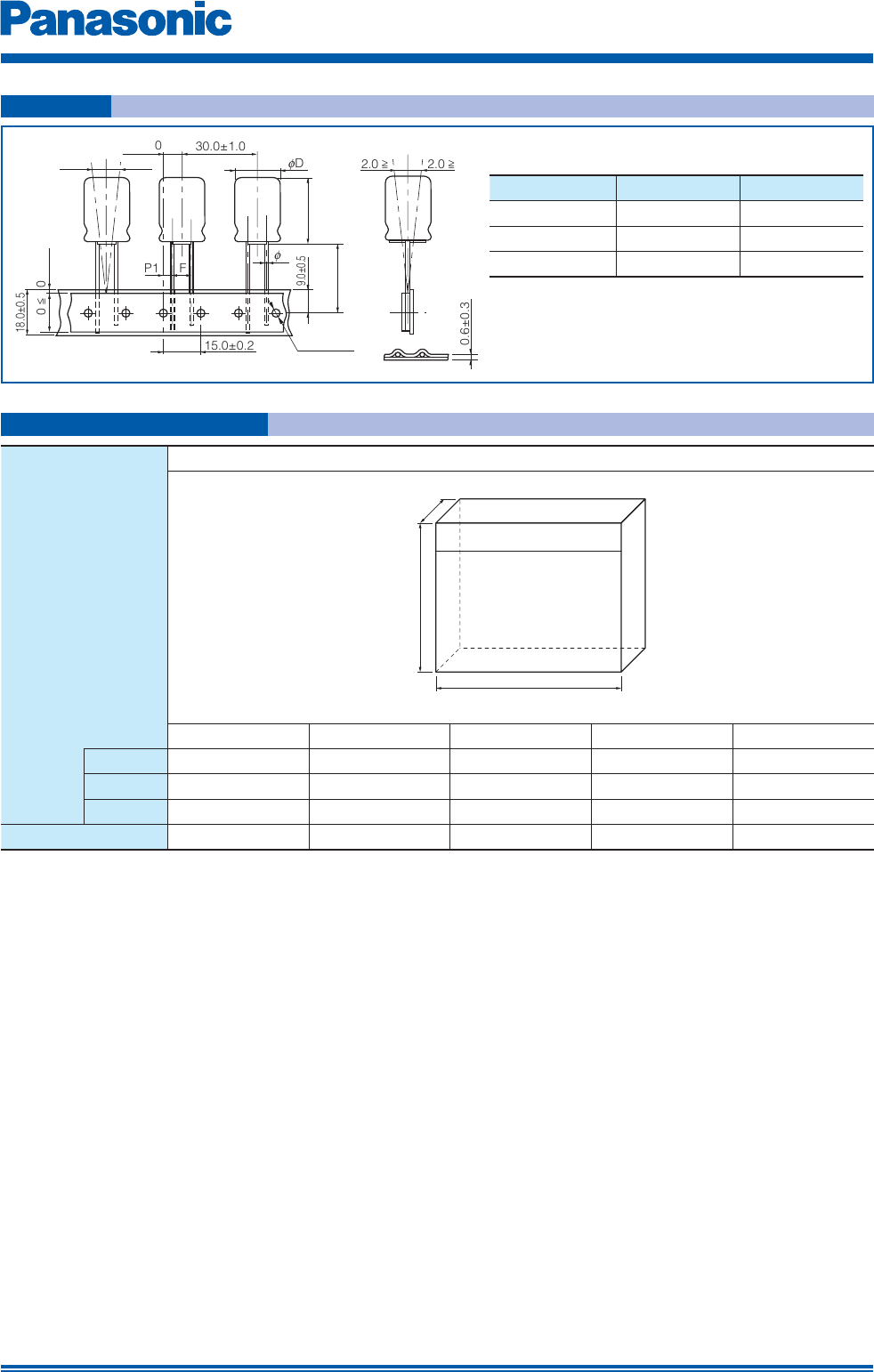

Figure H

Packaging Specifi cations

(Lead space: 7.5 mm / 0D×L : 016×15, 20, 25, 018×15, 20, 25)

Dimensions

Dimensions of outer carton box

04 to 0506.3 08010, 012.5 016, 018

a 340 max. 340 max. 340 max. 340 max. 340 max.

b to 55 max. to 55 max. to 55 max. 55 to 66 max. 62 to 75 max.

c 170 to 210 max. 270 max. 230 max. 170 to 270 max. 225 to 310 max.

Packaging Quantity 2000 pcs. 2000 pcs. 1000 pcs. 500 pcs. 250 pcs.

Unit : mm

Dimensions Nominal Tolerance

0d 0.80 ±0.05

F 7.5 ±0.5

P1 3.75 ±0.50

Unit : mm

Mar. 201606

Panasonic H3 H1 H2 [magi 1.1 :1 9 H1 W m

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

P

H3

F

0d

H1

H2

E

✽

F

0d

H1

H2

PE

✽

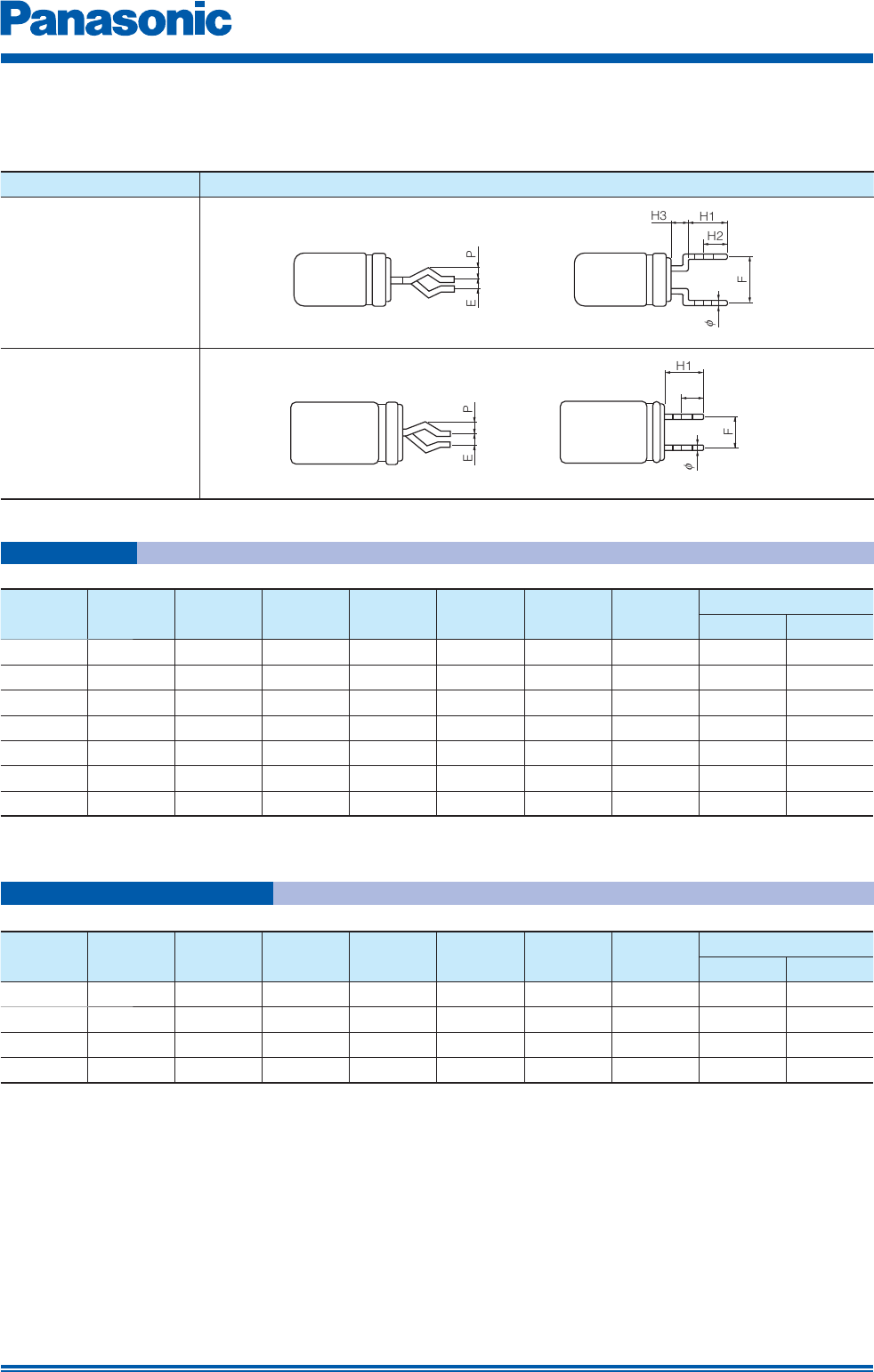

Lead Forming Type (Snap-in)

Lead formed Aluminium Electrolytic Capacitor for self mounting, for rationalization and upgrade of soldering process.

0D Dimensions

4, 5, 6.3, 8

10, 12.5, 16, 18

✽ Direction of bending shape is not specifi ed

0D H1±0.5 H2 H3 F±0.5 P E max. 0dfor PWB

hole dia. 0thick ness

5 4.5 2.7 2.5 5.0 1.0 1.0 0.5 0.9 1.6

6.3 4.5 2.7 2.5 5.0 1.0 1.0 0.5 1.0 1.6

8 4.5 2.7 2.5 5.0 1.0 1.0 0.6 1.0 1.6

10 4.5 2.7 – 5.0 1.0 1.0 0.6 1.0 1.6

12.5 4.5 2.7 – 5.0 1.0 / 0.9 1.0 0.6 / 0.8 1.0 / 1.1 1.6

16 4.5 2.7 – 7.5 0.9 1.0 0.8 1.1 1.6

18 4.5 2.7 – 7.5 0.9 1.0 0.8 1.1 1.6

0D H1±0.5 H2 H3±0.3 F±0.5 P E max. 0dfor PWB

hole dia. 0thick ness

4 4.5 2.7 1.5 5.0 0.95 1.0 0.45 0.9 1.6

5 4.5 2.7 1.5 5.0 0.95 1.0 0.45 0.9 1.6

6.3 4.5 2.7 1.5 5.0 0.95 1.0 0.45 0.9 1.6

8 4.5 2.7 1.5 5.0 0.95 1.0 0.45 0.9 1.6

Unit : mm

Dimensions

Series KA/KS Dimensions

Mar. 201606

Panasonic Sleeve 14mm 3mm

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

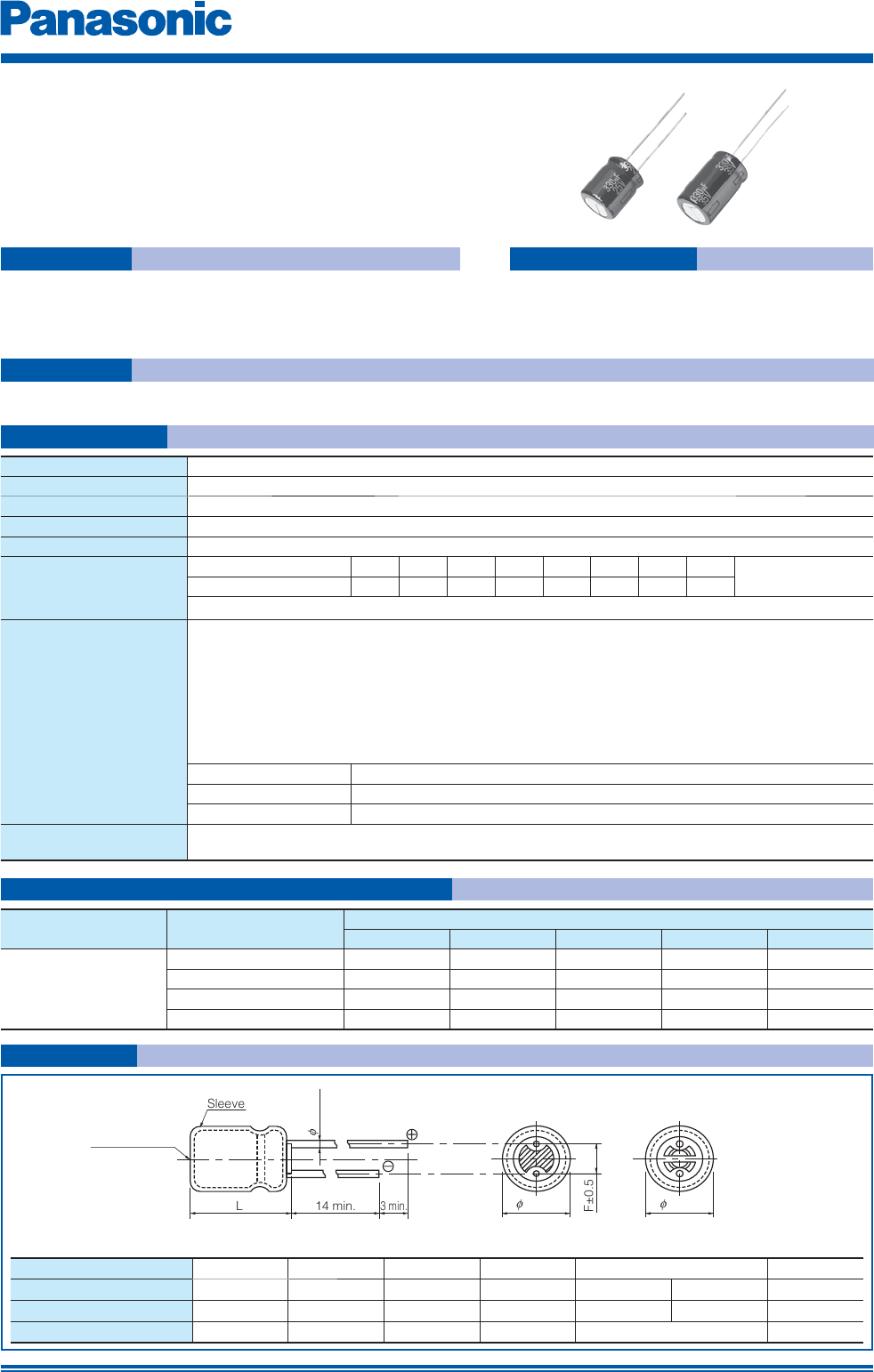

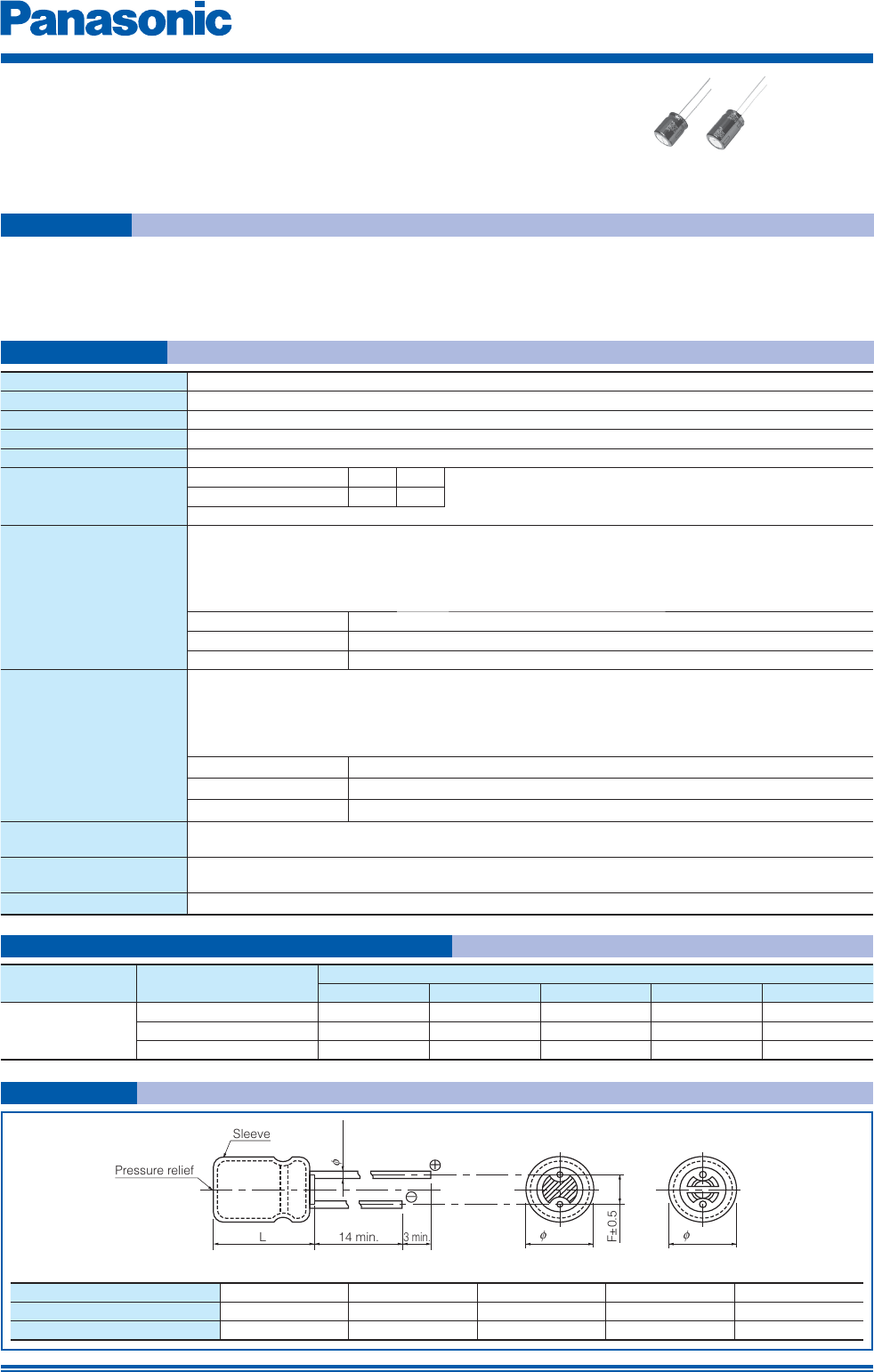

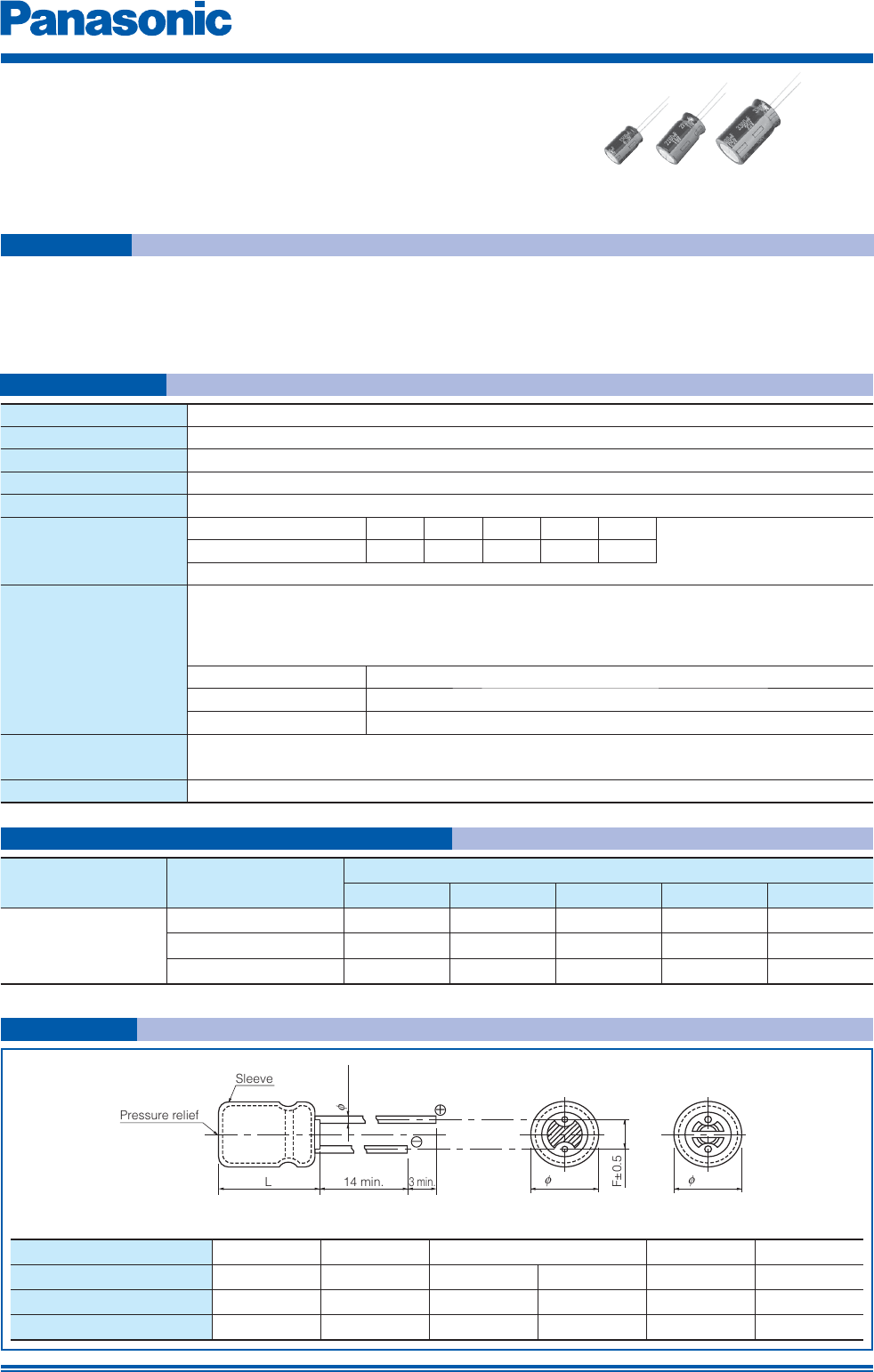

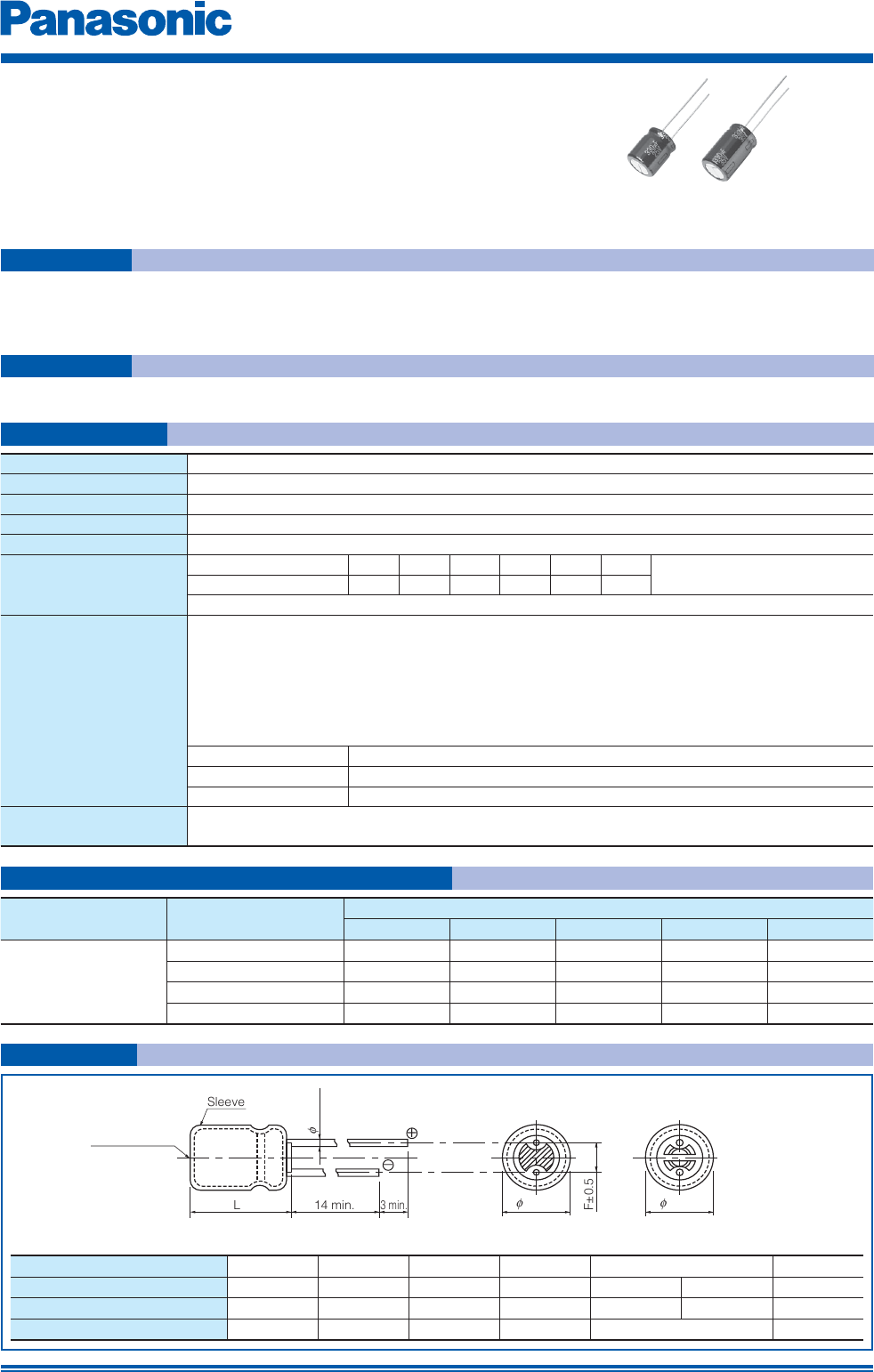

Aluminum Electrolytic Capacitors (Radial Lead Type)

010 <

Sleeve

14 min.

3 min.

L✽

✽ L < 16 : L±1.5

L > 20 : L±2.0

Pressure relief

06.3 <+

–

< 08

0D±0.5

F±0.5

0D±0.5

fd±0.05

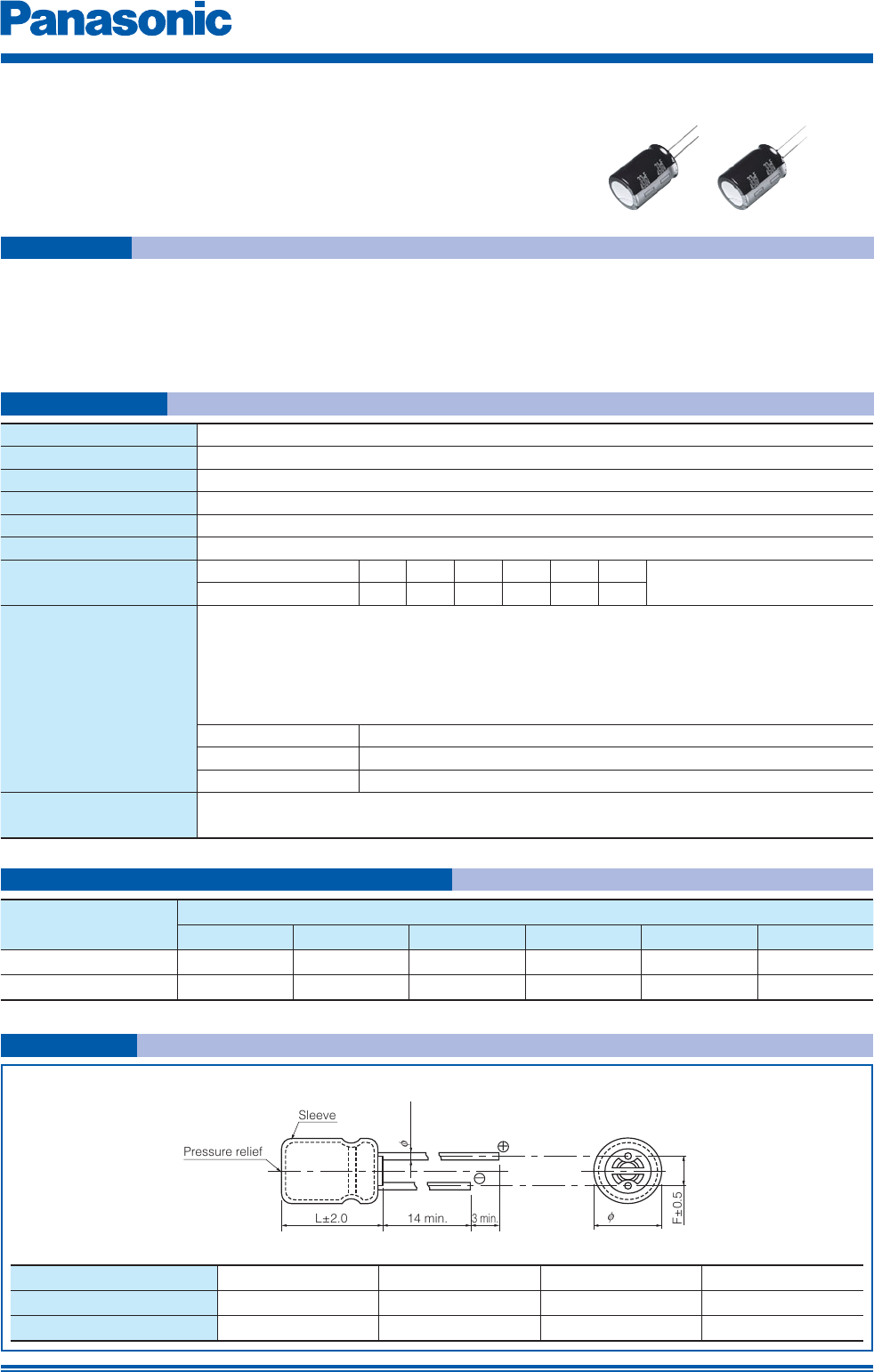

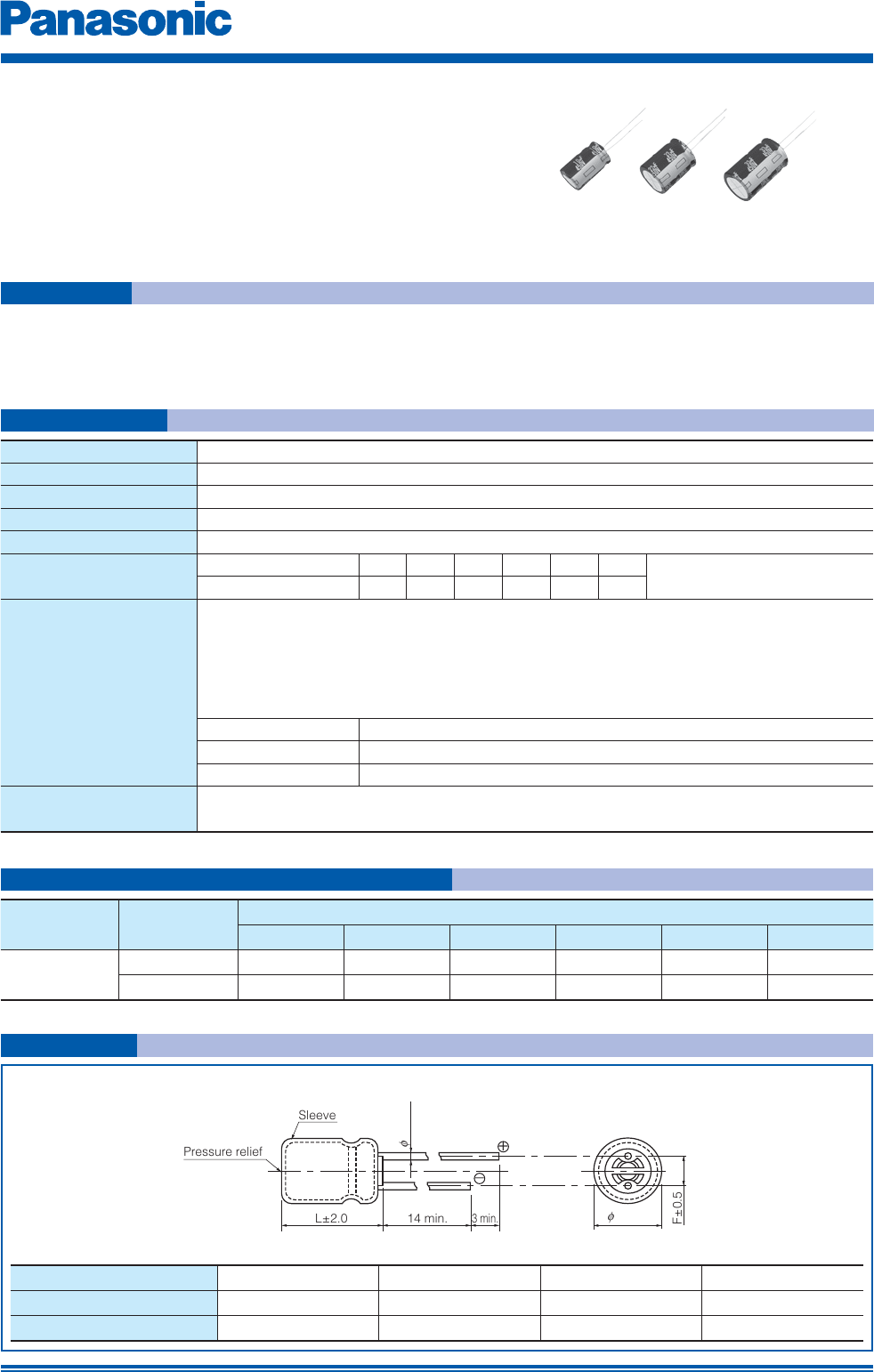

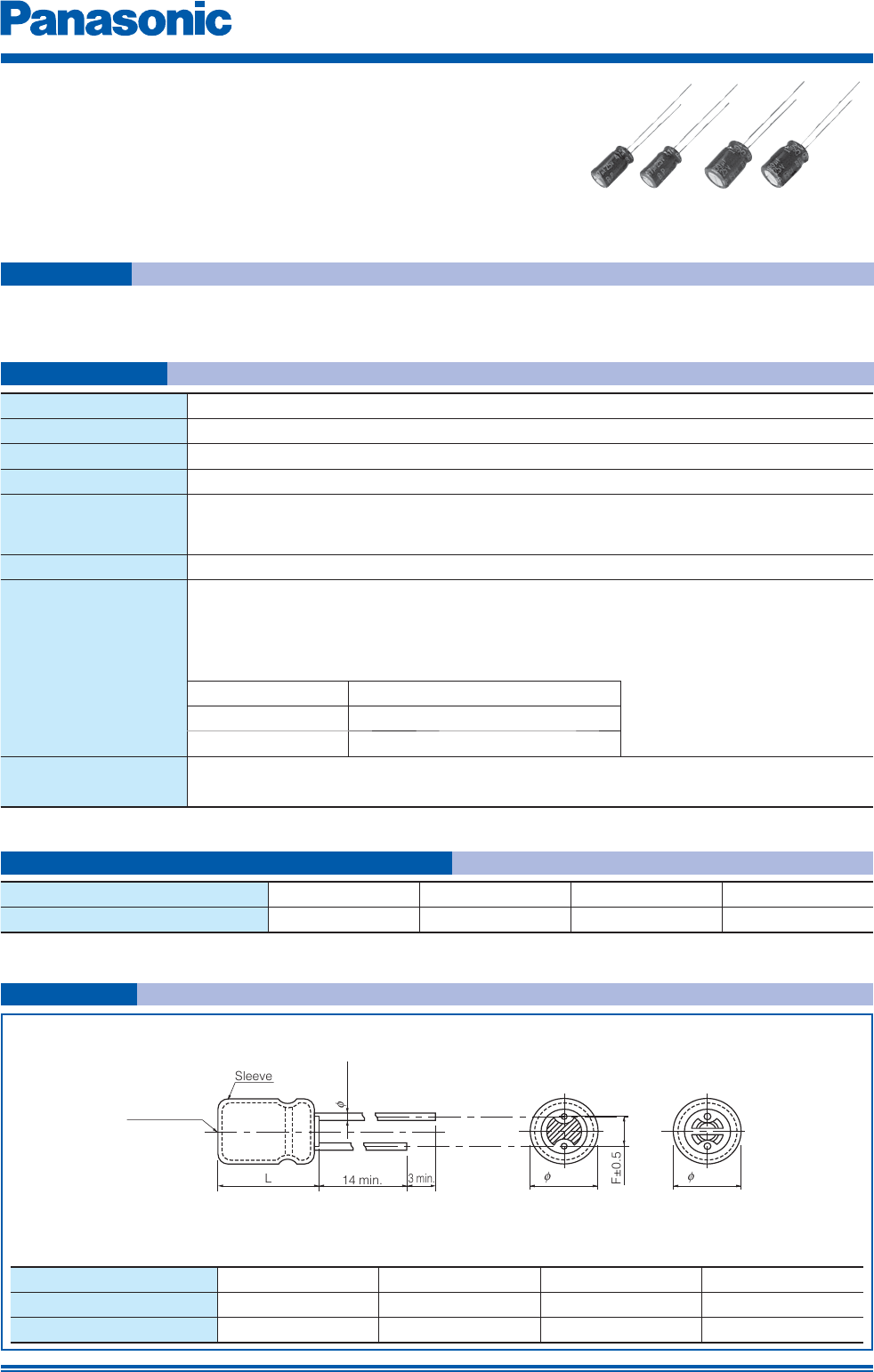

● Low ESR (Same as FM Series)

● Endurance : 105 °C 5000 h to 10000 h

● RoHS compliant

● Malaysia

● Not applicable for automotive

Features Country of origin

Attention

Radial Lead Type

Series : FR Type : A

Frequency correction factor for ripple current

Dimensions

Specifi cations

Category temperature range

–40 °C to +105 °C

Rated voltage range 6.3 V.DC to 100 V.DC

Capacitance range 4.7 µF to 8200 µF

Capacitance tolerance ±20 % (120 Hz/+20 °C)

Leakage current I < 0.01 CV (µA) After 2 minutes

Dissipation factor

(tan d)

V.DC 6.3 10 16 25 35 50 63 100 (120 Hz/+20 °C)

tan d0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08

Add 0.02 per 1000 µF for products of 1000 µF or more.

Endurance

After following life test with DC voltage and +105 °C±2 °C ripple current value applied. (The sum

of DC and ripple peak voltage shall not exceed the rated working voltage) when the capacitors

are restored to 20 °C, the capacitors shall meet the limits specifi ed below.

Duration

05×11/ 06.3×11.2 : 5000 hours

08×11.5/ 010×12.5 : 6000 hours (✽ Only EEUFR1V331U (010×12.5) 5000 hours)

08×15/ 010×16 : 8000 hours, 08×20 : 9000 hours

010×20 to 010×25/ 012.5×20 to 012.5×35/ 016×20 to 016×25 : 10000 hours

Capacitance change Within ±25 % of the initial value (6.3 V.DC to 10 V.DC : ±30 %)

tan d< 200 % of the initial limit

DC leakage current Within the initial limit

Shelf life After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits specifi ed in Endurance. (With voltage treatment)

Rated voltage (V.DC) Capacitance (µF) Frequency (Hz)

60 120 1 k 10 k 100 k

6.3 to 100

4.7 to 33 0.45 0.55 0.75 0.90 1.00

47 to 330 0.60 0.70 0.85 0.95 1.00

390 to 1000 0.65 0.75 0.90 0.98 1.00

1200 to 8200 0.75 0.80 0.95 1.00 1.00

0D56.381012.516

L ————12.5 to 2530 to 35—

0d 0.5 0.5 0.6 0.6 0.6 0.8 0.8

F 2.0 2.5 3.5 5.0 5.0 7.5

(Unit : mm)

Mar. 201607

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Case size/ Impedance/ Ripple current

Rated voltage

(V.DC) 6.3 V.DC to 35 V.DC 50 V.DC

Case size

(mm)

(0D×L)

Imped ance

(Ω/100 kHz)

Ripple current

(mA r.m.s./100 kHz)

Imped ance

(Ω/100 kHz)

Ripple current

(mA r.m.s./100 kHz)

+20 °C –10 °C +105 °C +20 °C –10 °C +105 °C

5 × 11 0.300 1.000 280 0.340 1.130 250

6.3 × 11.2 0.130 0.430 455 0.140 0.460 405

8 × 11.5 0.056 0.168 950 0.061 0.183 870

8 × 15 0.041 0.123 1240 0.045 0.135 1140

8 × 20 0.030 0.090 1560 0.033 0.099 1430

10 × 12.5 0.043 0.114 1290 0.042 0.126 1170

10 × 16 0.028 0.078 1790 0.030 0.090 1650

10 × 20 0.020 0.057 2180 0.023 0.069 1890

10 × 25 0.018 0.054 2470 0.022 0.066 2150

12.5 × 20 0.018 0.045 2600 0.022 0.055 2260

12.5 × 25 0.015 0.038 3190 0.018 0.045 2660

12.5 × 30 0.013 0.033 3630 0.016 0.040 3160

12.5 × 35 0.012 0.030 3750 0.014 0.035 3270

16 × 20 0.017 0.043 3300 0.019 0.048 2870

16 × 25 0.014 0.035 3820 0.016 0.040 3320

Rated voltage

(V.DC) 63 V.DC

Case size

(mm)

(0D×L)

Imped ance

(Ω/100 kHz)

Ripple current

(mA r.m.s./100 kHz)

+20 °C –10 °C +105 °C

5 × 11 0.510 2.040 175

6.3 × 11.2 0.210 0.840 284

8 × 11.5 0.092 0.368 566

8 × 15 0.068 0.272 741

8 × 20 0.050 0.200 930

10 × 12.5 0.063 0.252 761

10 × 16 0.045 0.180 1073

10 × 20 0.035 0.140 1229

10 × 25 0.033 0.132 1500

12.5 × 20 0.033 0.125 1582

12.5 × 25 0.027 0.092 1995

12.5 × 30 0.024 0.082 2528

12.5 × 35 0.021 0.071 2780

16 × 20 0.029 0.093 2153

16 × 25 0.024 0.074 2988

Rated voltage

(V.DC) 100 V.DC

Case size

(mm)

(0D×L)

Imped ance

(Ω/100 kHz)

Ripple current

(mA r.m.s./100 kHz)

+20 °C –10 °C +105 °C

10 × 20 0.084 0.336 1500

Mar. 201607

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

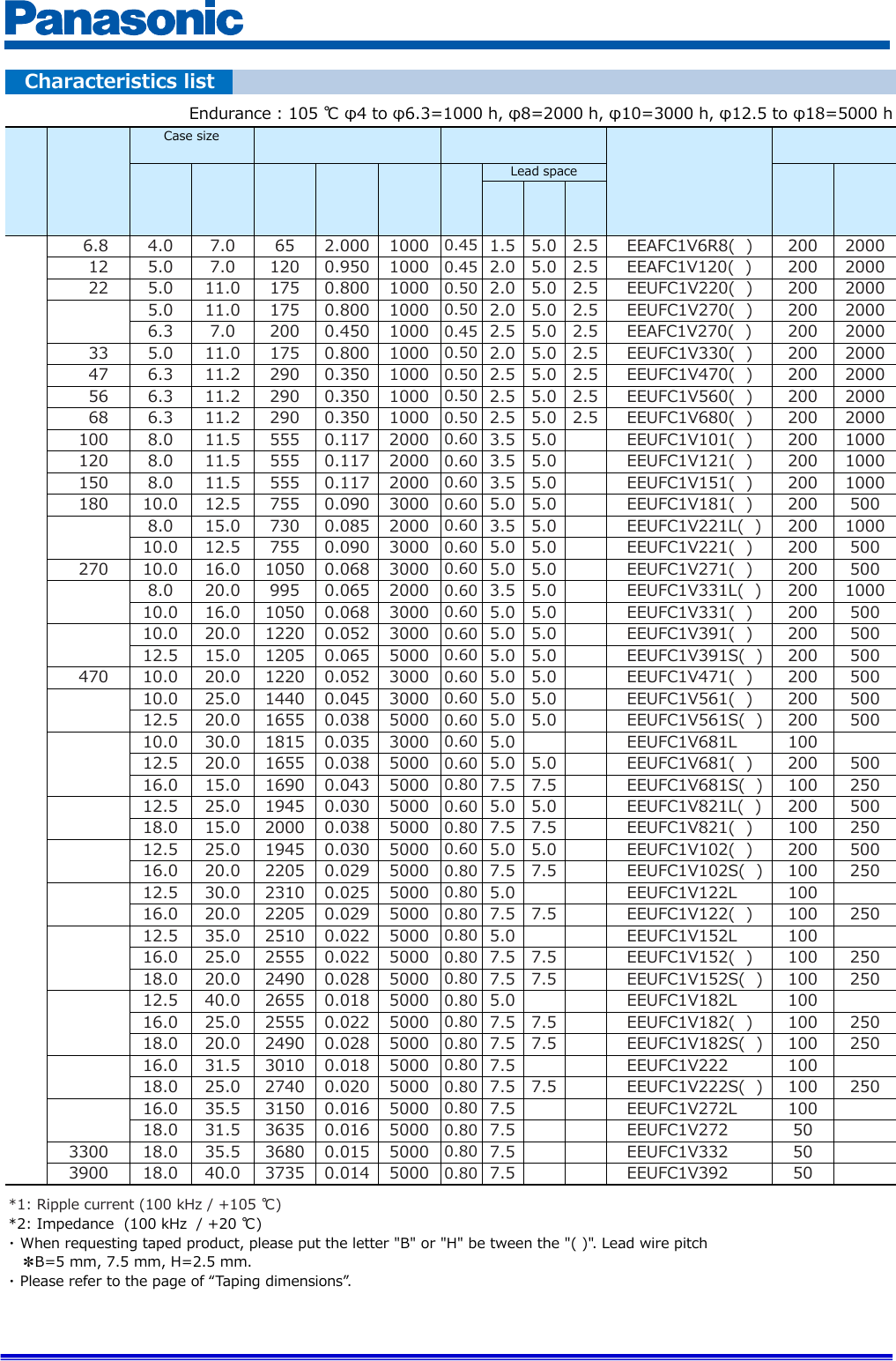

Characteristics list

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(100 kHz)

(+105 °C)

(mA r.m.s.)

Impedance

(100 kHz)

(+20 °C)

(Ω)

Endurance

(hours)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

Taping

✽H

6.3

150 5 11 280 0.300 5000 0.5 2.0 5.0 2.5 EEUFR0J151( ) 200 2000

220 6.3 11.2 455 0.130 5000 0.5 2.5 5.0 2.5 EEUFR0J221( ) 200 2000

330 6.3 11.2 455 0.130 5000 0.5 2.5 5.0 2.5 EEUFR0J331( ) 200 2000

470 6.3 11.2 455 0.130 5000 0.5 2.5 5.0 2.5 EEUFR0J471( ) 200 2000

820 8 11.5 950 0.056 6000 0.6 3.5 5.0 EEUFR0J821( ) 200 1000

1000 8 11.5 950 0.056 6000 0.6 3.5 5.0 EEUFR0J102( ) 200 1000

1200 8 15 1240 0.041 8000 0.6 3.5 5.0 EEUFR0J122L( ) 200 1000

10 12.5 1290 0.043 6000 0.6 5.0 5.0 EEUFR0J122( ) 200 500

1500 8 20 1560 0.030 9000 0.6 3.5 5.0 EEUFR0J152L( ) 200 1000

1800 10 16 1790 0.028 8000 0.6 5.0 5.0 EEUFR0J182( ) 200 500

2200 10 20 2180 0.020 10000 0.6 5.0 5.0 EEUFR0J222( ) 200 500

2700 10 25 2470 0.018 10000 0.6 5.0 5.0 EEUFR0J272L( ) 200 500

3300 10 25 2470 0.018 10000 0.6 5.0 5.0 EEUFR0J332L( ) 200 500

3900 12.5 20 2600 0.018 10000 0.6 5.0 5.0 EEUFR0J392( ) 200 500

4700 12.5 25 3190 0.015 10000 0.6 5.0 5.0 EEUFR0J472( ) 200 500

5600 12.5 30 3630 0.013 10000 0.8 5.0 EEUFR0J562L 100

6800 12.5 35 3750 0.012 10000 0.8 5.0 EEUFR0J682L 100

16 20 3300 0.017 10000 0.8 7.5 7.5 EEUFR0J682S( ) 100 250

8200 16 25 3820 0.014 10000 0.8 7.5 7.5 EEUFR0J822( ) 100 250

10

100 5 11 280 0.300 5000 0.5 2.0 5.0 2.5 EEUFR1A101( ) 200 2000

150 5 11 280 0.300 5000 0.5 2.0 5.0 2.5 EEUFR1A151( ) 200 2000

220 6.3 11.2 455 0.130 5000 0.5 2.5 5.0 2.5 EEUFR1A221( ) 200 2000

270 6.3 11.2 455 0.130 5000 0.5 2.5 5.0 2.5 EEUFR1A271( ) 200 2000

470 8 11.5 950 0.056 6000 0.6 3.5 5.0 EEUFR1A471( ) 200 1000

680 8 11.5 950 0.056 6000 0.6 3.5 5.0 EEUFR1A681( ) 200 1000

820 10 12.5 1290 0.043 6000 0.6 5.0 5.0 EEUFR1A821( ) 200 500

1000 10 16 1790 0.028 8000 0.6 5.0 5.0 EEUFR1A102( ) 200 500

8 15 1240 0.041 8000 0.6 3.5 5.0 EEUFR1A102L( ) 200 1000

1500 8 20 1560 0.030 9000 0.6 3.5 5.0 EEUFR1A152L( ) 200 1000

10 16 1790 0.028 8000 0.6 5.0 5.0 EEUFR1A152( ) 200 500

1800 10 20 2180 0.020 10000 0.6 5.0 5.0 EEUFR1A182( ) 200 500

2200 10 25 2470 0.018 10000 0.6 5.0 5.0 EEUFR1A222L( ) 200 500

3300 12.5 20 2600 0.018 10000 0.6 5.0 5.0 EEUFR1A332( ) 200 500

3900 12.5 25 3190 0.015 10000 0.6 5.0 5.0 EEUFR1A392( ) 200 500

4700 12.5 30 3630 0.013 10000 0.8 5.0 EEUFR1A472L 100

16 20 3300 0.017 10000 0.8 7.5 7.5 EEUFR1A472S( ) 100 250

5600 12.5 35 3750 0.012 10000 0.8 5.0 EEUFR1A562L 100

6800 12.5 35 3750 0.012 10000 0.8 5.0 EEUFR1A682L 100

16 25 3820 0.014 10000 0.8 7.5 7.5 EEUFR1A682( ) 100 250

· When requesting taped product, please put the letter "B" or "H" be tween the "( )". Lead wire pitch ✽B=5 mm, 7.5 mm, H=2.5 mm.

· Please refer to the page of “Taping dimensions”.

Mar. 201607

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(100 kHz)

(+105 °C)

(mA r.m.s.)

Impedance

(100 kHz)

(+20 °C)

(Ω)

Endurance

(hours)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

Taping

✽H

16

68 5 11 280 0.300 5000 0.5 2.0 5.0 2.5 EEUFR1C680( ) 200 2000

100 5 11 280 0.300 5000 0.5 2.0 5.0 2.5 EEUFR1C101( ) 200 2000

120 6.3 11.2 455 0.130 5000 0.5 2.5 5.0 2.5 EEUFR1C121( ) 200 2000

220 6.3 11.2 455 0.130 5000 0.5 2.5 5.0 2.5 EEUFR1C221( ) 200 2000

470 8 11.5 950 0.056 6000 0.6 3.5 5.0 EEUFR1C471( ) 200 1000

680 8 15 1240 0.041 8000 0.6 3.5 5.0 EEUFR1C681L( ) 200 1000

10 12.5 1290 0.043 6000 0.6 5.0 5.0 EEUFR1C681( ) 200 500

1000 8 20 1560 0.030 9000 0.6 3.5 5.0 EEUFR1C102L( ) 200 1000

10 16 1790 0.028 8000 0.6 5.0 5.0 EEUFR1C102( ) 200 500

1500 10 20 2180 0.020 10000 0.6 5.0 5.0 EEUFR1C152( ) 200 500

10 25 2470 0.018 10000 0.6 5.0 5.0 EEUFR1C152L( ) 200 500

1800 10 25 2470 0.018 10000 0.6 5.0 5.0 EEUFR1C182L( ) 200 500

2200 12.5 20 2600 0.018 10000 0.6 5.0 5.0 EEUFR1C222( ) 200 500

2700 12.5 25 3190 0.015 10000 0.6 5.0 5.0 EEUFR1C272( ) 200 500

3300 12.5 30 3630 0.013 10000 0.8 5.0 EEUFR1C332L 100

16 20 3300 0.017 10000 0.8 7.5 7.5 EEUFR1C332S( ) 100 250

3900 12.5 35 3750 0.012 10000 0.8 5.0 EEUFR1C392L 100

16 20 3300 0.017 10000 0.8 7.5 7.5 EEUFR1C392S( ) 100 250

4700 12.5 35 3750 0.012 10000 0.8 5.0 EEUFR1C472L 100

16 25 3820 0.014 10000 0.8 7.5 7.5 EEUFR1C472( ) 100 250

5600 16 25 3820 0.014 10000 0.8 7.5 7.5 EEUFR1C562( ) 100 250

25

47 5 11 280 0.300 5000 0.5 2.0 5.0 2.5 EEUFR1E470( ) 200 2000

68 5 11 280 0.300 5000 0.5 2.0 5.0 2.5 EEUFR1E680( ) 200 2000

100 6.3 11.2 455 0.130 5000 0.5 2.5 5.0 2.5 EEUFR1E101( ) 200 2000

150 6.3 11.2 455 0.130 5000 0.5 2.5 5.0 2.5 EEUFR1E151( ) 200 2000

220 8 11.5 950 0.056 6000 0.6 3.5 5.0 EEUFR1E221( ) 200 1000

330 8 11.5 950 0.056 6000 0.6 3.5 5.0 EEUFR1E331( ) 200 1000

390 8 15 1240 0.041 8000 0.6 3.5 5.0 EEUFR1E391L( ) 200 1000

470

8 15 1240 0.041 8000 0.6 3.5 5.0 EEUFR1E471Y( ) 200 1000

8 20 1560 0.030 9000 0.6 3.5 5.0 EEUFR1E471L( ) 200 1000

10 12.5 1290 0.043 6000 0.6 5.0 5.0 EEUFR1E471( ) 200 500

560 8 20 1560 0.030 9000 0.6 3.5 5.0 EEUFR1E561L( ) 200 1000

680 8 20 1560 0.030 9000 0.6 3.5 5.0 EEUFR1E681L( ) 200 1000

10 16 1790 0.028 8000 0.6 5.0 5.0 EEUFR1E681( ) 200 500

820 10 20 2180 0.020 10000 0.6 5.0 5.0 EEUFR1E821( ) 200 500

1000 10 20 2180 0.020 10000 0.6 5.0 5.0 EEUFR1E102( ) 200 500

10 25 2470 0.018 10000 0.6 5.0 5.0 EEUFR1E102L( ) 200 500

1200 10 25 2470 0.018 10000 0.6 5.0 5.0 EEUFR1E122L( ) 200 500

1500 12.5 20 2600 0.018 10000 0.6 5.0 5.0 EEUFR1E152( ) 200 500

1800 12.5 25 3190 0.015 10000 0.6 5.0 5.0 EEUFR1E182( ) 200 500

16 20 3300 0.017 10000 0.8 7.5 7.5 EEUFR1E182S( ) 100 250

2200 12.5 30 3630 0.013 10000 0.8 5.0 EEUFR1E222L 100

16 20 3300 0.017 10000 0.8 7.5 7.5 EEUFR1E222S( ) 100 250

2700 12.5 35 3750 0.012 10000 0.8 5.0 EEUFR1E272L 100

16 20 3300 0.017 10000 0.8 7.5 7.5 EEUFR1E272S( ) 100 250

3300 16 25 3820 0.014 10000 0.8 7.5 7.5 EEUFR1E332( ) 100 250

· When requesting taped product, please put the letter "B" or "H" be tween the "( )". Lead wire pitch ✽B=5 mm, 7.5 mm, H=2.5 mm.

· Please refer to the page of “Taping dimensions”.

Mar. 201607

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(100 kHz)

(+105 °C)

(mA r.m.s.)

Impedance

(100 kHz)

(+20 °C)

(Ω)

Endurance

(hours)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

Taping

✽H

35

33 5 11 280 0.300 5000 0.5 2.0 5.0 2.5 EEUFR1V330( ) 200 2000

68 6.3 11.2 455 0.130 5000 0.5 2.5 5.0 2.5 EEUFR1V680( ) 200 2000

100 8 11.5 950 0.056 6000 0.6 3.5 5.0 EEUFR1V101( ) 200 1000

180 8 11.5 950 0.056 6000 0.6 3.5 5.0 EEUFR1V181( ) 200 1000

220 8 11.5 950 0.056 6000 0.6 3.5 5.0 EEUFR1V221( ) 200 1000

270 8 15 1240 0.041 8000 0.6 3.5 5.0 EEUFR1V271L( ) 200 1000

10 12.5 1290 0.043 6000 0.6 5.0 5.0 EEUFR1V271( ) 200 500

330 10 12.5 1330 0.043 5000 0.6 5.0 5.0 EEUFR1V331U( ) 200 500

390 8 20 1560 0.030 9000 0.6 3.5 5.0 EEUFR1V391L( ) 200 1000

470 8 20 1560 0.030 9000 0.6 3.5 5.0 EEUFR1V471L( ) 200 1000

10 16 1790 0.028 8000 0.6 5.0 5.0 EEUFR1V471( ) 200 500

560 10 20 2180 0.020 10000 0.6 5.0 5.0 EEUFR1V561( ) 200 500

680 10 20 2180 0.020 10000 0.6 5.0 5.0 EEUFR1V681( ) 200 500

10 25 2470 0.018 10000 0.6 5.0 5.0 EEUFR1V681L( ) 200 500

820 10 25 2470 0.018 10000 0.6 5.0 5.0 EEUFR1V821L( ) 200 500

1000 12.5 20 2600 0.018 10000 0.6 5.0 5.0 EEUFR1V102( ) 200 500

1200 12.5 25 3190 0.015 10000 0.6 5.0 5.0 EEUFR1V122( ) 200 500

1500 12.5 30 3630 0.013 10000 0.8 5.0 EEUFR1V152L 100

16 20 3300 0.017 10000 0.8 7.5 7.5 EEUFR1V152S( ) 100 250

1800 12.5 35 3750 0.012 10000 0.8 5.0 EEUFR1V182L 100

16 25 3820 0.014 10000 0.8 7.5 7.5 EEUFR1V182( ) 100 250

2200 12.5 35 3750 0.012 10000 0.8 5.0 EEUFR1V222L 100

16 25 3820 0.014 10000 0.8 7.5 7.5 EEUFR1V222( ) 100 250

50

4.7 5 11 185 0.620 5000 0.5 2.0 5.0 2.5 EEUFR1H4R7( ) 200 2000

10 5 11 250 0.340 5000 0.5 2.0 5.0 2.5 EEUFR1H100( ) 200 2000

22 5 11 250 0.340 5000 0.5 2.0 5.0 2.5 EEUFR1H220( ) 200 2000

47 6.3 11.2 405 0.140 5000 0.5 2.5 5.0 EEUFR1H470( ) 200 2000

56 6.3 11.2 405 0.140 5000 0.5 2.5 5.0 2.5 EEUFR1H560( ) 200 2000

100 8 11.5 870 0.061 6000 0.6 3.5 5.0 EEUFR1H101( ) 200 1000

120 8 15 1140 0.045 8000 0.6 3.5 5.0 EEUFR1H121L( ) 200 1000

150 10 12.5 1170 0.042 6000 0.6 5.0 5.0 EEUFR1H151( ) 200 500

180 8 20 1430 0.033 9000 0.6 3.5 5.0 EEUFR1H181L( ) 200 1000

220 10 16 1650 0.030 8000 0.6 5.0 5.0 EEUFR1H221( ) 200 500

270 10 20 1890 0.023 10000 0.6 5.0 5.0 EEUFR1H271( ) 200 500

330 10 25 2150 0.022 10000 0.6 5.0 5.0 EEUFR1H331L( ) 200 500

470 12.5 20 2260 0.022 10000 0.6 5.0 5.0 EEUFR1H471( ) 200 500

560 12.5 25 2660 0.018 10000 0.6 5.0 5.0 EEUFR1H561( ) 200 500

680 12.5 30 3160 0.016 10000 0.8 5.0 EEUFR1H681L 100

820 12.5 35 3270 0.014 10000 0.8 5.0 EEUFR1H821L 100

16 20 2870 0.019 10000 0.8 7.5 7.5 EEUFR1H821S( ) 100 250

1000 16 25 3320 0.016 10000 0.8 7.5 7.5 EEUFR1H102( ) 100 250

63

18 5 11 175 0.510 5000 0.5 2.0 5.0 2.5 EEUFR1J180( ) 200 2000

47 6.3 11.2 284 0.210 5000 0.5 2.5 5.0 2.5 EEUFR1J470( ) 200 2000

82 8 11.5 566 0.092 6000 0.6 3.5 5.0 EEUFR1J820( ) 200 1000

100 8 15 741 0.068 8000 0.6 3.5 5.0 EEUFR1J101L( ) 200 1000

10 12.5 761 0.063 6000 0.6 5.0 5.0 EEUFR1J101( ) 200 500

120 8 20 930 0.050 9000 0.6 3.5 5.0 EEUFR1J121L( ) 200 1000

10 16 1073 0.045 8000 0.6 5.0 5.0 EEUFR1J121( ) 200 500

150 8 20 930 0.050 9000 0.6 3.5 5.0 EEUFR1J151L( ) 200 1000

10 16 1073 0.045 8000 0.6 5.0 5.0 EEUFR1J151( ) 200 500

180 10 20 1229 0.035 10000 0.6 5.0 5.0 EEUFR1J181( ) 200 500

220 10 25 1500 0.033 10000 0.6 5.0 5.0 EEUFR1J221L( ) 200 500

270

10 20 1229 0.035 10000 0.6 5.0 5.0 EEUFR1J271U( ) 200 500

10 25 1500 0.033 10000 0.6 5.0 5.0 EEUFR1J271L( ) 200 500

12.5 20 1582 0.033 10000 0.6 5.0 5.0 EEUFR1J271( ) 200 500

330 12.5 20 1582 0.033 10000 0.6 5.0 5.0 EEUFR1J331( ) 200 500

390 12.5 25 1995 0.027 10000 0.6 5.0 5.0 EEUFR1J391( ) 200 500

470 12.5 25 1995 0.027 10000 0.6 5.0 5.0 EEUFR1J471( ) 200 500

560 12.5 30 2528 0.024 10000 0.8 5.0 EEUFR1J561L 100

16 20 2153 0.029 10000 0.8 7.5 7.5 EEUFR1J561S( ) 100 250

680 12.5 35 2780 0.021 10000 0.8 5.0 EEUFR1J681L 100

820 16 25 2988 0.024 10000 0.8 7.5 7.5 EEUFR1J821( ) 100 250

100 100 10 20 1500 0.084 10000 0.6 5.0 5.0 EEUFR2A101( ) 200 500

· When requesting taped product, please put the letter "B" or "H" be tween the "( )". Lead wire pitch ✽B=5 mm, 7.5 mm, H=2.5 mm.

· Please refer to the page of “Taping dimensions”.

Mar. 201607

Panasonic rm

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

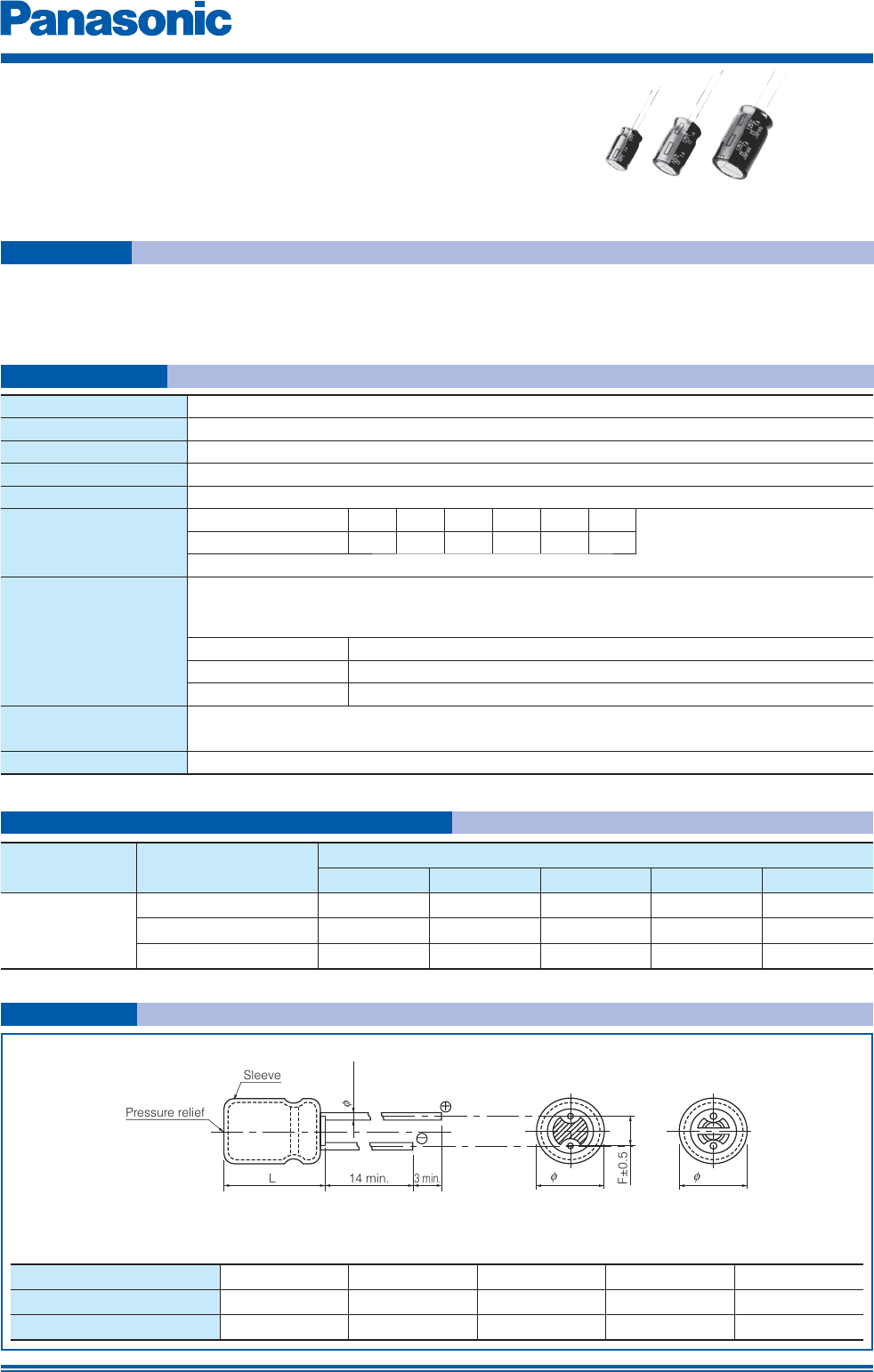

Aluminum Electrolytic Capacitors (Radial Lead Type)

010 <

Sleeve

14 min.

3 min.

L✽

✽ L < 16 : L±1.5

L > 20 : L±2.0

Pressure relief

06.3 <+

–

< 08

0D±0.5

F±0.5

0D±0.5

fd±0.05

● Low ESR, Miniaturized (1 size smaller than series FR)

● Endurance : 105 °C 5000 h to 10000 h

● RoHS compliant

● Malaysia

Features Country of origin

Radial Lead Type

Series : FS Type : A

Frequency correction factor for ripple current

Dimensions

Specifi cations

0D56.381012.516

L — — — — 12.5 to 25 30 to 35 —

0d 0.5 0.5 0.6 0.6 0.6 0.8 0.8

F 2.0 2.5 3.5 5.0 5.0 5.0 7.5

(Unit : mm)

Category temperature range

–40 °C to +105 °C

Rated voltage range 6.3 V.DC to 100 V.DC

Capacitance range 27 µF to 10000 µF

Capacitance tolerance ±20 % (120 Hz/+20 °C)

Leakage current I < 0.01 CV (µA) After 2 minutes

Dissipation factor

(tan d)

V.DC 6.3 10 16 25 35 50 63 80 100 (max.) (120 Hz/+20 °C)

tan d

0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08 0.08

Add 0.02 per 1000 µF for products of 1000 µF or more.

Endurance

After following life test with DC voltage and +105 °C±2 °C ripple current value applied. (The

sum of DC and ripple peak voltage shall not exceed the rated working voltage) when the

capacitors are restored to 20 °C, the capacitors shall meet the limits specifi ed below.

Duration

05×11/ 06.3×11.2 : 5000 hours, 08×11.5/ 010×12.5 : 6000 hours

08×15/ 010×16 : 8000 hours, 08×20 : 9000 hours

010×20 to 010×25/ 012.5×20 to 012.5×35/ 016×20 to 016×25 : 10000 hours

Capacitance change Within ±25 % of the initial value (6.3 V.DC to 10 V.DC : ±30 %)

tan d< 200 % of the initial limit

DC leakage current Within the initial limit

Shelf life After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits specifi ed in Endurance. (With voltage treatment)

Rated voltage (V.DC) Capacitance (µF) Frequency (Hz)

60 120 1 k 10 k 100 k to

6.3 to 100

27 to 33 0.45 0.55 0.75 0.90 1.00

47 to 330 0.60 0.70 0.85 0.95 1.00

390 to 1000 0.65 0.75 0.90 0.98 1.00

1200 to 10000 0.75 0.80 0.95 1.00 1.00

Feb. 201802

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Case size/ Impedance/ Ripple current

Rated voltage

(V.DC) 6.3 V.DC to 35 V.DC 50 V.DC

Case size

(mm)

(0D×L)

Imped ance

(Ω/100 kHz)

Ripple current

(mA r.m.s./100 kHz)

Imped ance

(Ω/100 kHz)

Ripple current

(mA r.m.s./100 kHz)

+20 °C –10 °C +105 °C +20 °C –10 °C +105 °C

5 × 11 0.300 1.000 280 0.340 1.130 250

6.3 × 11.2 0.130 0.430 455 – – –

8 × 11.5 0.056 0.168 950 – – –

8 × 15 0.041 0.123 1240 0.045 0.135 1140

8 × 20 0.030 0.090 1560 0.033 0.099 1430

10 × 12.5 0.043 0.114 1290 – – –

10 × 16 0.028 0.078 1790 – – –

10 × 20 0.020 0.057 2180 0.023 0.069 1890

10 × 25 0.018 0.054 2470 0.022 0.066 2150

12.5 × 20 0.018 0.045 2600 – – –

12.5 × 25 0.015 0.038 3190 0.018 0.045 2660

12.5 × 30 0.013 0.033 3630 0.016 0.040 3160

12.5 × 35 0.012 0.030 3750 0.014 0.035 3270

16 × 20 0.017 0.043 3300 – – –

16 × 25 0.014 0.035 3820 0.016 0.040 3320

Rated voltage

(V.DC) 63 V.DC 80 V.DC to 10 0 V.DC

Case size

(mm)

(0D×L)

Imped ance

(Ω/100 kHz)

Ripple current

(mA r.m.s./100 kHz)

Imped ance

(Ω/100 kHz)

Ripple current

(mA r.m.s./100 kHz)

+20 °C –10 °C +105 °C +20 °C –10 °C +105 °C

5 × 11 0.510 2.040 175 – – –

6.3 × 11.2––––––

8 × 11. 5 – – – 0 .16 0 0.72 0 4 9 0

8 × 15 0.068 0.272 741 0.112 0.504 590

8 × 20 0.050 0.200 930 0.096 0.432 810

10 × 12.5 0.063 0.252 761 0.112 0.448 600

10 × 16 0.045 0.180 1073 0.072 0.288 930

10 × 20 – – – 0.054 0.224 1120

10 × 25 0.033 0.132 1500 0.044 0.176 1200

12.5 × 20 0.033 0.125 1582 0.043 0.135 1400

12.5 × 25 0.027 0.092 1995 0.034 0.108 1800

12.5 × 30 – – – 0.030 0.099 2200

12.5 × 35 0.021 0.071 2780 0.023 0.070 2380

16 × 20 0.029 0.093 2153 0.032 0.108 1450

16 × 25 0.024 0.074 2988 0.025 0.076 2500

Feb. 201802

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(100 kHz)

(+105 °C)

(mA r.m.s.)

Impedance

(100 kHz)

(+20 °C)

(Ω)

Endurance

(hours)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

Taping

✽H

6.3

220 5 11 280 0.300 5000 0.5 2.0 5.0 2.5 EEUFS0J221( ) 200 2000

1500 8 15 1240 0.041 8000 0.6 3.5 5.0 EEUFS0J152L( ) 200 1000

10 12.5 1290 0.043 6000 0.6 5.0 5.0 EEUFS0J152( ) 200 500

1800 8 20 1560 0.030 9000 0.6 3.5 5.0 EEUFS0J182L( ) 200 1000

2000 8 20 1560 0.030 9000 0.6 3.5 5.0 EEUFS0J202L( ) 200 1000

10 16 1790 0.028 8000 0.6 5.0 5.0 EEUFS0J202( ) 200 500

2200 10 16 1790 0.028 8000 0.6 5.0 5.0 EEUFS0J222( ) 200 500

2700 10 20 2180 0.020 10000 0.6 5.0 5.0 EEUFS0J272( ) 200 500

3300 10 20 2180 0.020 10000 0.6 5.0 5.0 EEUFS0J332( ) 200 500

3900 10 25 2470 0.018 10000 0.6 5.0 5.0 EEUFS0J392L( ) 200 500

4700 12.5 20 2600 0.018 10000 0.6 5.0 5.0 EEUFS0J472( ) 200 500

5100 12.5 25 3190 0.015 10000 0.6 5.0 5.0 EEUFS0J512( ) 200 500

5600 12.5 25 3190 0.015 10000 0.6 5.0 5.0 EEUFS0J562( ) 200 500

6200 12.5 30 3630 0.013 10000 0.8 5.0 EEUFS0J622L 100

6800 12.5 30 3630 0.013 10000 0.8 5.0 EEUFS0J682L 100

7500 12.5 35 3750 0.012 10000 0.8 5.0 EEUFS0J752L 100

16 20 3300 0.017 10000 0.8 7.5 7.5 EEUFS0J752S( ) 100 250

8200 12.5 35 3750 0.012 10000 0.8 5.0 EEUFS0J822L 100

16 20 3300 0.017 10000 0.8 7.5 7.5 EEUFS0J822S( ) 100 250

9100 16 25 3820 0.014 10000 0.8 7.5 7.5 EEUFS0J912( ) 100 250

10000 16 25 3820 0.014 10000 0.8 7.5 7.5 EEUFS0J103( ) 100 250

10

180 5 11 280 0.300 5000 0.5 2.0 5.0 2.5 EEUFS1A181( ) 200 2000

330 6.3 11.2 455 0.130 5000 0.5 2.5 5.0 2.5 EEUFS1A331( ) 200 2000

820 8 11.5 950 0.056 6000 0.6 3.5 5.0 EEUFS1A821( ) 200 1000

1000 10 12.5 1290 0.043 6000 0.6 5.0 5.0 EEUFS1A102( ) 200 500

1200 8 15 1240 0.041 8000 0.6 3.5 5.0 EEUFS1A122L( ) 200 1000

10 12.5 1290 0.043 6000 0.6 5.0 5.0 EEUFS1A122( ) 200 500

1800 8 20 1560 0.030 9000 0.6 3.5 5.0 EEUFS1A182L( ) 200 1000

10 16 1790 0.028 8000 0.6 5.0 5.0 EEUFS1A182( ) 200 500

2000 10 20 2180 0.020 10000 0.6 5.0 5.0 EEUFS1A202( ) 200 500

2200 10 20 2180 0.020 10000 0.6 5.0 5.0 EEUFS1A222( ) 200 500

2700 10 25 2470 0.018 10000 0.6 5.0 5.0 EEUFS1A272L( ) 200 500

3600 12.5 20 2600 0.018 10000 0.6 5.0 5.0 EEUFS1A362( ) 200 500

4700 12.5 25 3190 0.015 10000 0.6 5.0 5.0 EEUFS1A472( ) 200 500

5100 12.5 30 3630 0.013 10000 0.8 5.0 EEUFS1A512L 100

5600 12.5 30 3630 0.013 10000 0.8 5.0 EEUFS1A562L 100

16 20 3300 0.017 10000 0.8 7.5 7.5 EEUFS1A562S( ) 100 250

7500 12.5 35 3750 0.012 10000 0.8 5.0 EEUFS1A752L 100

8200 16 25 3820 0.014 10000 0.8 7.5 7.5 EEUFS1A822( ) 100 250

· When requesting taped product, please put the letter "B" or "H" be tween the "( )". Lead wire pitch ✽B=5 mm, 7.5 mm, H=2.5 mm.

· Please refer to the page of “Taping dimensions”.

Feb. 201802

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(100 kHz)

(+105 °C)

(mA r.m.s.)

Impedance

(100 kHz)

(+20 °C)

(Ω)

Endurance

(hours)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

Taping

✽H

16

120 5 11 280 0.300 5000 0.5 2.0 5.0 2.5 EEUFS1C121( ) 200 2000

510 8 11.5 950 0.056 6000 0.6 3.5 5.0 EEUFS1C511( ) 200 1000

820 8 15 1240 0.041 8000 0.6 3.5 5.0 EEUFS1C821L( ) 200 1000

10 12.5 1290 0.043 6000 0.6 5.0 5.0 EEUFS1C821( ) 200 500

1200 8 20 1560 0.030 9000 0.6 3.5 5.0 EEUFS1C122L( ) 200 1000

10 16 1790 0.028 8000 0.6 5.0 5.0 EEUFS1C122( ) 200 500

1800 10 20 2180 0.020 10000 0.6 5.0 5.0 EEUFS1C182( ) 200 500

2200 10 25 2470 0.018 10000 0.6 5.0 5.0 EEUFS1C222L( ) 200 500

2400 12.5 20 2600 0.018 10000 0.6 5.0 5.0 EEUFS1C242( ) 200 500

3300 12.5 25 3190 0.015 10000 0.6 5.0 5.0 EEUFS1C332( ) 200 500

3600 12.5 30 3630 0.013 10000 0.8 5.0 EEUFS1C362L 100

3900 12.5 30 3630 0.013 10000 0.8 5.0 EEUFS1C392L 100

4700 16 20 3300 0.017 10000 0.8 7.5 7.5 EEUFS1C472S( ) 100 250

5100 12.5 35 3750 0.012 10000 0.8 5.0 EEUFS1C512L 100

6200 16 25 3820 0.014 10000 0.8 7.5 7.5 EEUFS1C622( ) 100 250

25

1200 10 20 2180 0.020 10000 0.6 5.0 5.0 EEUFS1E122( ) 200 500

2200 12.5 25 3190 0.015 10000 0.6 5.0 5.0 EEUFS1E222( ) 200 500

3300 12.5 35 3750 0.012 10000 0.8 5.0 EEUFS1E332L 100

3900 16 25 3820 0.014 10000 0.8 7.5 7.5 EEUFS1E392( ) 100 250

35

330 8 15 1240 0.041 8000 0.6 3.5 5.0 EEUFS1V331L( ) 200 1000

820 10 20 2180 0.020 10000 0.6 5.0 5.0 EEUFS1V821( ) 200 500

1000 10 25 2470 0.018 10000 0.6 5.0 5.0 EEUFS1V102L( ) 200 500

1500 12.5 25 3190 0.015 10000 0.6 5.0 5.0 EEUFS1V152( ) 200 500

1800 16 20 3300 0.017 10000 0.8 7.5 7.5 EEUFS1V182S( ) 100 250

2700 16 25 3820 0.014 10000 0.8 7.5 7.5 EEUFS1V272( ) 100 250

50

27 5 11 250 0.340 5000 0.5 2.0 5.0 2.5 EEUFS1H270( ) 200 2000

150 8 15 1140 0.045 8000 0.6 3.5 5.0 EEUFS1H151L( ) 200 1000

220 8 20 1430 0.033 9000 0.6 3.5 5.0 EEUFS1H221L( ) 200 1000

330 10 20 1890 0.023 10000 0.6 5.0 5.0 EEUFS1H331( ) 200 500

390 10 25 2150 0.022 10000 0.6 5.0 5.0 EEUFS1H391L( ) 200 500

680 12.5 25 3660 0.018 10000 0.6 5.0 5.0 EEUFS1H681( ) 200 500

820 12.5 30 3160 0.016 10000 0.8 5.0 EEUFS1H821L 100

1000 12.5 35 3270 0.014 10000 0.8 5.0 EEUFS1H102L 100

1200 16 25 3320 0.016 10000 0.8 7.5 7.5 EEUFS1H122( ) 100 250

63

27 5 11 175 0.510 5000 0.5 2.0 5.0 2.5 EEUFS1J270( ) 200 2000

120 8 15 741 0.068 8000 0.6 3.5 5.0 EEUFS1J121L( ) 200 1000

10 12.5 761 0.063 6000 0.6 5.0 5.0 EEUFS1J121( ) 200 500

180 8 20 930 0.050 9000 0.6 3.5 5.0 EEUFS1J181L( ) 200 1000

10 16 1073 0.045 8000 0.6 5.0 5.0 EEUFS1J181( ) 200 500

330 10 25 1500 0.033 10000 0.6 5.0 5.0 EEUFS1J331L( ) 200 500

390 12.5 20 1582 0.033 10000 0.6 5.0 5.0 EEUFS1J391( ) 200 500

560 12.5 25 1995 0.027 10000 0.6 5.0 5.0 EEUFS1J561( ) 200 500

680 16 20 2153 0.029 10000 0.8 7.5 7.5 EEUFS1J681S( ) 100 250

820 12.5 35 2780 0.021 10000 0.8 5.0 EEUFS1J821L 100

1000 16 25 2988 0.024 10000 0.8 7.5 7.5 EEUFS1J102( ) 100 250

· When requesting taped product, please put the letter "B" or "H" be tween the "( )". Lead wire pitch ✽B=5 mm, 7.5 mm, H=2.5 mm.

· Please refer to the page of “Taping dimensions”.

Feb. 201802

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(100 kHz)

(+105 °C)

(mA r.m.s.)

Impedance

(100 kHz)

(+20 °C)

(Ω)

Endurance

(hours)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

Taping

✽H

80

47 8 11.5 490 0.160 6000 0.6 3.5 5.0 EEUFS1K470( ) 200 1000

56 8 11.5 490 0.160 6000 0.6 3.5 5.0 EEUFS1K560( ) 200 1000

68 8 15 590 0.112 8000 0.6 3.5 5.0 EEUFS1K680( ) 200 1000

82 8 15 590 0.112 8000 0.6 3.5 5.0 EEUFS1K820( ) 200 1000

100 8 20 810 0.096 9000 0.6 3.5 5.0 EEUFS1K101L( ) 200 1000

10 12.5 600 0.112 6000 0.6 5.0 5.0 EEUFS1K101( ) 200 500

120 8 20 810 0.096 9000 0.6 3.5 5.0 EEUFS1K121L( ) 200 1000

150 10 16 930 0.072 8000 0.6 5.0 5.0 EEUFS1K151( ) 200 500

180 10 20 1120 0.054 10000 0.6 5.0 5.0 EEUFS1K181( ) 200 500

220 10 20 1120 0.054 10000 0.6 5.0 5.0 EEUFS1K221( ) 200 500

10 25 1200 0.044 10000 0.6 5.0 5.0 EEUFS1K221L( ) 200 500

270 10 25 1200 0.044 10000 0.6 5.0 5.0 EEUFS1K271L( ) 200 500

12.5 20 1400 0.043 10000 0.6 5.0 5.0 EEUFS1K271( ) 200 500

390 12.5 25 1800 0.034 10000 0.6 5.0 5.0 EEUFS1K391( ) 200 500

470 12.5 30 2200 0.030 10000 0.8 5.0 EEUFS1K471L( ) 100

16 20 1450 0.032 10000 0.8 7.5 7.5 EEUFS1K471S( ) 100 250

560 12.5 35 2380 0.023 10000 0.8 5.0 EEUFS1K561L( ) 100

680 16 25 2500 0.025 10000 0.8 7.5 7.5 EEUFS1K681( ) 100 250

100

27 8 11.5 490 0.160 6000 0.6 3.5 5.0 EEUFS2A270( ) 200 1000

33 8 11.5 490 0.160 6000 0.6 3.5 5.0 EEUFS2A330( ) 200 1000

39 8 15 590 0.112 8000 0.6 3.5 5.0 EEUFS2A390( ) 200 1000

47 8 15 590 0.112 8000 0.6 3.5 5.0 EEUFS2A470L( ) 200 1000

10 12.5 600 0.112 6000 0.6 5.0 5.0 EEUFS2A470( ) 200 500

56 8 20 810 0.096 9000 0.6 3.5 5.0 EEUFS2A560L( ) 200 1000

68 8 20 810 0.096 9000 0.6 3.5 5.0 EEUFS2A680L( ) 200 1000

10 16 930 0.072 8000 0.6 5.0 5.0 EEUFS2A680( ) 200 500

120 10 20 1120 0.054 10000 0.6 5.0 5.0 EEUFS2A121( ) 200 500

10 25 1200 0.044 10000 0.6 5.0 5.0 EEUFS2A121L( ) 200 500

150 10 25 1200 0.044 10000 0.6 5.0 5.0 EEUFS2A151L( ) 200 500

12.5 20 1400 0.043 10000 0.6 5.0 5.0 EEUFS2A151( ) 200 500

180 12.5 25 1800 0.034 10000 0.6 5.0 5.0 EEUFS2A181( ) 200 500

220 12.5 25 1800 0.034 10000 0.6 5.0 5.0 EEUFS2A221( ) 200 500

270 12.5 30 2200 0.030 10000 0.8 5.0 EEUFS2A271L( ) 100

16 20 1450 0.032 10000 0.8 7.5 7.5 EEUFS2A271S( ) 100 250

330 12.5 35 2380 0.023 10000 0.8 5.0 EEUFS2A331L( ) 100

390 16 25 2500 0.025 10000 0.8 7.5 7.5 EEUFS2A391( ) 100 250

NEW

Feb. 201802

Panasonic 2‘ 65 F L 14 mm Pressure reher F20 5 2 Wm £20 ngo

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

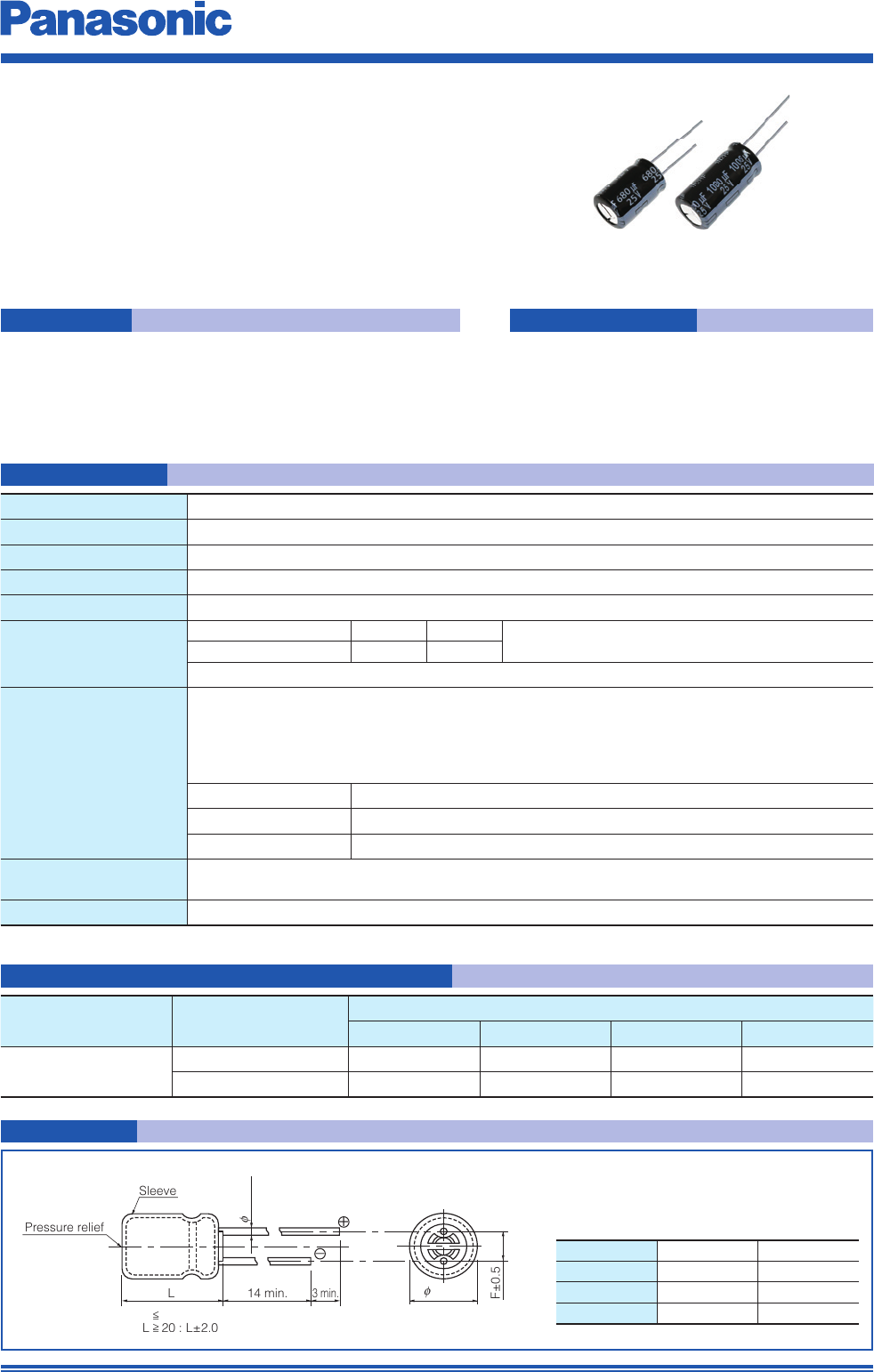

Aluminum Electrolytic Capacitors (Radial Lead Type)

Sleeve

14 min.

3 min.

L✽

✽ L < 16 : L±1.5

L>20 : L±2.0

Pressure relief +

–

F±0.5

0D±0.5

fd±0.05

● High ripple current (2 to 2.5 times as high as FC series)

● Large capacitance (Up to 60 % larger than FC series)

● Endurance : 105 °C 4000 h to 5000 h

● RoHS compliant

● Malaysia

Features Country of origin

Radial Lead Type

Series : FP Type : A

Frequency correction factor for ripple current

Dimensions

Specifi cations

0D1012.5

L 16 to 20 20 to 25

0d 0.6 0.6

F5.05.0

(Unit : mm)

Category temperature range

–55 °C to +105 °C

Rated voltage range 25 V.DC to 35 V.DC

Capacitance range 510 µF to 2000 µF

Capacitance tolerance ±20 % (120 Hz/+20 °C)

Leakage current I < 0.01 CV (µA) After 2 minutes

Dissipation factor

(tan d)

V.DC 25 35 (max.) (120 Hz/+20 °C)

tan d0.14 0.12

Add 0.02 per 1000 µF for products of 1000 µF or more.

Endurance

After following life test with DC voltage and +105 °C±2 °C ripple current value applied. (The

sum of DC and ripple peak voltage shall not exceed the rated working voltage) when the

capacitors are restored to 20 °C, the capacitors shall meet the limits specifi ed below.

Duration

010 : 4000 hours, 012.5 : 5000 hours

Capacitance change Within ±30 % of the initial value

tan d< 300 % of the initial limit

DC leakage current Within the initial limit

Shelf life After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits specifi ed in Endurance. (With voltage treatment)

AEC-Q200 AEC-Q200 compliant

Rated voltage (V.DC) Capacitance (µF) Frequency (Hz)

120 1 k 10 k 100 k to

25 to 35 510 to 1000 0.65 0.75 0.95 1.00

1200 to 2000 0.75 0.80 1.00 1.00

Jul. 201800

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Case size/ Impedance/ Ripple current

Rated voltage

(V.DC) 25 V.DC to 35 V.DC

Case size

(mm)

(0D×L)

ESR

(Ω/100 kHz)

Ripple current

(mA r.m.s./100 kHz)

+20 °C –10 °C +105 °C

10 × 16 0.068 0.136 2500

10 × 20 0.052 0.104 3000

12.5 × 20 0.038 0.076 3250

12.5 × 25 0.030 0.060 4000

Characteristics list

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(100 kHz)

(+105 °C)

(mA r.m.s.)

ESR

(100 kHz)

(+20 °C)

(Ω)

Endurance

(hours)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

25

680 10 16 2500 0.068 4000 0.6 5.0 5.0 EEUFP1E681( ) 200 500

1000 10 20 3000 0.052 4000 0.6 5.0 5.0 EEUFP1E102( ) 200 500

1500 12.5 20 3250 0.038 5000 0.6 5.0 5.0 EEUFP1E152( ) 200 500

2000 12.5 25 4000 0.030 5000 0.6 5.0 5.0 EEUFP1E202( ) 200 500

35

510 10 16 2500 0.068 4000 0.6 5.0 5.0 EEUFP1V511( ) 200 500

750 10 20 3000 0.052 4000 0.6 5.0 5.0 EEUFP1V751( ) 200 500

1000 12.5 20 3250 0.038 5000 0.6 5.0 5.0 EEUFP1V102( ) 200 500

1300 12.5 25 4000 0.030 5000 0.6 5.0 5.0 EEUFP1V132( ) 200 500

· When requesting taped product, please put the letter "B". Lead wire pitch ✽B=5 mm.

· Please refer to the page of “Taping dimensions”.

Jul. 201800

Panasonic S‘eeve Pressure reher 1:776; L12 0 14 mm Lam

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

0D±0.5

F±0.5

Sleeve

14 min.

3 min.

L±2.0

Pressure relief +

–

fd±0.05

● High ripple current (at high frequency)

● Endurance : 105 °C 8000 h to 10000 h

● Including low profi le products (20 mm height)

● RoHS compliant

Features

Radial Lead Type

Series : ED Type : A

(Unit : mm)

Specifi cations

Dimensions

0D10 12.5 16 18

0d0.6 0.6 0.8 0.8

F 5.0 5.0 7.5 7.5

Category temperature range

–25 °C to + 105 °C

Rated voltage range 160 V .DC to 450 V .DC

Capacitance range 10 µF to 330 µF

Capacitance tolerance ±20 % (120 Hz/+20 °C)

Leakage current I < 0.06 CV +10 (µA) After 2 minutes application of rated working voltage at +20 °C

Dissipation factor (tan d) Please see the attached standard products list

Characteristics

at low temperature

V.DC 160 200 250 350 400 450 (Impedance ratio at 120 Hz)

Z(–25 °C) / Z(+20 °C) 333666

Endurance

After following life test with DC voltage and +105 °C±2 °C ripple current value applied

(The sum of DC and ripple peak voltage shall not exceed the rated working voltage),

when the capacitors are restored to 20 °C, the capacitors shall meet the limits specifi ed below.

Duration

010 : 8000 hours

012.5 to 018 : 10000 hours

Capacitance change ±20 % of the initial value

tan d< 200 % of the initial limit

DC leakage current Within the initial limit

Shelf life After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits specifi ed in Endurance. (With voltage treatment)

Capacitance

(µF)

Frequency (Hz)

50 < f < 120 120 < f < 300 300 < f < 1 k 1 k < f < 10 k 10 k < f < 30 k

30 k < f < 100 k

Cap. < 100 µF 0.30 0.40 0.55 0.70 0.90 1.00

100 µF < Cap. 0.35 0.45 0.60 0.75 0.90 1.00

Frequency correction factor for ripple current

✽Propose EE series for New design

Jul. 201700

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

Endurance : 105 °C 010=8000 h, 012.5 to 018=10000 h

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(100 kHz)

(+105 °C)

(mA r.m.s.)

tan d

(120 Hz)

(+20 °C)

Endurance

(hours)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

160

22 10 20 500 0.15 8000 0.6 5.0 5.0 EEUED2C220( ) 200 500

33 10 20 580 0.15 8000 0.6 5.0 5.0 EEUED2C330( ) 200 500

47 10 20 750 0.15 8000 0.6 5.0 5.0 EEUED2C470( ) 200 500

68 12.5 20 950 0.15 10000 0.6 5.0 5.0 EEUED2C680( ) 200 500

82 12.5 25 1060 0.15 10000 0.6 5.0 5.0 EEUED2C820( ) 200 500

100 12.5 25 1170 0.15 10000 0.6 5.0 5.0 EEUED2C101( ) 200 500

16 20 1280 0.15 10000 0.8 7.5 7.5 EEUED2C101S( ) 100 250

150 16 25 1400 0.15 10000 0.8 7.5 7.5 EEUED2C151( ) 100 250

18 20 1400 0.15 10000 0.8 7.5 7.5 EEUED2C151S( ) 100 250

220 16 31.5 1700 0.15 10000 0.8 7.5 EEUED2C221 100

18 25 1500 0.15 10000 0.8 7.5 7.5 EEUED2C221S( ) 100 250

330 18 31.5 2000 0.15 10000 0.8 7.5 EEUED2C331 50

200

22 10 20 600 0.15 8000 0.6 5.0 5.0 EEUED2D220( ) 200 500

33 10 20 650 0.15 8000 0.6 5.0 5.0 EEUED2D330( ) 200 500

47 12.5 20 790 0.15 10000 0.6 5.0 5.0 EEUED2D470( ) 200 500

68 12.5 25 950 0.15 10000 0.6 5.0 5.0 EEUED2D680( ) 200 500

16 20 1000 0.15 10000 0.8 7.5 7.5 EEUED2D680S( ) 100 250

82 16 20 1100 0.15 10000 0.8 7.5 7.5 EEUED2D820S( ) 100 250

100 16 25 1300 0.15 10000 0.8 7.5 7.5 EEUED2D101( ) 100 250

18 20 1280 0.15 10000 0.8 7.5 7.5 EEUED2D101S( ) 100 250

150 16 25 1400 0.15 10000 0.8 7.5 7.5 EEUED2D151( ) 100 250

220 18 31.5 2000 0.15 10000 0.8 7.5 EEUED2D221 50

330 18 40 2400 0.15 10000 0.8 7.5 EEUED2D331 50

250

22 10 20 560 0.15 8000 0.6 5.0 5.0 EEUED2E220( ) 200 500

33 12.5 20 710 0.15 10000 0.6 5.0 5.0 EEUED2E330( ) 200 500

47 12.5 25 920 0.15 10000 0.6 5.0 5.0 EEUED2E470( ) 200 500

16 20 990 0.15 10000 0.8 7.5 7.5 EEUED2E470S( ) 100 250

68 16 20 1000 0.15 10000 0.8 7.5 7.5 EEUED2E680S( ) 100 250

82 16 25 1200 0.15 10000 0.8 7.5 7.5 EEUED2E820( ) 100 250

18 20 1200 0.15 10000 0.8 7.5 7.5 EEUED2E820S( ) 100 250

100 16 31.5 1500 0.15 10000 0.8 7.5 EEUED2E101 100

18 25 1500 0.15 10000 0.8 7.5 7.5 EEUED2E101S( ) 100 250

150 18 31.5 1800 0.15 10000 0.8 7.5 EEUED2E151 50

220 18 40 2100 0.15 10000 0.8 7.5 EEUED2E221 50

350

10 10 20 350 0.20 8000 0.6 5.0 5.0 EEUED2V100( ) 200 500

22 12.5 20 480 0.20 10000 0.6 5.0 5.0 EEUED2V220( ) 200 500

33 16 20 640 0.20 10000 0.8 7.5 7.5 EEUED2V330S( ) 100 250

47 16 25 800 0.20 10000 0.8 7.5 7.5 EEUED2V470( ) 100 250

18 20 800 0.20 10000 0.8 7.5 7.5 EEUED2V470S( ) 100 250

68 16 31.5 1100 0.20 10000 0.8 7.5 EEUED2V680 100

18 25 1000 0.20 10000 0.8 7.5 7.5 EEUED2V680S( ) 100 250

82 18 25 1100 0.20 10000 0.8 7.5 7.5 EEUED2V820S( ) 100 250

100 18 31.5 1200 0.20 10000 0.8 7.5 EEUED2V101 50

· When requesting taped product, please put the letter "B" be tween the "( )". Lead wire pitch ✽B=5 mm, 7.5 mm.

· Please refer to the page of “Taping dimensions”.

Jul. 201700

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

Endurance : 105 °C 010=8000 h, 012.5 to 018=10000 h

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(100 kHz)

(+105 °C)

(mA r.m.s.)

tan d

(120 Hz)

(+20 °C)

Endurance

(hours)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

400

10 10 20 300 0.24 8000 0.6 5.0 5.0 EEUED2G100( ) 200 500

15 12.5 20 410 0.24 10000 0.6 5.0 5.0 EEUED2G150( ) 200 500

22 12.5 25 500 0.24 10000 0.6 5.0 5.0 EEUED2G220( ) 200 500

16 20 600 0.24 10000 0.8 7.5 7.5 EEUED2G220S( ) 100 250

33 16 20 730 0.24 10000 0.8 7.5 7.5 EEUED2G330S( ) 100 250

47 16 25 840 0.24 10000 0.8 7.5 7.5 EEUED2G470( ) 100 250

18 20 840 0.24 10000 0.8 7.5 7.5 EEUED2G470S( ) 100 250

68 18 31.5 1200 0.24 10000 0.8 7.5 EEUED2G680 50

82 18 40 1500 0.24 10000 0.8 7.5 EEUED2G820 50

450

10 12.5 20 350 0.24 10000 0.6 5.0 5.0 EEUED2W100( ) 200 500

15 12.5 25 560 0.24 10000 0.6 5.0 5.0 EEUED2W150( ) 200 500

22 16 20 680 0.24 10000 0.8 7.5 7.5 EEUED2W220S( ) 100 250

33 16 31.5 850 0.24 10000 0.8 7.5 EEUED2W330 100

18 25 850 0.24 10000 0.8 7.5 7.5 EEUED2W330S( ) 100 250

47 18 31.5 1000 0.24 10000 0.8 7.5 EEUED2W470 50

68 18 40 1300 0.24 10000 0.8 7.5 5.0 EEUED2W680 50

· When requesting taped product, please put the letter "B" be tween the "( )". Lead wire pitch ✽B=5 mm, 7.5 mm.

· Please refer to the page of “Taping dimensions”.

Jul. 201700

Panasonic && S‘eeve Ros Ln 0 14 mm 3mm v)

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

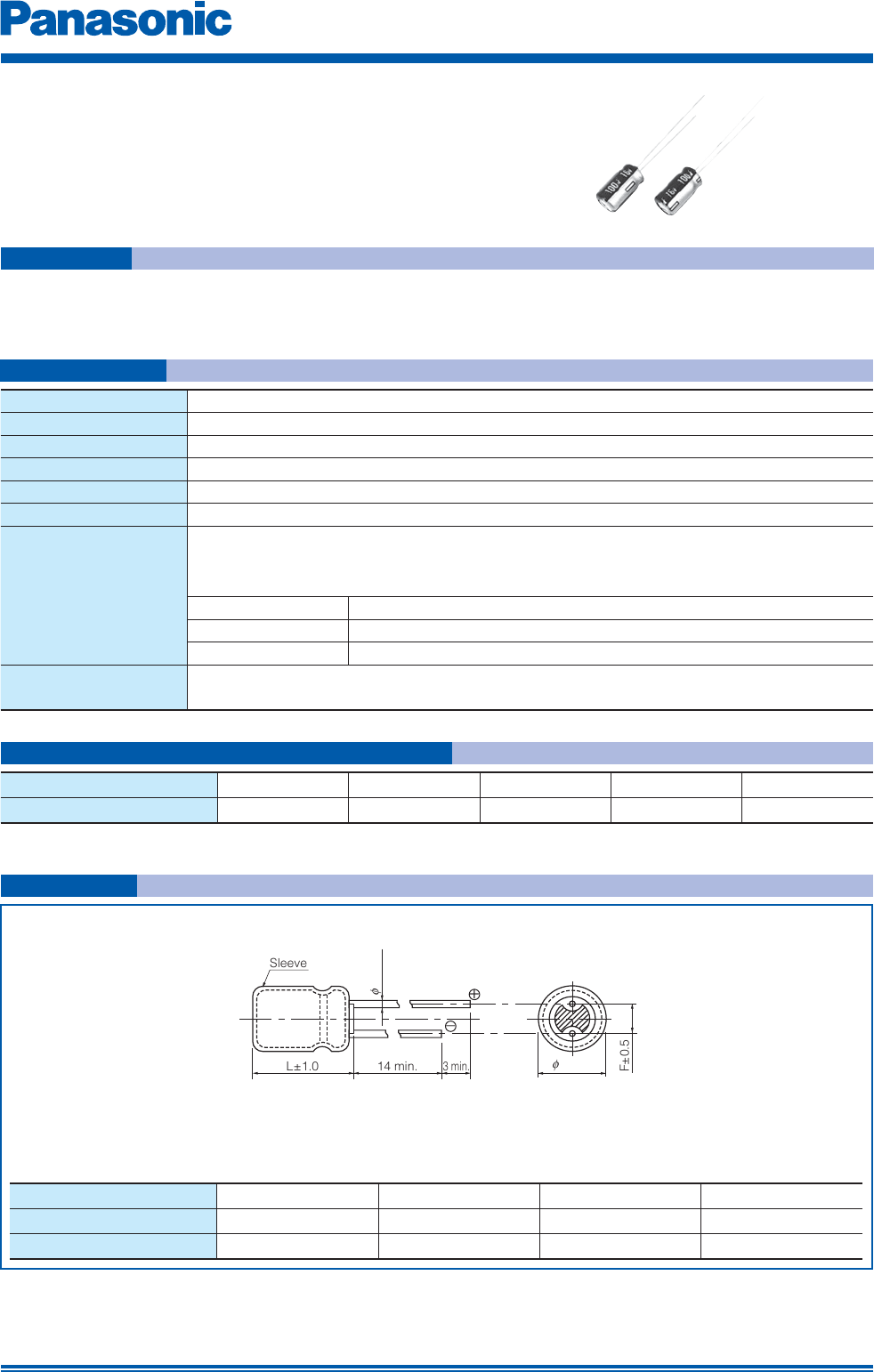

Aluminum Electrolytic Capacitors (Radial Lead Type)

0D±0.5

F±0.5

Sleeve

14 min.

3 min.

L±1.0

+

–

fd±0.05

● Endurance : 105 °C 1000 h

● RoHS compliant

Features

Radial Lead Type

Series : GA Type : A

Specifi cations

Frequency correction factor for ripple current

Category temperature range

–55 °C to +105 °C

Rated voltage range 10 V.DC to 50 V.DC

Capacitance range 1.5 µF to 220 µF

Capacitance tolerance ±20 % (120 Hz/+20 °C)

Leakage current I < 0.01 CV or 3 (µA) After 2 minutes (Whichever is greater)

Dissipation factor (tan d) Please see the attached characteristics list

Endurance

After following life test with DC voltage and +105 °C±2 °C ripple current value applied (The sum

of DC and ripple peak voltage shall not exceed the rated working voltage), for 1000 hours, when

the capacitors are restored to 20 °C, the capacitors shall meet the limits specifi ed below.

Capacitance change Within ±20 % of the initial value

tan d< 200 % of the initial limit

DC leakage current Within the initial limit

Shelf life After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits specifi ed in Endurance. (With voltage treatment)

0D456.38

0d 0.45 0.45 0.45 0.45

F 1.5 2.0 2.5 2.5

(Unit : mm)

Dimensions

Frequency (Hz) 60 120 1 k 10 k 100 k to

Correction factor 0.85 1.00 1.30 1.40 1.55

Mar. 201604

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(120 Hz)

(+105 °C)

(mA r.m.s.)

tan d

(120 Hz)

(+20 °C)

Endurance

(hours)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

Taping

✽H

10

22 4 7 30 0.22 1000 0.45 1.5 5.0 2.5 EEAGA1A220( ) 200 2000

33 5 7 50 0.22 1000 0.45 2.0 5.0 2.5 EEAGA1A330( ) 200 2000

47 6.3 7 65 0.22 1000 0.45 2.5 5.0 2.5 EEAGA1A470( ) 200 2000

68 6.3 7 75 0.22 1000 0.45 2.5 5.0 2.5 EEAGA1A680( ) 200 2000

100 6.3 7 110 0.22 1000 0.45 2.5 5.0 2.5 EE AGA1A101( ) 200 2000

220 8 7 160 0.22 1000 0.45 2.5 5.0 2.5 EEAGA1A221( ) 200 1000

16

10 4 7 30 0.18 1000 0.45 1.5 5.0 2.5 EEAGA1C100( ) 200 2000

15 4 7 33 0.18 1000 0.45 1.5 5.0 2.5 EEAGA1C150( ) 200 2000

22 5 7 50 0.18 1000 0.45 2.0 5.0 2.5 EEAGA1C220( ) 200 2000

33 6.3 7 65 0.18 1000 0.45 2.5 5.0 2.5 EEAGA1C330( ) 200 2000

47 6.3 7 77 0.18 1000 0.45 2.5 5.0 2.5 EEAGA1C470( ) 200 2000

100 8 7 120 0.18 1000 0.45 2.5 5.0 2.5 EEAGA1C101( ) 200 1000

25

10 4 7 33 0.16 1000 0.45 1.5 5.0 2.5 EEAGA1E100( ) 200 2000

15 5 7 45 0.16 1000 0.45 2.0 5.0 2.5 EEAGA1E150( ) 200 2000

22 5 7 50 0.16 1000 0.45 2.0 5.0 2.5 EEAGA1E220( ) 200 2000

33 6.3 7 75 0.16 1000 0.45 2.5 5.0 2.5 EEAGA1E330( ) 200 2000

68 8 7 100 0.16 1000 0.45 2.5 5.0 2.5 EEAGA1E680( ) 200 1000

35

6.8 4 7 33 0.13 1000 0.45 1.5 5.0 2.5 EEAGA1V6R8( ) 200 2000

10 5 7 35 0.13 1000 0.45 2.0 5.0 2.5 EEAGA1V100( ) 200 2000

15 6.3 7 50 0.13 1000 0.45 2.5 5.0 2.5 EEAGA1V150( ) 200 2000

22 6.3 7 70 0.13 1000 0.45 2.5 5.0 2.5 EEAGA1V220( ) 200 2000

47 8 7 96 0.13 1000 0.45 2.5 5.0 2.5 EEAGA1V470( ) 200 1000

50

1.5 4 7 16 0.10 1000 0.45 1.5 5.0 2.5 EEAGA1H1R5( ) 200 2000

2.2 4 7 18 0.10 1000 0.45 1.5 5.0 2.5 EEAGA1H2R2( ) 200 2000

3.3 4 7 22 0.10 1000 0.45 1.5 5.0 2.5 EEAGA1H3R3( ) 200 2000

4.7 4 7 26 0.10 1000 0.45 1.5 5.0 2.5 EEAGA1H4R7( ) 200 2000

6.8 5 7 35 0.10 1000 0.45 2.0 5.0 2.5 EEAGA1H6R8( ) 200 2000

10 6.3 7 39 0.10 1000 0.45 2.5 5.0 2.5 EEAGA1H100( ) 200 2000

15 6.3 7 55 0.10 1000 0.45 2.5 5.0 2.5 EEAGA1H150( ) 200 2000

22 8 7 70 0.10 1000 0.45 2.5 5.0 2.5 EEAGA1H220( ) 200 1000

33 8 7 91 0.10 1000 0.45 2.5 5.0 2.5 EEAGA1H330( ) 200 1000

· When requesting taped product, please put the letter "B" or "H" between the "( )". Lead wire pitch ✽B=5 mm, H=2.5 mm.

Suffi x "BQ" for 08×7, 5 mm pitch products

· Please refer to the page of “Taping Dimensions”.

Endurance : 105 °C 1000 h

Mar. 201604

Panasonic KA mhe S‘eeve F20 5 L110 14mm ﬁrm a

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

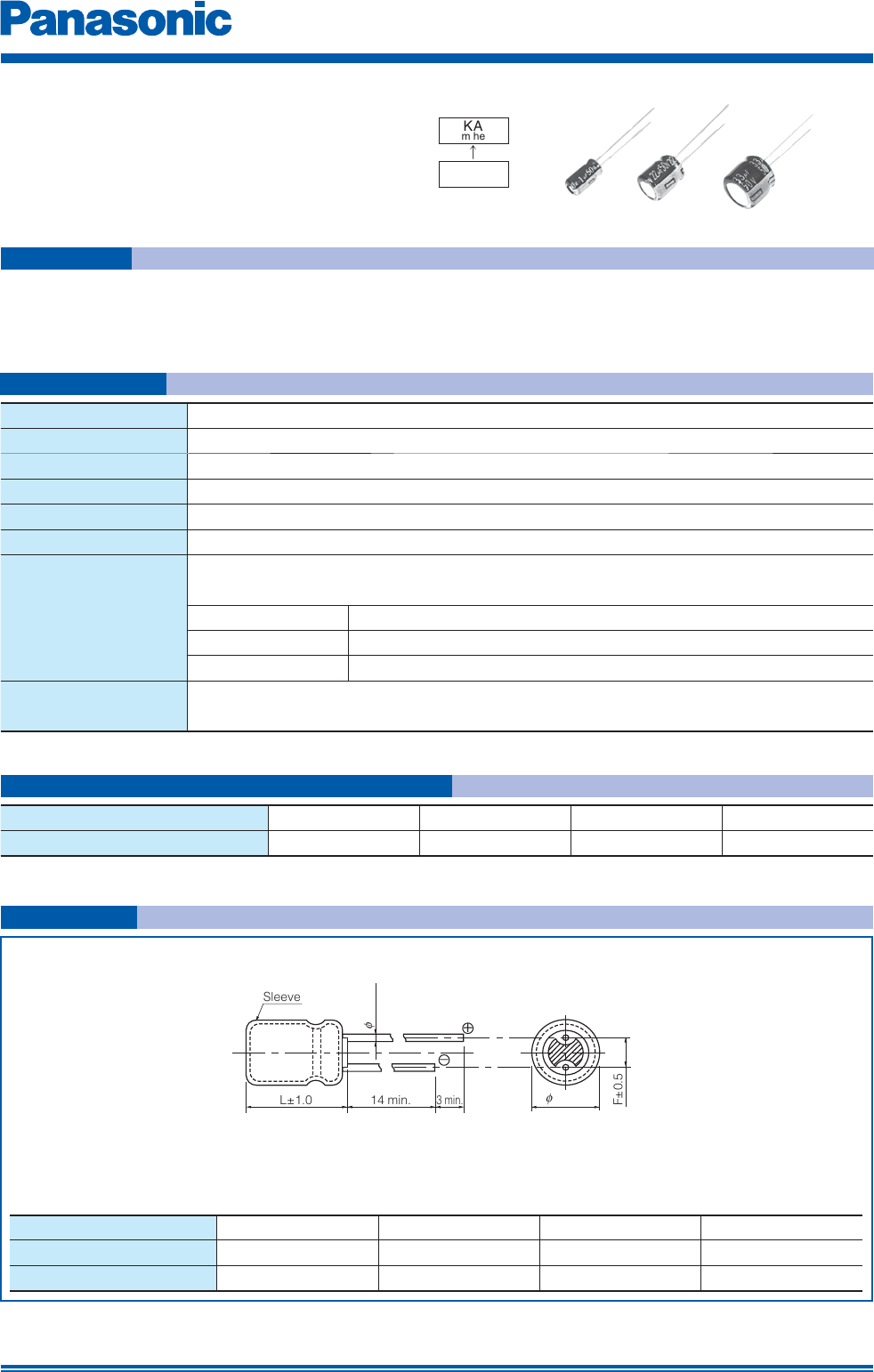

Aluminum Electrolytic Capacitors (Radial Lead Type)

0D±0.5

F±0.5

Sleeve

14 min.

3 min.

L±1.0

+

–

fd±0.05

● Endurance : 85 °C 1000 h

● 7 mm height

● RoHS compliant

Features

Radial Lead Type

Series : KA Type : A

Specifi cations

Frequency correction factor for ripple current

0D456.38

0d 0.45 0.45 0.45 0.45

F 1.5 2.0 2.5 2.5

(Unit : mm)

Dimensions

Category temperature range

–40 °C to +85 °C

Rated voltage range 4 V.DC to 50 V.DC

Capacitance range 2.2 µF to 470 µF

Capacitance tolerance ±20 % (120 Hz/+20 °C)

Leakage current I < 0.01 CV or 3 (µA) After 2 minutes (Whichever is greater)

Dissipation factor (tan d) Please see the attached characteristics list

Endurance

After applying rated working voltage for 1000 hours at +85 °C±2 °C when the capacitors are

restored to 20 °C, capacitors shall meet the following limits.

Capacitance change Within ±20 % of the initial value

tan d< 200 % of the initial limit

DC leakage current Within the initial limit

Shelf life After storage for 1000 hours at +85 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits specifi ed in Endurance (With voltage treatment)

M

KA

7 mm height

↑

Low Profi le

Frequency (Hz) 50, 60 120 1 k 10 k to

Correction factor 0.70 1.00 1.30 1.70

Mar. 201604

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

Endurance : 85 °C 1000 h

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(120 Hz)

(+85 °C)

(mA r.m.s.)

tan d

(120 Hz)

(+20 °C)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

Taping

✽i

4

47 4 7 34 0.35 0.45 1.5 5.0 2.5 ECEA0GKA470( ) 200 2000

100 5 7 61 0.35 0.45 2.0 5.0 2.5 ECEA0GKA101( ) 200 2000

220 6.3 7 82 0.35 0.45 2.5 5.0 2.5 ECEA0GKA221( ) 200 2000

330 871100.350.452.5 2.5ECEA0GKA331( ) 200 1000

871100.350.45 5.0 ECEA0GKA331Q 1000

470 871400.350.452.5 2.5ECEA0GKA471( ) 200 1000

871400.350.45 5.0 ECEA0GKA471Q 1000

6.3

47 4 7 46 0.24 0.45 1.5 5.0 2.5 ECEA0JKA470( ) 200 2000

100 5 7 71 0.24 0.45 2.0 5.0 2.5 ECEA0JKA101( ) 200 2000

220 6.3 7 103 0.24 0.45 2.5 5.0 2.5 ECEA0JKA221( ) 200 2000

330 871300.240.452.5 2.5ECEA0JKA331( ) 200 1000

871300.240.45 5.0 ECEA0JKA331Q 1000

10

33 4 7 43 0.20 0.45 1.5 5.0 2.5 ECEA1AKA330( ) 200 2000

100 6.3 7 80 0.20 0.45 2.5 5.0 2.5 ECEA1AKA101( ) 200 2000

220 871200.200.452.5 2.5ECEA1AKA221( ) 200 1000

871200.200.45 5.0 ECEA1AKA221Q 1000

16

10 4 7 28 0.16 0.45 1.5 5.0 2.5 ECEA1CKA100( ) 200 2000

22 4 7 39 0.16 0.45 1.5 5.0 2.5 ECEA1CKA220( ) 200 2000

33 5 7 60 0.16 0.45 2.0 5.0 2.5 ECEA1CKA330( ) 200 2000

47 5 7 70 0.16 0.45 2.0 5.0 2.5 ECEA1CKA470( ) 200 2000

100 6.3 7 91 0.16 0.45 2.5 5.0 2.5 ECEA1CKA101( ) 200 2000

25

10 4 7 28 0.14 0.45 1.5 5.0 2.5 ECEA1EKA100( ) 200 2000

22 5 7 55 0.14 0.45 2.0 5.0 2.5 ECEA1EKA220( ) 200 2000

33 6.3 7 65 0.14 0.45 2.5 5.0 2.5 ECEA1EKA330( ) 200 2000

47 6.3 7 70 0.14 0.45 2.5 5.0 2.5 ECEA1EKA470( ) 200 2000

35

10 5 7 30 0.12 0.45 2.0 5.0 2.5 ECEA1VKA100( ) 200 2000

22 6.3 7 60 0.12 0.45 2.5 5.0 2.5 ECEA1VKA220( ) 200 2000

33 6.3 7 65 0.12 0.45 2.5 5.0 2.5 ECEA1VKA330( ) 200 2000

47 8 7 85 0.12 0.45 2.5 2.5 ECEA1VKA470( ) 200 1000

8 7 85 0.12 0.45 5.0 ECEA1VKA470Q 1000

50

2.2 4 7 16 0.10 0.45 1.5 5.0 2.5 ECEA1HKA2R2( ) 200 2000

3.3 4 7 18 0.10 0.45 1.5 5.0 2.5 ECEA1HKA3R3( ) 200 2000

4.7 4 7 23 0.10 0.45 1.5 5.0 2.5 ECEA1HKA4R7( ) 200 2000

10 5 7 35 0.10 0.45 2.0 5.0 2.5 ECEA1HKA100( ) 200 2000

22 6.3 7 60 0.10 0.45 2.5 5.0 2.5 ECEA1HKA220( ) 200 2000

33 8 7 75 0.10 0.45 2.5 2.5 ECEA1HKA330( ) 200 1000

8 7 75 0.10 0.45 5.0 ECEA1HKA330Q 1000

· When requesting taped product, please put the letter “B” or “i” between the “( )”. Lead wire pitch ✽B=5 mm, i=2.5 mm.

· Please refer to the page of “Taping dimensions”.

Mar. 201604

Panasonic //

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

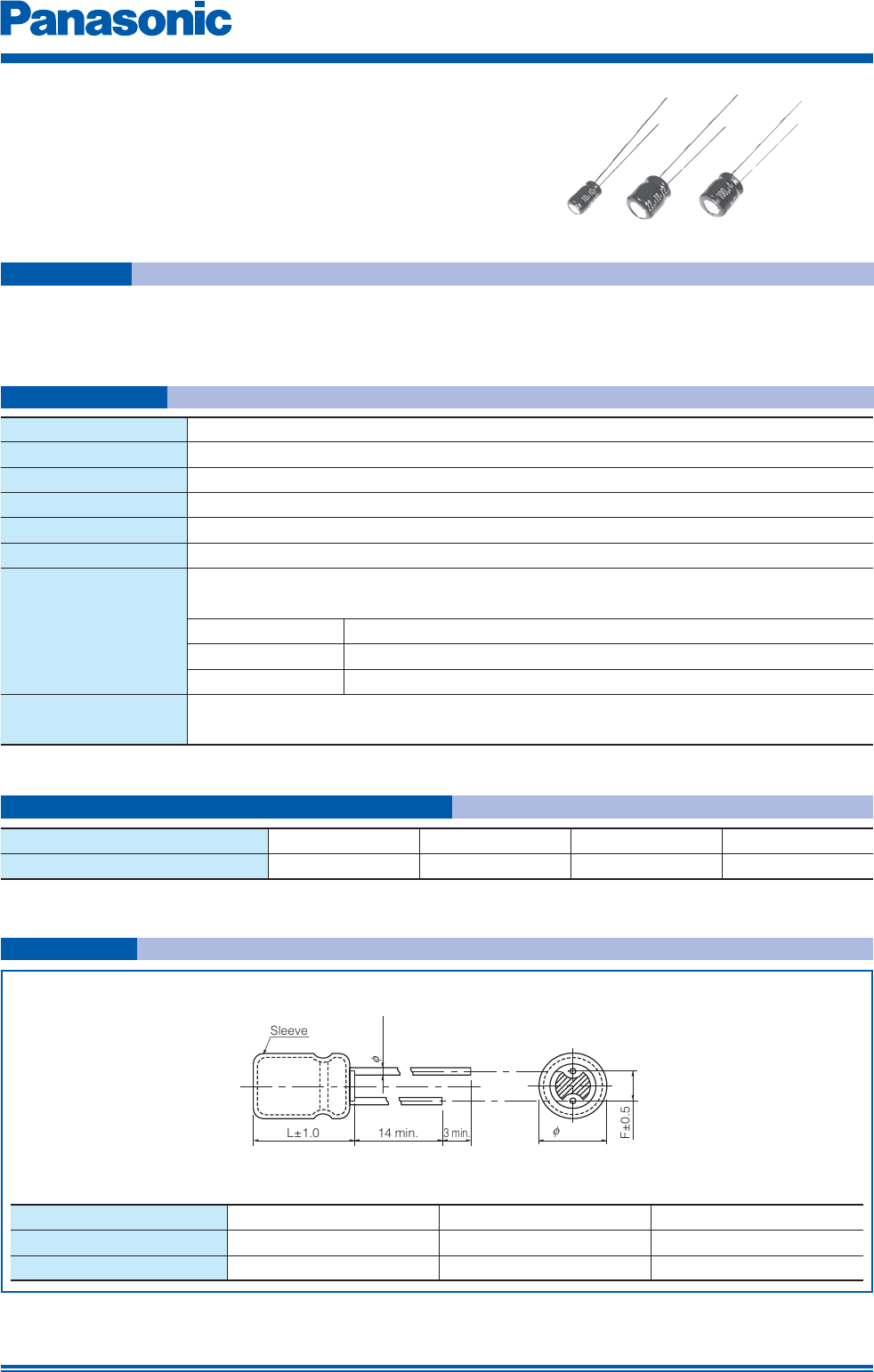

Aluminum Electrolytic Capacitors (Radial Lead Type)

0D±0.5

F±0.5

Sleeve

14 min.

3 min.

L±1.0

fd±0.05

(Unit : mm)

Radial Lead Type

Series : KA (Bi-polar) Type : A

Dimensions

Frequency correction factor for ripple current

● Endurance : 85 °C 1000 h

● 7 mm height

● RoHS compliant

Features

Specifi cations

Frequency (Hz) 50, 60 120 1 k 10 k to

Correction factor 0.70 1.00 1.30 1.70

Category temperature range

–40 °C to +85 °C

Rated voltage range 4 V.DC to 50 V.DC

Capacitance range 2.2 µF to 100 µF

Capacitance tolerance ±20 % (120 Hz/+20 °C)

Leakage current I < 0.05 CV or 10 (µA) After 2 minutes (Whichever is greater)

Dissipation factor (tan d) Please see the attached characteristics list

Endurance

After 1000 hours application of DC working voltage (500 hours for each polarity) at +85 °C±2 °C,

when the capacitors are restored to 20 °C, the capacitors shall meet the following limits.

Capacitance change Within ±20 % of the initial value

tan d< 200 % of the initial limit

DC leakage current Within the initial limit

Shelf life After storage for 1000 hours at +85 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits specifi ed in Endurance (With voltage treatment)

0D4 56.3

0d 0.45 0.45 0.45

F 1.5 2.0 2.5

Mar. 201604

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list (Bi-polar)

Endurance : 85 °C 1000 h (500hours for each polarity)

· When requesting taped product, please put the letter “B” or “i” between the “( )”. Lead wire pitch ✽B=5 mm, 7.5 mm, i=2.5 mm.

· Please refer to the page of “Taping dimensions”.

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(120 Hz)

(+85 °C)

(mA r.m.s.)

tan d

(120 Hz)

(+20 °C)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

Taping

✽i

4100 6.3 7 61 0.35 0.45 2.5 5.0 2.5 ECEA0GKN101( ) 200 2000

6.3

22 5 7 29 0.24 0.45 2.0 5.0 2.5 ECEA0JKN220( ) 200 2000

33 5 7 38 0.24 0.45 2.0 5.0 2.5 ECEA0JKN330( ) 200 2000

47 6.3 7 46 0.24 0.45 2.5 5.0 2.5 ECEA0JKN470( ) 200 2000

10

10 4 7 25 0.20 0.45 1.5 5.0 2.5 ECEA1AKN100( ) 200 2000

22 5 7 35 0.20 0.45 2.0 5.0 2.5 ECEA1AKN220( ) 200 2000

33 6.3 7 43 0.20 0.45 2.5 5.0 2.5 ECEA1AKN330( ) 200 2000

47 6.3 7 65 0.20 0.45 2.5 5.0 2.5 ECEA1AKN470( ) 200 2000

16

4.7 4 7 20 0.16 0.45 1.5 5.0 2.5 ECEA1CKN4R7( ) 200 2000

10 5 7 25 0.16 0.45 2.0 5.0 2.5 ECEA1CKN100( ) 200 2000

22 6.3 7 39 0.16 0.45 2.5 5.0 2.5 ECEA1CKN220( ) 200 2000

33 6.3 7 60 0.16 0.45 2.5 5.0 2.5 ECEA1CKN330( ) 200 2000

25

3.3 4 7 16 0.16 0.45 1.5 5.0 2.5 ECEA1EKN3R3( ) 200 2000

4.7 5 7 21 0.16 0.45 2.0 5.0 2.5 ECEA1EKN4R7( ) 200 2000

10 6.3 7 28 0.16 0.45 2.5 5.0 2.5 ECEA1EKN100( ) 200 2000

22 6.3 7 55 0.16 0.45 2.5 5.0 2.5 ECEA1EKN220( ) 200 2000

35

2.2 4 7 12 0.14 0.45 1.5 5.0 2.5 ECEA1VKN2R2( ) 200 2000

3.3 5 7 16 0.14 0.45 2.0 5.0 2.5 ECEA1VKN3R3( ) 200 2000

4.7 5 7 22 0.14 0.45 2.0 5.0 2.5 ECEA1VKN4R7( ) 200 2000

10 6.3 7 30 0.14 0.45 2.5 5.0 2.5 ECEA1VKN100( ) 200 2000

50

2.2 5 7 16 0.12 0.45 2.0 5.0 2.5 ECEA1HKN2R2( ) 200 2000

3.3 5 7 16 0.12 0.45 2.0 5.0 2.5 ECEA1HKN3R3( ) 200 2000

4.7 6.3 7 23 0.12 0.45 2.5 5.0 2.5 ECEA1HKN4R7( ) 200 2000

Mar. 201604

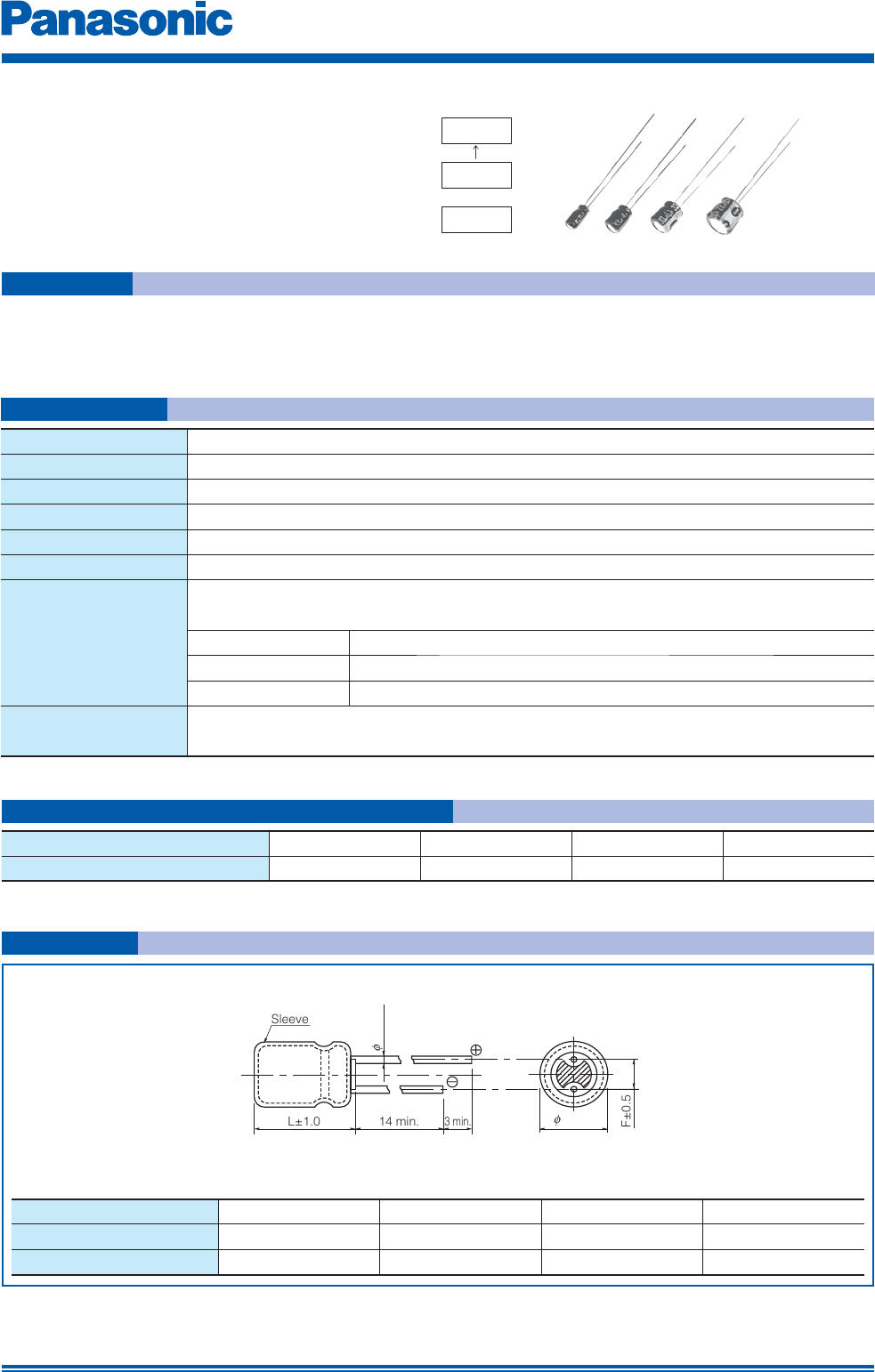

Panasonic E ///// F20 5

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

0D±0.5

F±0.5

Sleeve

14 min.

3 min.

L±1.0

+

–

fd±0.05

● Endurance : 85 °C 1000 h

● 5 mm height

● RoHS compliant

Features

Radial Lead Type

Series : KS Type : A

Specifi cations

Frequency correction factor for ripple current

(Unit : mm)

Dimensions

Frequency (Hz) 50, 60 120 1 k 10 k to

Correction factor 0.70 1.00 1.30 1.70

Category temperature range

–40 °C to +85 °C

Rated voltage range 4 V.DC to 50 V.DC

Capacitance range 2.2 µF to 330 µF

Capacitance tolerance ±20 % (120 Hz/+20 °C)

Leakage current I < 0.01 CV or 3 (µA) After 2 minutes (Whichever is greater)

Dissipation factor (tan d) Please see the attached characteristics list

Endurance

After applying rated working voltage for 1000 hours at +85 °C±2 °C, when the capacitors are

restored to 20°C capacitors, shall meet the following limits.

Capacitance change Within ±20 % of the initial value (4 V.DC : ±30 %)

tan d< 200 % of the initial limit

DC leakage current Within the initial limit

Shelf life After storage for 1000 hours at +85 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits specifi ed in Endurance (With voltage treatment)

0D456.38

0d 0.45 0.45 0.45 0.45

F 1.5 2.0 2.5 2.5

M

KA

7 mm height

↑

Low Profi le

↑

KS

5 mm height

Mar. 201604

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

Endurance : 85 °C 1000 h

· When requesting taped product, please put the letter “B” or “i” between the “( )”. Lead wire pitch ✽B=5 mm, i=2.5 mm.

· Please refer to the page of “Taping dimensions”.

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(120 Hz)

(+85 °C)

(mA r.m.s.)

tan d

(120 Hz)

(+20 °C)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

Taping

✽i

4

33 4 5 26 0.35 0.45 1.5 5.0 2.5 ECEA0GKS330( ) 200 2000

47 4 5 34 0.35 0.45 1.5 5.0 2.5 ECEA0GKS470( ) 200 2000

100 5 5 61 0.35 0.45 2.0 5.0 2.5 ECEA0GKS101( ) 200 2000

220 6.3 5 82 0.35 0.45 2.5 5.0 2.5 ECEA0GKS221( ) 200 2000

6.3

22 4 5 29 0.24 0.45 1.5 5.0 2.5 ECEA0JKS220( ) 200 2000

33 5 5 38 0.24 0.45 2.0 5.0 2.5 ECEA0JKS330( ) 200 2000

47 5 5 46 0.24 0.45 2.0 5.0 2.5 ECEA0JKS470( ) 200 2000

100 6.3 5 71 0.24 0.45 2.5 5.0 2.5 ECEA0JKS101( ) 200 2000

330 851300.240.452.5 2.5ECEA0JKS331( ) 200 1000

851300.240.45 5.0 ECEA0JKS331Q 1000

10

22 5 5 35 0.20 0.45 2.0 5.0 2.5 ECEA1AKS220( ) 200 2000

33 5 5 43 0.20 0.45 2.0 5.0 2.5 ECEA1AKS330( ) 200 2000

47 6.3 5 65 0.20 0.45 2.5 5.0 2.5 ECEA1AKS470( ) 200 2000

100 6.3 5 80 0.20 0.45 2.5 5.0 2.5 ECEA1AKS101( ) 200 2000

220 851200.200.452.5 2.5ECEA1AKS221( ) 200 1000

851200.200.45 5.0 ECEA1AKS221Q 1000

16

10 4 5 28 0.16 0.45 1.5 5.0 2.5 ECEA1CKS100( ) 200 2000

22 5 5 39 0.16 0.45 2.0 5.0 2.5 ECEA1CKS220( ) 200 2000

33 6.3 5 60 0.16 0.45 2.5 5.0 2.5 ECEA1CKS330( ) 200 2000

47 6.3 5 70 0.16 0.45 2.5 5.0 2.5 ECEA1CKS470( ) 200 2000

100 8 5 91 0.16 0.45 2.5 2.5 ECEA1CKS101( ) 200 1000

8 5 91 0.16 0.45 5.0 ECEA1CKS101Q 1000

25

4.7 4 5 22 0.14 0.45 1.5 5.0 2.5 ECEA1EKS4R7( ) 200 2000

10 5 5 28 0.14 0.45 2.0 5.0 2.5 ECEA1EKS100( ) 200 2000

22 6.3 5 55 0.14 0.45 2.5 5.0 2.5 ECEA1EKS220( ) 200 2000

33 6.3 5 65 0.14 0.45 2.5 5.0 2.5 ECEA1EKS330( ) 200 2000

100 8 5 85 0.14 0.45 2.5 2.5 ECEA1EKS101( ) 200 1000

8 5 85 0.14 0.45 5.0 ECEA1EKS101Q 1000

35

3.3 4 5 16 0.12 0.45 1.5 5.0 2.5 ECEA1VKS3R3( ) 200 2000

4.7 4 5 22 0.12 0.45 1.5 5.0 2.5 ECEA1VKS4R7( ) 200 2000

10 5 5 30 0.12 0.45 2.0 5.0 2.5 ECEA1VKS100( ) 200 2000

22 6.3 5 60 0.12 0.45 2.5 5.0 2.5 ECEA1VKS220( ) 200 2000

33 8 5 65 0.12 0.45 2.5 2.5 ECEA1VKS330( ) 200 1000

8 5 65 0.12 0.45 5.0 ECEA1VKS330Q 1000

47 8 5 85 0.12 0.45 2.5 2.5 ECEA1VKS470( ) 200 1000

8 5 85 0.12 0.45 5.0 ECEA1VKS470Q 1000

50

2.2 4 5 16 0.10 0.45 1.5 5.0 2.5 ECEA1HKS2R2( ) 200 2000

3.3 4 5 16 0.10 0.45 1.5 5.0 2.5 ECEA1HKS3R3( ) 200 2000

4.7 5 5 23 0.10 0.45 2.0 5.0 2.5 ECEA1HKS4R7( ) 200 2000

10 6.3 5 35 0.10 0.45 2.5 5.0 2.5 ECEA1HKS100( ) 200 2000

22 8 5 60 0.10 0.45 2.5 2.5 ECEA1HKS220( ) 200 1000

8 5 60 0.10 0.45 5.0 ECEA1HKS220Q 1000

Mar. 201604

Panasonic Aluminum Electrolytic Capacitors (Radial Lead Type) ///,, / // r E 1:05“ Radial Lead Type Low none Series: KS (Bi-polar) Type ; A o Endurance 85 DC 1000 h o 5 mm height oRoHS compliant Specifications Category temperature range 740 DC to +85 °C Rated voltage range Capacitance range 2 2 tiF to 47 MP Capacitance tolerance :20 % (120 Hz/+20 °C) Leakage current is 0 05 CV or 10 (uA) After 2 minutes (Whichever is greater) Dissipation tactor (tan 5) Please see the attached characteristics list Alter 1000 hours application or DC working voltage (500 hours tor each polarity) at +85 “0:2 ”C. when the capacitors are restored to 20 °o the capacitors shall meet the toiioWing limits Endurance Capacitance change Within :20 % ot the initial value tan 6 5200 ”A. of the initial limit DC leakage current Within the initial lirnit After storage for 1000 hours at +85 °C:2 DC With no voltage applied and then being stabilized Shell lile at +20 °C. capacitors shall meet the limits specrlied in Endurance (With voltage treatment) 120 1k lOkto 100 130 170 Frequency (Hz) Correction lactor 3 ‘3 ml" u“ (Unit rrrr) WD 4 5 6 3 e’d 0.45 0.45 U 45 F i 5 2.0 2 5 Design and specit canons are each suhiect to change Without notice Ask lactow‘or :he currert :echnical specifications before otrchase and/or use Should a satety carcern arise regarding this product. please be sure to contact us immediaey mt Mar zote

6.3 V.DC to 50 V.DC

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(120 Hz)

(+85 °C)

(mA r.m.s.)

tan d

(120 Hz)

(+20 °C)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

Taping

✽i

6.3

22 5 5 29 0.24 0.45 2.0 5.0 2.5 ECEA0JSN220( ) 200 2000

33 6.3 5 38 0.24 0.45 2.5 5.0 2.5 ECEA0JSN330( ) 200 2000

47 6.3 5 46 0.24 0.45 2.5 5.0 2.5 ECEA0JSN470( ) 200 2000

10

10 4 5 25 0.20 0.45 1.5 5.0 2.5 ECEA1ASN100( ) 200 2000

22 6.3 5 35 0.20 0.45 2.5 5.0 2.5 ECEA1ASN220( ) 200 2000

33 6.3 5 43 0.20 0.45 2.5 5.0 2.5 ECEA1ASN330( ) 200 2000

16

4.7 4 5 20 0.20 0.45 1.5 5.0 2.5 ECEA1CSN4R7( ) 200 2000

10 5 5 25 0.20 0.45 2.0 5.0 2.5 ECEA1CSN100( ) 200 2000

22 6.3 5 39 0.20 0.45 2.5 5.0 2.5 ECEA1CSN220( ) 200 2000

25

3.3 5 5 18 0.20 0.45 2.0 5.0 2.5 ECEA1ESN3R3( ) 200 2000

4.7 5 5 21 0.20 0.45 2.0 5.0 2.5 ECEA1ESN4R7( ) 200 2000

10 6.3 5 28 0.20 0.45 2.5 5.0 2.5 ECEA1ESN100( ) 200 2000

35 2.2 4 5 12 0.20 0.45 1.5 5.0 2.5 ECEA1VSN2R2( ) 200 2000

50 2.2 5 5 16 0.20 0.45 2.0 5.0 2.5 ECEA1HSN2R2( ) 200 2000

· When requesting taped product, please put the letter “B” or “i” between the “( )”. Lead wire pitch ✽B=5 mm, i=2.5 mm.

· Please refer to the page of “Taping dimensions”.

Characteristics list (Bi-polar)

Endurance : 85 °C 1000 h (500hours for each polarity)

Mar. 201604

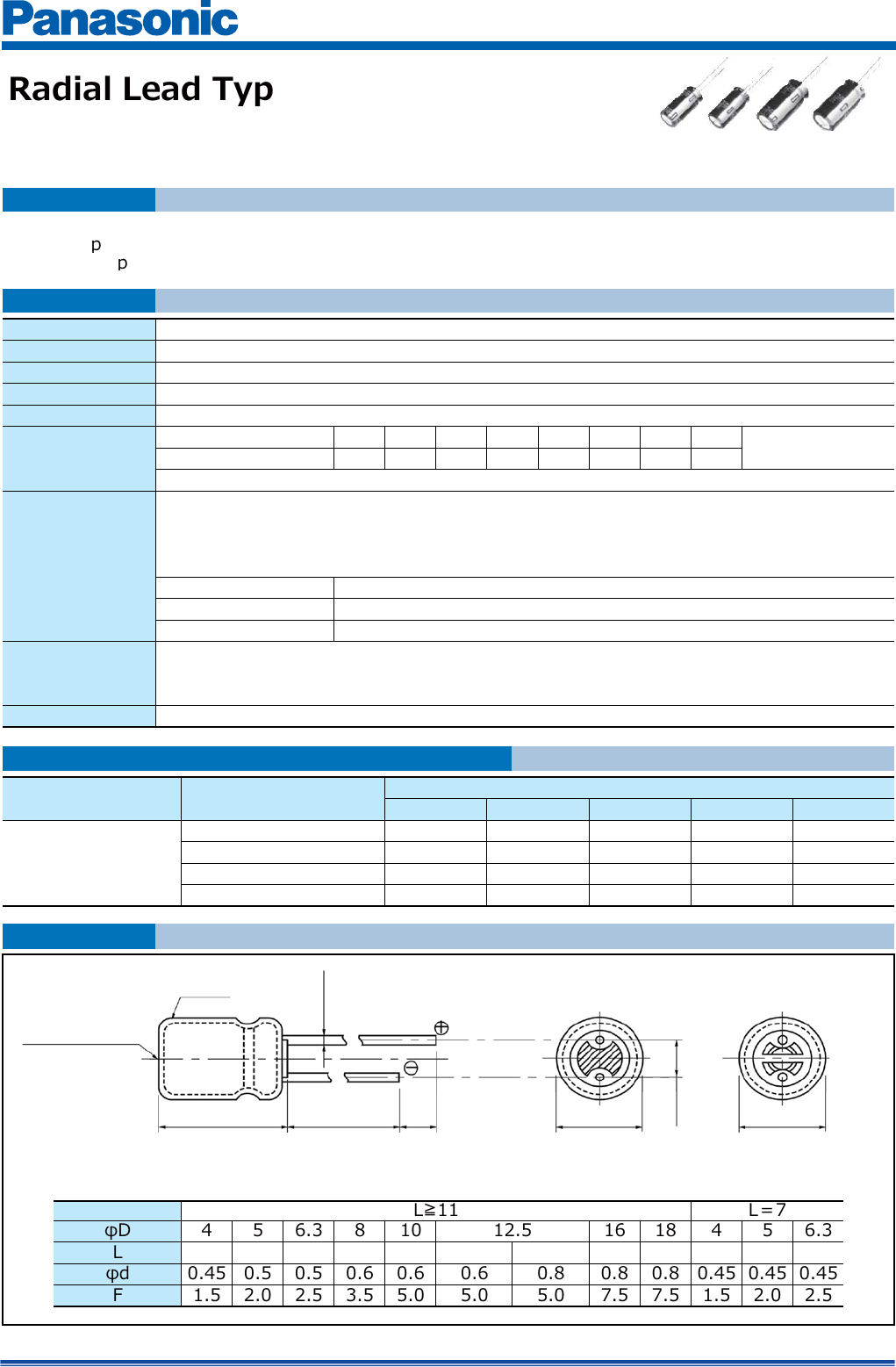

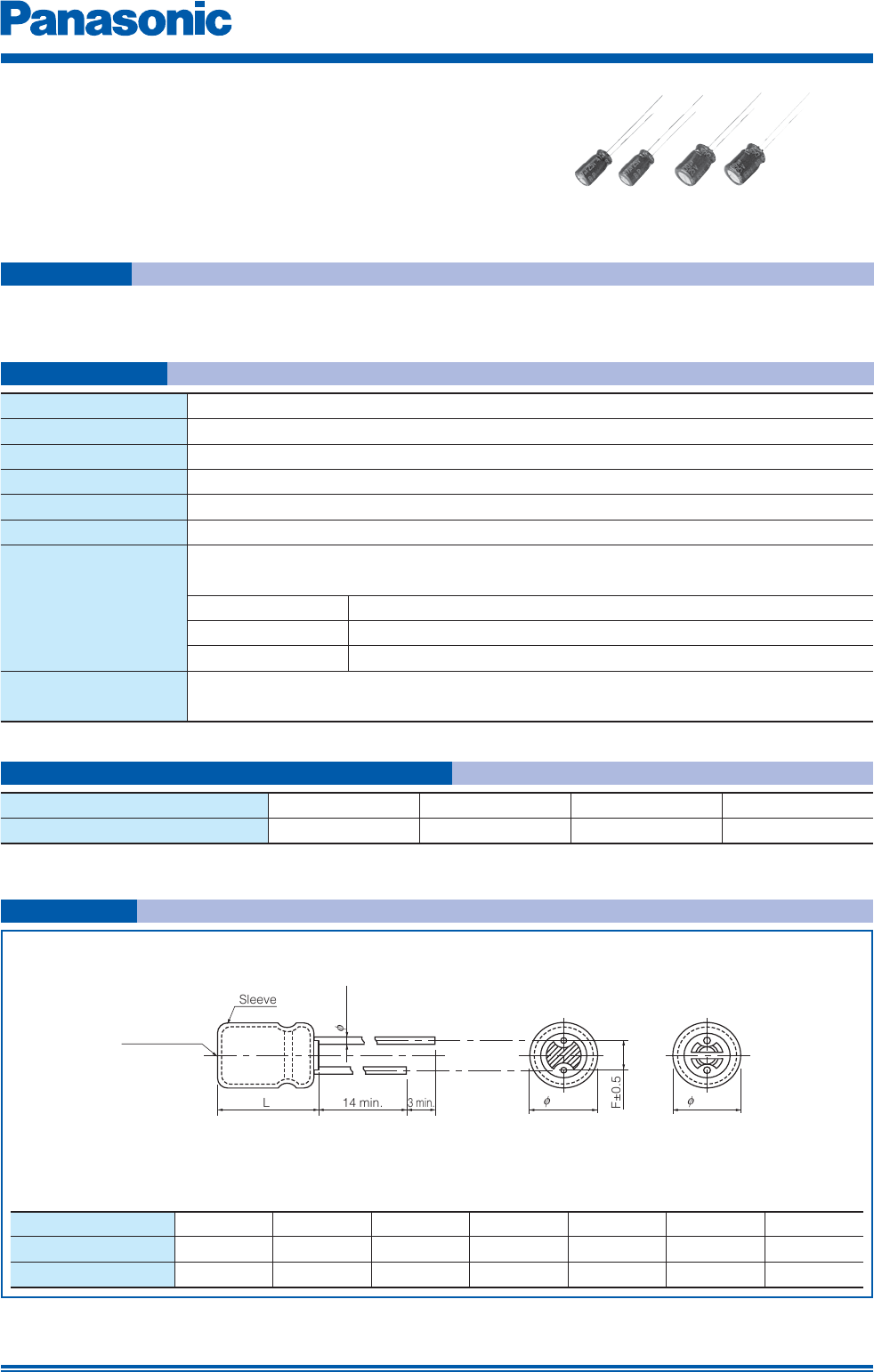

Panasonic Radial Lead Typ Lzll L:7 (9D 4 5 6 3 8 10 12.5 16 18 4 5 6 3 L (pd 0.45 0.5 0.5 0.6 0.6 0.6 0.8 0.8 0.8 0.45 0.45 0.45 F 1.5 2.0 2.5 3.5 5.0 5.0 5.0 7.5 7.5 1.5 2.0 2.5

$OXPLQXP(OHFWURO\WLF&DSDFLWRUV5DGLDO/HDG7\SH

5DGLDO/HDG7

\S

H

ٴ(QGXUDQFH٦KWRK

ٴ/RZLP

S

HGDQFH

ٴ5R+6FRP

S

OLDQW

FDSDFLWRUVDUHUHVWRUHGWR٦WKHFDSDFLWRUVVKDOOPHHWWKHOLPLWVVSHFLILHGEHOORZ



8QLW؟PP

)& $

)HDWXUHV

6SHFLILFDWLRQV

6HULHV 7\SH

6KHOIOLIH

$IWHUVWRUDJHIRUKRXUVDW٦٦ZLWKQRYROWDJHDSSOLHGDQGWKHQEHLQJ

VWDELOL]HGDW&FDSDFLWRUVVKDOOPHHWWKHOLPLWVVSHFLILHGLQ(QGXUDQFH

'&OHDNDJHFXUUHQW

&DWHJRU\WHPSUDQJH t٦WR٦

5DWHGYROWDJHUDQJH

+]٦

)RUFDSDFLWDQFHYDOXHۺ̭)DGGSHUHYHU\̭)

WDQ̥

  

:LWKYROWDJHWUHDWPHQW

9'&WR9'&

&DSDFLWDQFHUDQJH



'HVLJQDQGVSHFLILFDWLRQVDUHHDFKVXEMHFWWRFKDQJHZLWKRXWQRWLFH$VNIDFWRU\IRUWKHFXUUHQWWHFKQLFDOVSHFLILFDWLRQVEHIRUHSXUFKDVHDQGRUXVH

6KRXOGDVDIHW\FRQFHUQDULVHUHJDUGLQJWKLVSURGXFWSOHDVHEHVXUHWRFRQWDFWXVLPPHGLDWHO\ 6HS

'LPHQVLRQV

̭)WR̭)

&DSDFLWDQFHWROHUDQFH

+]٦

'LVVLSDWLRQIDFWRU

WDQ̥

9'&

WDQ̥

/HDNDJHFXUUHQW ,۹&9RU̭$岜$IWHUPLQXWHV:KLFKHYHULVJUHDWHU

$(&4 $(&4FRPSOLDQW



      

)UHTXHQF\FRUUHFWLRQIDFWRUIRUULSSOHFXUUHQW



$IWHUIROORZLQJOLIHWHVWZLWK'&YROWDJHDQG٦٦ULSSOHFXUUHQWYDOXHDSSOLHG

7KHVXPRI'&DQGULSSOHSHDNYROWDJHVKDOOQRWH[FHHGWKHUDWHGZRUNLQJYROWDJHZKHQWKH

'XUDWLRQ̷WR̷K̷K̷K̷WR̷K

&DSDFLWDQFHFKDQJH :LWKLQRIWKHLQLWLDOYDOXH





  N N

   



(QGXUDQFH

  

   

   

۹RIWKHLQLWLDOOLPLW

:LWKLQWKHLQLWLDOOLPLW

N



5DWHGYROWDJH9'& &DSDFLWDQFH̭)

WR

WR

WR

WR

WR

)UHTXHQF\+]



        

 

/ٙ/ۺ

      

        





̷'

/

̷G

)

WR





WR







̷G

3UHVVXUHUHOLHI

̷۹

PLQ

)

/

/۹؟/ق̷[岝̷[岝̷[؟/ك

/ۺ؟/

6OHHYH

PLQ

̷' ̷'

۹̷ ̷ӌ

Panasonic

$OXPLQXP(OHFWURO\WLF&DSDFLWRUV5DGLDO/HDG7\SH

名



















٦ ٦

,PSHGDQFH̚N+]

̷'¼/

&DSDFLWDQFH

̭)

5LSSOHFXUUHQW

P$UPVN+]



&DVHVL]HPP

¼ 



















   

¼            

¼        

   

¼            

¼        

¼    名名名      

¼   

¼   

¼   

&DVHVL]H,PSHGDQFH5LSSOHFXUUHQW

¼

¼

'HVLJQDQGVSHFLILFDWLRQVDUHHDFKVXEMHFWWRFKDQJHZLWKRXWQRWLFH$VNIDFWRU\IRUWKHFXUUHQWWHFKQLFDOVSHFLILFDWLRQVEHIRUHSXUFKDVHDQGRUXVH

6KRXOGDVDIHW\FRQFHUQDULVHUHJDUGLQJWKLVSURGXFWSOHDVHEHVXUHWRFRQWDFWXVLPPHGLDWHO\

¼

¼

¼

¼

¼

¼

¼

¼

¼







































¼

















































































































































































































































































































































































































































¼

¼

¼

¼

¼

¼

¼

WR

5DWHGYROWDJH

9'&

&DVHVL]H

PP̷'¼/















¼

¼

¼

¼

,PSHGDQFH

̚N+]

5LSSOH

FXUUHQW

P$UPV

N+]

5LSSOH

FXUUHQW

P$UPV

N+]

٦ ٦

,PSHGDQFH

̚N+]

5LSSOH

FXUUHQW

P$UPV

N+]

٦ ٦



5LSSOH

FXUUHQW

P$UPV

N+]

,PSHGDQFH

̚N+]

٦ ٦

  

      



٦ ٦

,PSHGDQFH

̚N+]

 



6HS



































Panasonic h. cl) h. cl) 0, (9 cl) EEAFCOJZ70( ) 200 2000 EEAFC01560( ) 200 2000 EEUFC01101( ) 200 2000 EEAFC01121( ) 200 2000 EEUFC01221( ) 200 2000 EEUFCOJZ71( ) 200 2000 EEUFC0133IS( ) 200 2000 EEUFCOJ391( ) 200 1000 EEUFCOJ471( ) 200 1000 EEUFC01561( ) 200 1000 EEUFC01821L( ) 200 1000 EEUFC01821( ) 200 500 EEUFCOJIOZ( ) 200 500 EEUFCOJIZZL( ) 200 1000 EEUFCOJIZZ( ) 200 500 EEUFCOJISZ( ) 200 500 EEUFCOJISZS( ) 200 500 EEUFC01182( ) 200 500 EEUFCOJZZZ( ) 200 500 EEUFCOJZZZS( ) 100 250 EEUFCOJZ7ZL 100 EEUFCOJZ7Z( ) 200 500 EEUFCOJZ7ZS( ) 100 250 EEUFCOJ33Z( ) 200 500 EEUFCOJ33ZS( ) 100 250 EEUFCOJ39Z( ) 200 500 EEUFCOJ47Z 100 EEUFCOJ47ZS( ) 100 250 EEUFCOJSGZL 100 EEUFCOJSGZ( ) 100 250 EEUFCOJSBZL 100 EEUFC01682( ) 100 250 EEUFC0168ZS( ) 100 250 EEUFCOJBZZ 100 EEUFCOJIO3 100 EEUFCOJIO3S( ) 100 250 EEUFC01123L 100 EEUFC01123 50 EEUFC01153 50

$OXPLQXP(OHFWURO\WLF&DSDFLWRUV5DGLDO/HDG7\SH

(QGXUDQFH٦

̷

WR

̷

 K





̷

 K





̷

 K





̷

WR

̷

 K

5LSSOHFXUUHQWN+]٦

,PSHGDQFHN+]岜٦

嵣:KHQUHTXHVWLQJWDSHGSURGXFWSOHDVHSXWWKHOHWWHU%RU+EHWZHHQWKH/HDGZLUHSLWFK

岜名% PPPP+ PP

嵣3OHDVHUHIHUWRWKHSDJHRIn7DSLQJGLPHQVLRQV|













0LQ3DFNDJLQJ4W\

7DSLQJ

SFV

6WUDLJKW

OHDGV

SFV















(($)&-

(($)&-

((8)&-

(($)&-

((8)&-

((8)&-



















































































































((8)&-6









((8)&-/

((8)&-

((8)&-



((8)&-

((8)&-6

((8)&-

((8)&-6

((8)&-

((8)&-

((8)&-6

((8)&-/

((8)&-

((8)&-/

((8)&-



'HVLJQDQGVSHFLILFDWLRQVDUHHDFKVXEMHFWWRFKDQJHZLWKRXWQRWLFH$VNIDFWRU\IRUWKHFXUUHQWWHFKQLFDOVSHFLILFDWLRQVEHIRUHSXUFKDVHDQGRUXVH

6KRXOGDVDIHW\FRQFHUQDULVHUHJDUGLQJWKLVSURGXFWSOHDVHEHVXUHWRFRQWDFWXVLPPHGLDWHO\ 6HS

/HDGVSDFH

/HDGOHQJWKPP

,PSHGDQFH



ق̚ك

5LSSOH

FXUUHQW

P$UPV

6SHFLILFDWLRQ









5DWHG

YRO

9'&

&KDUDFWHULVWLFVOLVW

&DS



̭)















 





/̷'

&DVHVL]H

PP









































































































((8)&-6

((8)&-











3DUW1R





































((8)&-6

((8)&-

((8)&-

((8)&-

((8)&-/

((8)&-

((8)&-

((8)&-/

((8)&-

((8)&-

((8)&-6

((8)&-

((8)&-

((8)&-6

((8)&-/

((8)&-





























































































































































7DSLQJ

名+

7DSLQJ

名%

6WUDLJKW

/HDG

GLD

ق̷Gك

(QGXUDQFH

قKRXUVك





Panasonic

$OXPLQXP(OHFWURO\WLF&DSDFLWRUV5DGLDO/HDG7\SH

(QGXUDQFH٦

̷

WR

̷

 K





̷

 K





̷

 K





̷

WR

̷

 K

5LSSOHFXUUHQWN+]٦

,PSHGDQFHN+]岜٦

嵣:KHQUHTXHVWLQJWDSHGSURGXFWSOHDVHSXWWKHOHWWHU%RU+EHWZHHQWKH/HDGZLUHSLWFK

岜名% PPPP+ PP

嵣3OHDVHUHIHUWRWKHSDJHRIn7DSLQJGLPHQVLRQV|



&KDUDFWHULVWLFVOLVW

5DWHG

YRO

9'&

&DS



̭)

&DVHVL]H

PP 6SHFLILFDWLRQ /HDGOHQJWKPP



























 



  











































'HVLJQDQGVSHFLILFDWLRQVDUHHDFKVXEMHFWWRFKDQJHZLWKRXWQRWLFH$VNIDFWRU\IRUWKHFXUUHQWWHFKQLFDOVSHFLILFDWLRQVEHIRUHSXUFKDVHDQGRUXVH

6KRXOGDVDIHW\FRQFHUQDULVHUHJDUGLQJWKLVSURGXFWSOHDVHEHVXUHWRFRQWDFWXVLPPHGLDWHO\ 6HS

















((8)&$/

((8)&$

((8)&$









((8)&$6

((8)&$

((8)&$

((8)&$6



 









































3DUW1R

0LQ3DFNDJLQJ4W\

̷' /

5LSSOH

FXUUHQW

P$UPV

,PSHGDQFH



ق̚ك

(QGXUDQFH

قKRXUVك

/HDG

GLD

ق̷Gك

/HDGVSDFH 6WUDLJKW

OHDGV

SFV

7DSLQJ

SFV

6WUDLJKW 7DSLQJ

名%

7DSLQJ

名+

































(($)&$

(($)&$

((8)&$

(($)&$

((8)&$6

((8)&$

((8)&$

((8)&$6

((8)&$

((8)&$

((8)&$

((8)&$

((8)&$/

((8)&$

((8)&$

((8)&$/

((8)&$

((8)&$

((8)&$6

((8)&$

((8)&$6

((8)&$/

((8)&$

((8)&$/

((8)&$

((8)&$

((8)&$6

((8)&$

((8)&$6

((8)&$/

((8)&$

((8)&$

((8)&$

































































































































































































































































































Panasonic

$OXPLQXP(OHFWURO\WLF&DSDFLWRUV5DGLDO/HDG7\SH

(QGXUDQFH٦

̷

WR

̷

 K





̷

 K





̷

 K





̷

WR

̷

 K

5LSSOHFXUUHQWN+]٦

,PSHGDQFHN+]岜٦

嵣:KHQUHTXHVWLQJWDSHGSURGXFWSOHDVHSXWWKHOHWWHU%RU+EHWZHHQWKH/HDGZLUHSLWFK

岜名% PPPP+ PP

嵣3OHDVHUHIHUWRWKHSDJHRIn7DSLQJGLPHQVLRQV|







&KDUDFWHULVWLFVOLVW

5DWHG

YRO

9'&

&DS



̭)

&DVHVL]H

PP 6SHFLILFDWLRQ /HDGOHQJWKPP





 











 

 



  









  































'HVLJQDQGVSHFLILFDWLRQVDUHHDFKVXEMHFWWRFKDQJHZLWKRXWQRWLFH$VNIDFWRU\IRUWKHFXUUHQWWHFKQLFDOVSHFLILFDWLRQVEHIRUHSXUFKDVHDQGRUXVH

6KRXOGDVDIHW\FRQFHUQDULVHUHJDUGLQJWKLVSURGXFWSOHDVHEHVXUHWRFRQWDFWXVLPPHGLDWHO\ 6HS





 































 















((8)&&6

((8)&&

((8)&&/

((8)&&



































3DUW1R

0LQ3DFNDJLQJ4W\

̷' /

5LSSOH

FXUUHQW

P$UPV

,PSHGDQFH



ق̚ك

(QGXUDQFH

قKRXUVك

/HDG

GLD

ق̷Gك

/HDGVSDFH 6WUDLJKW

OHDGV

SFV

7DSLQJ

SFV

6WUDLJKW 7DSLQJ

名%

7DSLQJ

名+



































(($)&&

(($)&&

((8)&&

((8)&&

(($)&&

((8)&&

((8)&&

((8)&&

((8)&&

((8)&&

((8)&&

((8)&&

((8)&&/

((8)&&

((8)&&

((8)&&/

((8)&&

((8)&&

((8)&&6

((8)&&6

((8)&&

((8)&&

((8)&&6

((8)&&/

((8)&&

((8)&&

((8)&&6

((8)&&6

((8)&&

((8)&&6

((8)&&

((8)&&6

((8)&&

((8)&&6

((8)&&/

((8)&&

((8)&&

((8)&&















































































































































































































































































































































Panasonic — EEAFCIEIOO EEAFCIEZZO EEU FC1E390 EEAFC1E390 EEU FC1E470 EEU FCIEBZO EEU FClElDlS EEU FC1E181 EEU FC1E221 EEU FC1E271 EEU FC1E331 L EEU FC1E331 EEU FC1E391 EEU FC1E471 L EEU FC1E471 EEU FC1E561 EEU FC1E5615 EEU FC1E681 EEU FC1E821 EEU FCIEBZIS EEU FClElOZL EEU FClElDZ EEU FClElDZS EEU FClElZZ EEU FClElZZS EEU FClElSZ EEU FClElSZS EEU FCIEISZL EEU FClElSZ EEU FCIEZZZ EEU FCIEZZZS EEU FC1E27Z EEU FC1E33Z EEU FC1E33ZS EEU FC1E392L EEU FC1E39Z EEU FC1E47Z EEU FCIESGZ

$OXPLQXP(OHFWURO\WLF&DSDFLWRUV5DGLDO/HDG7\SH

(QGXUDQFH٦

̷

WR

̷

 K





̷

 K





̷

 K





̷

WR

̷

 K

5LSSOHFXUUHQWN+]٦

,PSHGDQFHN+]岜٦

嵣:KHQUHTXHVWLQJWDSHGSURGXFWSOHDVHSXWWKHOHWWHU%RU+EHWZHHQWKH/HDGZLUHSLWFK

岜名% PPPP+ PP

嵣3OHDVHUHIHUWRWKHSDJHRIn7DSLQJGLPHQVLRQV|



&KDUDFWHULVWLFVOLVW

5DWHG

YRO

9'&

&DS



̭)

&DVHVL]H

PP 6SHFLILFDWLRQ /HDGOHQJWKPP













 

 







 













 









 













((8)&(6

















'HVLJQDQGVSHFLILFDWLRQVDUHHDFKVXEMHFWWRFKDQJHZLWKRXWQRWLFH$VNIDFWRU\IRUWKHFXUUHQWWHFKQLFDOVSHFLILFDWLRQVEHIRUHSXUFKDVHDQGRUXVH

6KRXOGDVDIHW\FRQFHUQDULVHUHJDUGLQJWKLVSURGXFWSOHDVHEHVXUHWRFRQWDFWXVLPPHGLDWHO\ 6HS







 





((8)&(

















((8)&(

((8)&(6

((8)&(

((8)&(6

((8)&(

((8)&(

((8)&(

((8)&(6 



((8)&(/





















((8)&(6



3DUW1R

0LQ3DFNDJLQJ4W\

̷' /

5LSSOH

FXUUHQW

P$UPV

,PSHGDQFH



ق̚ك

(QGXUDQFH

قKRXUVك

/HDG

GLD

ق̷Gك

/HDGVSDFH 6WUDLJKW

OHDGV

SFV

7DSLQJ

SFV

6WUDLJKW 7DSLQJ

名%

7DSLQJ

名+































(($)&(

(($)&(

((8)&(

(($)&(

((8)&(

((8)&(

((8)&(6

((8)&(

((8)&(

((8)&(

((8)&(/

((8)&(

((8)&(

((8)&(/

((8)&(

((8)&(

((8)&(6

((8)&(

((8)&(

((8)&(6

((8)&(/

((8)&(



((8)&(/

((8)&(

((8)&(

((8)&(













































































































































































































































































































































































Panasonlc Endurance: 105 “C

Aluminum Electrolytic Capacitors (Radial Lead Type)

Endurance : 105 ℃ φ4 to φ6.3=1000 h, φ8=2000 h, φ10=3000 h, φ12.5 to φ18=5000 h

*1: Ripple current (100 kHz / +105 ℃)

*2: Impedance (100 kHz　/ +20 ℃)

・ When requesting taped product, please put the letter "B" or "H" be tween the "( )". Lead wire pitch

　 ✽B=5 mm, 7.5 mm, H=2.5 mm.

・ Please refer to the page of “Taping dimensions”.

Part No.

Min. Packaging Q'ty

φD L

Ripple

current *1

(mA r.m.s)

Impedance

*2

（Ω）

Endurance

（hours）

Lead

dia.

（φd）

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight Taping

✽B

Taping

✽H

35

1220

1205

1220

1440

1655

1815

1655

1690

1945

1500

1200

1000

820

680

33

47

56

68

100

120

150

3300

3900

250

270

470

12.5

10.0

12.5

16.0

EEUFC1V332

100

200

100

200

100

200

100

EEUFC1V821( )

EEUFC1V222

EEUFC1V222S( )

EEUFC1V272L

EEUFC1V272

EEUFC1V122( )

EEUFC1V152L

7.5

5.0

7.5

100

250

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

10-Sep-18

7.5

5.0

0.80

EEUFC1V152( )

EEUFC1V152S( )

EEUFC1V182L

EEUFC1V182( )

EEUFC1V182S( )

7.5

5.0

7.5

EEUFC1V102( )

EEUFC1V102S( )

EEUFC1V122L

5.0

7.5

5.0

7.5

5.0

7.5

5.0

0.60

5.0

0.60

16.0

20.0

16.0

995

1050

0.065

0.068

2000

3000

3.5

5.0

3000

0.60

3.5

5.0

0.60

180

12.5

15.0

12.5

5.0

3000

3.5

5.0

3.5

5.0

3.5

5.0

2.5

5.0

2.5

5.0

2.5

2.0

5.0

2.5

2.0

5.0

2.5

5.0

2.5

Characteristics list

Rated

vol.

(V.DC)

Cap.

(±20 %)

(μF)

Case size

(mm)

Specification Lead length(mm)

0.45

0.50

6.8

12

22

7.0

11.0

2.0

5.0

2.5

5.0

2.0

1.5

5.0

2.5

0.50

0.45

0.50

0.60

0.80

0.60

0.80

0.60

0.80

EEAFC1V6R8( )

EEAFC1V120( )

EEUFC1V220( )

EEUFC1V270( )

EEAFC1V270( )

EEUFC1V330( )

EEUFC1V470( )

EEUFC1V560( )

EEUFC1V680( )

EEUFC1V101( )

EEUFC1V121( )

EEUFC1V151( )

EEUFC1V181( )

EEUFC1V221L( )

EEUFC1V221( )

EEUFC1V271( )

EEUFC1V331L( )

EEUFC1V331( )

EEUFC1V391( )

EEUFC1V391S( )

EEUFC1V471( )

EEUFC1V561( )

EEUFC1V561S( )

EEUFC1V681L

EEUFC1V681( )

EEUFC1V681S( )

EEUFC1V821L( )

EEUFC1V392

200

100

50

2000

1000

500

1000

500

1000

500

250

500

250

500

250

4.0

5.0

6.3

5.0

6.3

8.0

10.0

8.0

10.0

8.0

10.0

12.5

10.0

12.5

18.0

12.5

16.0

12.5

16.0

12.5

16.0

18.0

12.5

16.0

18.0

16.0

18.0

16.0

18.0

11.0

7.0

11.0

11.2

11.5

20.0

15.0

20.0

25.0

20.0

30.0

20.0

15.0

25.0

15.0

25.0

20.0

30.0

20.0

35.0

25.0

20.0

40.0

25.0

20.0

2555

2490

31.5

25.0

35.5

31.5

35.5

40.0

65

120

175

200

175

290

555

755

730

755

1050

0.018

0.052

2205

2310

2205

2510

2555

2490

2655

2000

1945

0.030

0.029

0.025

0.029

0.022

0.028

0.065

0.052

0.045

0.038

0.035

0.038

3010

2740

3150

3635

3680

3735

2.000

0.950

0.800

0.450

0.800

0.350

0.117

0.090

0.085

0.090

0.068

0.038

0.030

1000

0.043

5000

2700

2200

1800

5000

0.022

0.028

0.018

0.020

0.016

0.015

0.014

560

390

330

220

27

5000

3000

5000

3000

5000

3000

5000

2000

3000

2000

Panasonic

$OXPLQXP(OHFWURO\WLF&DSDFLWRUV5DGLDO/HDG7\SH

(QGXUDQFH٦

̷

WR

̷

 K





̷

 K





̷

 K





̷

WR

̷

 K

5LSSOHFXUUHQWN+]٦

,PSHGDQFHN+]岜٦

嵣:KHQUHTXHVWLQJWDSHGSURGXFWSOHDVHSXWWKHOHWWHU%RU+EHWZHHQWKH/HDGZLUHSLWFK

岜名% PPPP+ PP

嵣3OHDVHUHIHUWRWKHSDJHRIn7DSLQJGLPHQVLRQV|



























 





































































































































 

















































































































































((8)&+

((8)&+6

((8)&+/

((8)&+/

((8)&+

((8)&+



((8)&+

((8)&+

((8)&+6

((8)&+/

((8)&+

((8)&+/

((8)&+

((8)&+/

((8)&+



 

((8)&+5

((8)&+5

((8)&+5

((8)&+/

((8)&+

((8)&+

((8)&+

((8)&+

((8)&+

((8)&+

((8)&+

((8)&+

((8)&+

((8)&+

((8)&+/

((8)&+

((8)&+

((8)&+/

((8)&+







&KDUDFWHULVWLFVOLVW

5DWHG

YRO

9'&

&DS



̭)

&DVHVL]H

PP 6SHFLILFDWLRQ /HDGOHQJWKPP







  







  





 



 

 







 



 

 







 

 































 

((8)&+







((8)&+

((8)&+6

((8)&+/

((8)&+















 



((8)&+

((8)&+6

((8)&+/





 



 





'HVLJQDQGVSHFLILFDWLRQVDUHHDFKVXEMHFWWRFKDQJHZLWKRXWQRWLFH$VNIDFWRU\IRUWKHFXUUHQWWHFKQLFDOVSHFLILFDWLRQVEHIRUHSXUFKDVHDQGRUXVH

6KRXOGDVDIHW\FRQFHUQDULVHUHJDUGLQJWKLVSURGXFWSOHDVHEHVXUHWRFRQWDFWXVLPPHGLDWHO\ 6HS

















































3DUW1R

0LQ3DFNDJLQJ4W\

̷' /

5LSSOH

FXUUHQW

P$UPV

,PSHGDQFH



ق̚ك

(QGXUDQFH

قKRXUVك

/HDG

GLD

ق̷Gك

/HDGVSDFH 6WUDLJKW

OHDGV

SFV

7DSLQJ

SFV

6WUDLJKW 7DSLQJ

名%

7DSLQJ

名+







Panasonic

$OXPLQXP(OHFWURO\WLF&DSDFLWRUV5DGLDO/HDG7\SH

(QGXUDQFH٦

̷

WR

̷

 K





̷

 K





̷

 K





̷

WR

̷

 K

5LSSOHFXUUHQWN+]٦

,PSHGDQFHN+]岜٦

嵣:KHQUHTXHVWLQJWDSHGSURGXFWSOHDVHSXWWKHOHWWHU%RU+EHWZHHQWKH/HDGZLUHSLWFK

岜名% PPPP+ PP

嵣3OHDVHUHIHUWRWKHSDJHRIn7DSLQJGLPHQVLRQV|

































































































































































































































































 







































((8)&-





























((8)&-

((8)&-

((8)&-

((8)&-

((8)&-

((8)&-

((8)&-

((8)&-/

((8)&-

((8)&-

((8)&-

((8)&-

((8)&-6

((8)&-;

((8)&-

((8)&-6

((8)&-

((8)&-/

((8)&-

((8)&-

((8)&-6

((8)&-/

((8)&-









 









 





 

&KDUDFWHULVWLFVOLVW

5DWHG

YRO

9'&

&DS



̭)

,PSHGDQFH



ق̚ك

(QGXUDQFH

قKRXUVك

/HDG

GLD

ق̷Gك

/HDGVSDFH 6WUDLJKW

OHDGV

SFV

6WUDLJKW 7DSLQJ

名%

7DSLQJ

名+





&DVHVL]H

PP 6SHFLILFDWLRQ /HDGOHQJWKPP

3DUW1R

0LQ3DFNDJLQJ4W\

̷' /

5LSSOH

FXUUHQW

P$UPV



7DSLQJ

SFV





 





























 



















































 



 ((8)&-   







((8)&-

((8)&-6

((8)&-/





((8)&-/ 





((8)&-6

((8)&-8

((8)&-

((8)&-















((8)&-/

((8)&-

((8)&-







'HVLJQDQGVSHFLILFDWLRQVDUHHDFKVXEMHFWWRFKDQJHZLWKRXWQRWLFH$VNIDFWRU\IRUWKHFXUUHQWWHFKQLFDOVSHFLILFDWLRQVEHIRUHSXUFKDVHDQGRUXVH

6KRXOGDVDIHW\FRQFHUQDULVHUHJDUGLQJWKLVSURGXFWSOHDVHEHVXUHWRFRQWDFWXVLPPHGLDWHO\ 6HS











Panasonic

$OXPLQXP(OHFWURO\WLF&DSDFLWRUV5DGLDO/HDG7\SH

(QGXUDQFH٦

̷

WR

̷

 K





̷

 K





̷

 K





̷

WR

̷

 K

5LSSOHFXUUHQWN+]٦

,PSHGDQFHN+]٦

嵣:KHQUHTXHVWLQJWDSHGSURGXFWSOHDVHSXWWKHOHWWHU%RU+EHWZHHQWKH/HDGZLUHSLWFK

岜名% PPPP+ PP

嵣3OHDVHUHIHUWRWKHSDJHRIn7DSLQJGLPHQVLRQV|

















































 





























































































































































































































































((8)&$

((8)&$

((8)&$

((8)&$















((8)&$5

((8)&$

((8)&$

((8)&$/

((8)&$

((8)&$/

((8)&$

((8)&$

((8)&$

((8)&$/

((8)&$

((8)&$/

((8)&$

((8)&$6

((8)&$

((8)&$6

((8)&$/

((8)&$



&KDUDFWHULVWLFVOLVW

5DWHG

YRO

9'&

&DS



̭)

&DVHVL]H

PP 6SHFLILFDWLRQ /HDGOHQJWKPP

























 











 ((8)&$/



 









((8)&$



6KRXOGDVDIHW\FRQFHUQDULVHUHJDUGLQJWKLVSURGXFWSOHDVHEHVXUHWRFRQWDFWXVLPPHGLDWHO\ 6HS



'HVLJQDQGVSHFLILFDWLRQVDUHHDFKVXEMHFWWRFKDQJHZLWKRXWQRWLFH$VNIDFWRU\IRUWKHFXUUHQWWHFKQLFDOVSHFLILFDWLRQVEHIRUHSXUFKDVHDQGRUXVH



















 





((8)&$/

((8)&$6

((8)&$

((8)&$6

((8)&$/

 













3DUW1R

0LQ3DFNDJLQJ4W\

̷' /

5LSSOH

FXUUHQW

P$UPV

,PSHGDQFH



ق̚ك

(QGXUDQFH

قKRXUVك

/HDG

GLD

ق̷Gك

/HDGVSDFH 6WUDLJKW

OHDGV

SFV

7DSLQJ

SFV

6WUDLJKW 7DSLQJ

名%

7DSLQJ

名+

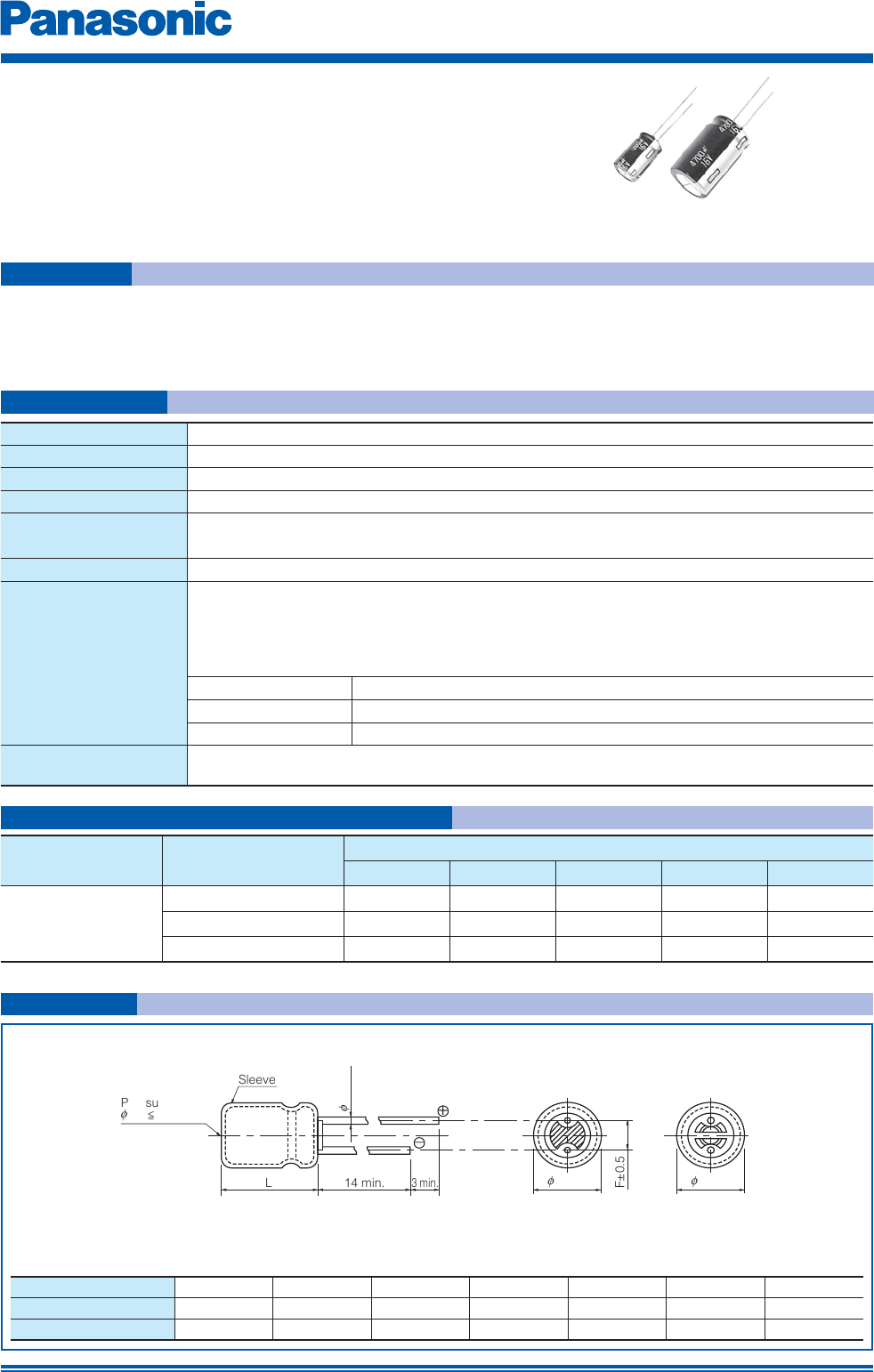

Panasonic ¢¢ Q S‘eeve Pvessme vehe! ;’ 14 mm 3 m n F10 5

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

010 <

Sleeve

14 min.

3 min.

L✽

✽ L < 16 : L±1.5

L > 20 : L±2.0

Pressure relief +

–

08

0D±0.5

F±0.5

0D±0.5

fd±0.05

●Low impedance (10 % to 30 % less than FC Series)

Miniaturization (30 % to 40 % less than FC Series)

●Endurance : 105 °C 3000 h to 5000 h

●RoHS compliant

Features

(Unit : mm)

Frequency correction factor for ripple current

Dimensions

Radial Lead Type

Series : FK Type : A

Category temperature range

–55 °C to +105 °C

Rated voltage range 6.3 V.DC to 35 V.DC

Capacitance range 180 µF to 12000 µF

Capacitance tolerance ±20 % (120 Hz/+20 °C)

Leakage current I < 0.01 CV (µA) After 2 minutes

Dissipation factor

(tan d)

V.DC 6.3 10 16 25 35

tan d0.22 0.19 0.16 0.14 0.12 (120 Hz/+20 °C)

Add 0.02 per 1000 µF for products of 1000 µF or more.

Endurance

After following life test with DC voltage and +105 °C±2 °C ripple current value applied (The

sum of DC and ripple peak voltage shall not exceed the rated working voltage), when the

capacitors are restored to 20 °C, the capacitors shall meet the limits specifi ed bellow.

Duration : 08: 3000 hours , 010: 4000 hours , 012.5 to 018: 5000 hours

Capacitance change Within ±20 % of the initial value

tan d< 200 % of the initial limit

DC leakage current Within the initial limit

Shelf life After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits specifi ed in Endurance. (With voltage treatment)

AEC-Q200 AEC-Q200 compliant

Rated voltage (V.DC) Capacitance (µF) Frequency (Hz)

60 120 1 k 10 k 100 k

6.3 to 35

180 to 330 0.60 0.70 0.85 0.95 1.00

390 to 1000 0.65 0.75 0.90 0.98 1.00

1200 to 12000 0.75 0.80 0.95 1.00 1.00

0D8 10 12.5 16 18

L — — 12.5 to 25 30 to 40 — —

0d 0.6 0.6 0.6 0.8 0.8 0.8

F3.5 5.0 5.0 5.0 7.5 7.5

Specifi cations

Mar. 201602

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Case size/ Impedance/ Ripple current

Case size (mm)

(0D×L)

Imped ance

(Ω)/(100 kHz)

Ripple current

(mA r.m.s.)/(100 kHz)

+20 °C –10 °C +105 °C

8 × 11.5 0.090 0.180 630

8 × 15 0.062 0.124 860

8 × 20 0.044 0.088 1220

10 × 12.5 0.063 0.126 900

10 × 16 0.049 0.098 1240

10 × 20 0.035 0.070 1490

10 × 25 0.033 0.066 1680

10 × 30 0.025 0.050 2140

12.5 × 15 0.048 0.096 1400

12.5 × 20 0.029 0.058 1890

12.5 × 25 0.022 0.044 2280

12.5 × 30 0.018 0.036 2720

12.5 × 35 0.016 0.032 2940

12.5 × 40 0.014 0.028 3010

16 × 15 0.038 0.076 1800

16 × 20 0.026 0.052 2330

16 × 25 0.019 0.038 2760

18 × 15 0.036 0.072 2060

18 × 20 0.025 0.050 2640

18 × 25 0.018 0.036 2850

Mar. 201602

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

Endurance : 105 °C 08=3000 h, 010=4000 h, 012.5 to 018=5000 h

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(100 kHz)

(+105 °C)

(mA r.m.s.)

Impedance

(100 kHz)

(+20 °C)

(Ω)

Endurance

(hours)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

6.3

680 8 11.5 630 0.090 3000 0.6 3.5 5.0 EEUFK0J681( ) 200 1000

1000 8 15 860 0.062 3000 0.6 3.5 5.0 EEUFK0J102L( ) 200 1000

10 12.5 900 0.063 4000 0.6 5.0 5.0 EEUFK0J102( ) 200 500

1500 8 20 1220 0.044 3000 0.6 3.5 5.0 EEUFK0J152L( ) 200 1000

10 16 1240 0.049 4000 0.6 5.0 5.0 EEUFK0J152( ) 200 500

1800 12.5 15 1400 0.048 5000 0.6 5.0 5.0 EEUFK0J182S( ) 200 500

2200 10 20 1490 0.035 4000 0.6 5.0 5.0 EEUFK0J222( ) 200 500

10 25 1680 0.033 4000 0.6 5.0 5.0 EEUFK0J222L( ) 200 500

3300

10 30 2140 0.025 4000 0.6 5.0 EEUFK0J332L 100

12.5 20 1890 0.029 5000 0.6 5.0 5.0 EEUFK0J332( ) 200 500

16 15 1800 0.038 5000 0.8 7.5 7.5 EEUFK0J332S( ) 100 250

4700 12.5 25 2280 0.022 5000 0.6 5.0 5.0 EEUFK0J472( ) 200 500

18 15 2060 0.036 5000 0.8 7.5 7.5 EEUFK0J472S( ) 100 250

5600 12.5 30 2720 0.018 5000 0.8 5.0 EEUFK0J562L 100

16 20 2330 0.026 5000 0.8 7.5 7.5 EEUFK0J562S( ) 100 250

6800 12.5 35 2940 0.016 5000 0.8 5.0 EEUFK0J682L 100

8200

12.5 40 3010 0.014 5000 0.8 5.0 EEUFK0J822L 100

16 25 2760 0.019 5000 0.8 7.5 7.5 EEUFK0J822( ) 100 250

18 20 2640 0.025 5000 0.8 7.5 7.5 EEUFK0J822S( ) 100 250

12000 18 25 2850 0.018 5000 0.8 7.5 7.5 EEUFK0J123S( ) 100 250

10

560 8 11.5 630 0.090 3000 0.6 3.5 5.0 EEUFK1A561( ) 200 1000

820 8 15 860 0.062 3000 0.6 3.5 5.0 EEUFK1A821L( ) 200 1000

10 12.5 900 0.063 4000 0.6 5.0 5.0 EEUFK1A821( ) 200 500

1200 8 20 1220 0.044 3000 0.6 3.5 5.0 EEUFK1A122L( ) 200 1000

10 16 1240 0.049 4000 0.6 5.0 5.0 EEUFK1A122( ) 200 500

1500 12.5 15 1400 0.048 5000 0.6 5.0 5.0 EEUFK1A152S( ) 200 500

1800 10 20 1490 0.035 4000 0.6 5.0 5.0 EEUFK1A182( ) 200 500

10 25 1680 0.033 4000 0.6 5.0 5.0 EEUFK1A182L( ) 200 500

2700

10 30 2140 0.025 4000 0.6 5.0 EEUFK1A272L 100

12.5 20 1890 0.029 5000 0.6 5.0 5.0 EEUFK1A272( ) 200 500

16 15 1800 0.038 5000 0.8 7.5 7.5 EEUFK1A272S( ) 100 250

3900 12.5 25 2280 0.022 5000 0.6 5.0 5.0 EEUFK1A392( ) 200 500

18 15 2060 0.036 5000 0.8 7.5 7.5 EEUFK1A392S( ) 100 250

4700 12.5 30 2720 0.018 5000 0.8 5.0 EEUFK1A472L 100

16 20 2330 0.026 5000 0.8 7.5 7.5 EEUFK1A472S( ) 100 250

5600 12.5 35 2940 0.016 5000 0.8 5.0 EEUFK1A562L 100

6800

12.5 40 3010 0.014 5000 0.8 5.0 EEUFK1A682L 100

16 25 2760 0.019 5000 0.8 7.5 7.5 EEUFK1A682( ) 100 250

18 20 2640 0.025 5000 0.8 7.5 7.5 EEUFK1A682S( ) 100 250

8200 18 25 2850 0.018 5000 0.8 7.5 7.5 EEUFK1A822S( ) 100 250

· When requesting taped product, please put the letter "B" be tween the "( )". Lead wire pitch ✽B=5 mm, 7.5 mm.

· Please refer to the page of “Taping dimensions”.

Mar. 201602

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

Endurance : 105 °C 08=3000 h, 010=4000 h, 012.5 to 018=5000 h

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(100 kHz)

(+105 °C)

(mA r.m.s.)

Impedance

(100 kHz)

(+20 °C)

(Ω)

Endurance

(hours)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

16

390 8 11.5 630 0.090 3000 0.6 3.5 5.0 EEUFK1C391( ) 200 1000

680 8 15 860 0.062 3000 0.6 3.5 5.0 EEUFK1C681L( ) 200 1000

10 12.5 900 0.063 4000 0.6 5.0 5.0 EEUFK1C681( ) 200 500

820 8 20 1220 0.044 3000 0.6 3.5 5.0 EEUFK1C821L( ) 200 1000

1000 10 16 1240 0.049 4000 0.6 5.0 5.0 EEUFK1C102( ) 200 500

1200 10 20 1490 0.035 4000 0.6 5.0 5.0 EEUFK1C122( ) 200 500

12.5 15 1400 0.048 5000 0.6 5.0 5.0 EEUFK1C122S( ) 200 500

1500 10 25 1680 0.033 4000 0.6 5.0 5.0 EEUFK1C152L( ) 200 500

2200

10 30 2140 0.025 4000 0.6 5.0 EEUFK1C222L 100

12.5 20 1890 0.029 5000 0.6 5.0 5.0 EEUFK1C222( ) 200 500

16 15 1800 0.038 5000 0.8 7.5 7.5 EEUFK1C222S( ) 100 250

2700 12.5 25 2280 0.022 5000 0.6 5.0 5.0 EEUFK1C272( ) 200 500

18 15 2060 0.036 5000 0.8 7.5 7.5 EEUFK1C272S( ) 100 250

3300 12.5 30 2720 0.018 5000 0.8 5.0 EEUFK1C332L 100

3900 12.5 35 2940 0.016 5000 0.8 5.0 EEUFK1C392L 100

16 20 2330 0.026 5000 0.8 7.5 7.5 EEUFK1C392S( ) 100 250

4700 12.5 40 3010 0.014 5000 0.8 5.0 EEUFK1C472L 100

18 20 2640 0.025 5000 0.8 7.5 7.5 EEUFK1C472S( ) 100 250

5600 16 25 2760 0.019 5000 0.8 7.5 7.5 EEUFK1C562( ) 100 250

6800 18 25 2850 0.018 5000 0.8 7.5 7.5 EEUFK1C682S( ) 100 250

25

270 8 11.5 630 0.090 3000 0.6 3.5 5.0 EEUFK1E271( ) 200 1000

390 8 15 860 0.062 3000 0.6 3.5 5.0 EEUFK1E391L( ) 200 1000

470 10 12.5 900 0.063 4000 0.6 5.0 5.0 EEUFK1E471( ) 200 500

560 8 20 1220 0.044 3000 0.6 3.5 5.0 EEUFK1E561L( ) 200 1000

10 16 1240 0.049 4000 0.6 5.0 5.0 EEUFK1E561( ) 200 500

820 10 20 1490 0.035 4000 0.6 5.0 5.0 EEUFK1E821( ) 200 500

12.5 15 1400 0.048 5000 0.6 5.0 5.0 EEUFK1E821S( ) 200 500

1000 10 25 1680 0.033 4000 0.6 5.0 5.0 EEUFK1E102L( ) 200 500

1200 12.5 20 1890 0.029 5000 0.6 5.0 5.0 EEUFK1E122( ) 200 500

1500 10 30 2140 0.025 4000 0.6 5.0 EEUFK1E152L 100

16 15 1800 0.038 5000 0.8 7.5 7.5 EEUFK1E152S( ) 100 250

1800 12.5 25 2280 0.022 5000 0.6 5.0 5.0 EEUFK1E182( ) 200 500

18 15 2060 0.036 5000 0.8 7.5 7.5 EEUFK1E182S( ) 100 250

2200 12.5 30 2720 0.018 5000 0.8 5.0 EEUFK1E222L 100

16 20 2330 0.026 5000 0.8 7.5 7.5 EEUFK1E222S( ) 100 250

2700 12.5 35 2940 0.016 5000 0.8 5.0 EEUFK1E272L 100

3300

12.5 40 3010 0.014 5000 0.8 5.0 EEUFK1E332L 100

16 25 2760 0.019 5000 0.8 7.5 7.5 EEUFK1E332( ) 100 250

18 20 2640 0.025 5000 0.8 7.5 7.5 EEUFK1E332S( ) 100 250

4700 18 25 2850 0.018 5000 0.8 7.5 7.5 EEUFK1E472S( ) 100 250

· When requesting taped product, please put the letter "B" be tween the "( )". Lead wire pitch ✽B=5 mm, 7.5 mm.

· Please refer to the page of “Taping dimensions”.

Mar. 201602

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

Endurance : 105 °C 08=3000 h, 010=4000 h, 012.5 to 018=5000 h

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(100 kHz)

(+105 °C)

(mA r.m.s.)

Impedance

(100 kHz)

(+20 °C)

(Ω)

Endurance

(hours)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

35

180 8 11.5 630 0.090 3000 0.6 3.5 5.0 EEUFK1V181( ) 200 1000

270 8 15 860 0.062 3000 0.6 3.5 5.0 EEUFK1V271L( ) 200 1000

10 12.5 900 0.063 4000 0.6 5.0 5.0 EEUFK1V271( ) 200 500

390 8 20 1220 0.044 3000 0.6 3.5 5.0 EEUFK1V391L( ) 200 1000

10 16 1240 0.049 4000 0.6 5.0 5.0 EEUFK1V391( ) 200 500

560 10 20 1490 0.035 4000 0.6 5.0 5.0 EEUFK1V561( ) 200 500

12.5 15 1400 0.048 5000 0.6 5.0 5.0 EEUFK1V561S( ) 200 500

680 10 25 1680 0.033 4000 0.6 5.0 5.0 EEUFK1V681L( ) 200 500

820 12.5 20 1890 0.029 5000 0.6 5.0 5.0 EEUFK1V821( ) 200 500

1000 10 30 2140 0.025 4000 0.6 5.0 EEUFK1V102L 100

16 15 1800 0.038 5000 0.8 7.5 7.5 EEUFK1V102S( ) 100 250

1200 12.5 25 2280 0.022 5000 0.6 5.0 5.0 EEUFK1V122( ) 200 500

18 15 2060 0.036 5000 0.8 7.5 7.5 EEUFK1V122S( ) 100 250

1500 12.5 30 2720 0.018 5000 0.8 5.0 EEUFK1V152L 100

1800 12.5 35 2940 0.016 5000 0.8 5.0 EEUFK1V182L 100

16 20 2330 0.026 5000 0.8 7.5 7.5 EEUFK1V182S( ) 100 250

2200

12.5 40 3010 0.014 5000 0.8 5.0 EEUFK1V222L 100

16 25 2760 0.019 5000 0.8 7.5 7.5 EEUFK1V222( ) 100 250

18 20 2640 0.025 5000 0.8 7.5 7.5 EEUFK1V222S( ) 100 250

3300 18 25 2850 0.018 5000 0.8 7.5 7.5 EEUFK1V332S( ) 100 250

· When requesting taped product, please put the letter "B" be tween the "( )". Lead wire pitch ✽B=5 mm, 7.5 mm.

· Please refer to the page of “Taping dimensions”.

Mar. 201602

Panasonic e + , , _ L M rwn 3mm

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

010 <

Sleeve

14 min.

3 min.

L✽

✽ L < 16 : L±1.5

L > 20 : L±2.0

Pressure relief

06.3 <+

–

< 08

0D±0.5

F±0.5

0D±0.5

fd±0.05

●Low impedance (40 % to 70 % less than FC Series)

●Endurance : 105 °C 2000 h to 7000 h

●RoHS compliant

●Not applicable for automotive

Features

Attention

Radial Lead Type

Series : FM Type : A

(Unit : mm)

Frequency correction factor for ripple current

Dimensions

Specifi cations

Category temperature range

–40 °C to +105 °C

Rated voltage range 6.3 V.DC to 50 V.DC

Capacitance range 22 µF to 6800 µF

Capacitance tolerance ±20 % (120 Hz/+20 °C)

Leakage current I < 0.01 CV (µA) After 2 minutes

Dissipation factor

(tan d)

V.DC 6.3 10 16 25 35 50 (max.) (120 Hz/+20 °C)

tan d0.22 0.19 0.16 0.14 0.12 0.10

Add 0.02 per 1000 µF for products of 1000 µF or more.

Endurance

After following life test with DC voltage and +105 °C±2 °C ripple current value applied. (The

sum of DC and ripple peak voltage shall not exceed the rated working voltage) when the

capacitors are restored to 20 °C, the capacitors shall meet the limits specifi ed below.

Duration

05 to 06.3 : 2000 hours, 08×11.5 to 08×15: 3000 hours

08×20 to 010×16 : 4000 hours, 010×20 to 012.5×20/ 016×20 : 5000 hours

012.5×25 to 012.5×35/ 016×25 : 7000 hours

Capacitance change Within ±25 % of the initial value (6.3 V.DC to 10 V.DC : ±30 %)

tan d< 200 % of the initial limit

DC leakage current Within the initial limit

Shelf life After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits specifi ed in Endurance. (With voltage treatment)

Rated voltage (V.DC) Capacitance (µF) Frequency (Hz)

60 120 1 k 10 k 100 k

6.3 to 50

22 to 33 0.45 0.55 0.75 0.90 1.00

47 to 330 0.60 0.70 0.85 0.95 1.00

390 to 1000 0.65 0.75 0.90 0.98 1.00

1200 to 6800 0.75 0.80 0.95 1.00 1.00

0D56.381012.516

L ————12.5 to 2530 to 40—

0d 0.5 0.5 0.6 0.6 0.6 0.8 0.8

F 2.0 2.5 3.5 5.0 5.0 7.5

Mar. 201602

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Case size/ Impedance/ Ripple current

Rated voltage

(V.DC) 6.3 V.DC to 35 V.DC 50 V.DC

Case size

(mm)

(0D×L)

Imped ance

(Ω/100 kHz)

Ripple current

(mA r.m.s./100 kHz)

Imped ance

(Ω/100 kHz)

Ripple current

(mA r.m.s./100 kHz)

+20 °C –10 °C +105 °C +20 °C –10 °C +105 °C

5 × 11 0.300 1.000 280 0.340 1.130 250

6.3 × 11.2 0.130 0.430 455 0.140 0.460 405

8 × 11.5 0.056 0.168 950 0.061 0.183 870

8 × 15 0.041 0.123 1240 0.045 0.135 1140

8 × 20 0.030 0.090 1560 0.033 0.099 1430

10 × 12.5 0.038 0.114 1290 0.042 0.126 1170

10 × 16 0.026 0.078 1790 0.030 0.090 1650

10 × 20 0.019 0.057 2180 0.023 0.069 1890

10 × 25 0.018 0.054 2470 0.022 0.066 2150

12.5 × 20 0.018 0.045 2600 0.022 0.055 2260

12.5 × 25 0.015 0.038 3190 0.018 0.045 2660

12.5 × 30 0.013 0.033 3630 0.016 0.040 3160

12.5 × 35 0.012 0.030 3750 0.014 0.035 3270

16 × 20 0.017 0.043 3300 0.019 0.048 2870

16 × 25 0.014 0.035 3820 0.016 0.040 3320

Mar. 201602

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(100 kHz)

(+105 °C)

(mA r.m.s.)

Impedance

(100 kHz)

(+20 °C)

(Ω)

Endurance

(hours)

Lead

dia.

0d

Lead space

Long

lead

(pcs)

Taping

(pcs)

Straight

Taping

✽B

Taping

✽H

6.3

150 5 11 280 0.300 2000 0.5 2.0 5.0 2.5 EEUFM0J151( ) 200 2000

330 6.3 11.2 455 0.130 2000 0.5 2.5 5.0 2.5 EEUFM0J331( ) 200 2000

560 8 11.5 950 0.056 3000 0.6 3.5 5.0 EEUFM0J561( ) 200 1000

820 8 15 1240 0.041 3000 0.6 3.5 5.0 EEUFM0J821L( ) 200 1000

1000 10 12.5 1290 0.038 4000 0.6 5.0 5.0 EEUFM0J102( ) 200 500

1200 8 20 1560 0.030 4000 0.6 3.5 5.0 EEUFM0J122L( ) 200 1000

10 16 1790 0.026 4000 0.6 5.0 5.0 EEUFM0J122( ) 200 500

1500 10 20 2180 0.019 5000 0.6 5.0 5.0 EEUFM0J152( ) 200 500

2200 10 25 2470 0.018 5000 0.6 5.0 5.0 EEUFM0J222L( ) 200 500

3300 12.5 20 2600 0.018 5000 0.6 5.0 5.0 EEUFM0J332( ) 200 500

3900 12.5 25 3190 0.015 7000 0.6 5.0 5.0 EEUFM0J392( ) 200 500

4700 12.5 30 3630 0.013 7000 0.8 5.0 EEUFM0J472L 100

5600 12.5 35 3750 0.012 7000 0.8 5.0 EEUFM0J562L 100

16 20 3300 0.017 5000 0.8 7.5 7.5 EEUFM0J562S( ) 100 250

6800 16 25 3820 0.014 7000 0.8 7.5 7.5 EEUFM0J682( ) 100 250

10

100 5 11 280 0.300 2000 0.5 2.0 5.0 2.5 EEUFM1A101( ) 200 2000

220 6.3 11.2 455 0.130 2000 0.5 2.5 5.0 2.5 EEUFM1A221( ) 200 2000

470 8 11.5 950 0.056 3000 0.6 3.5 5.0 EEUFM1A471( ) 200 1000

680 8 15 1240 0.041 3000 0.6 3.5 5.0 EEUFM1A681L( ) 200 1000

10 12.5 1290 0.038 4000 0.6 5.0 5.0 EEUFM1A681( ) 200 500

1000 8 20 1560 0.030 4000 0.6 3.5 5.0 EEUFM1A102L( ) 200 1000

10 16 1790 0.026 4000 0.6 5.0 5.0 EEUFM1A102( ) 200 500

1200 10 20 2180 0.019 5000 0.6 5.0 5.0 EEUFM1A122( ) 200 500

1500 10 25 2470 0.018 5000 0.6 5.0 5.0 EEUFM1A152L( ) 200 500

2200 12.5 20 2600 0.018 5000 0.6 5.0 5.0 EEUFM1A222( ) 200 500

3300 12.5 25 3190 0.015 7000 0.6 5.0 5.0 EEUFM1A332( ) 200 500

3900 12.5 30 3630 0.013 7000 0.8 5.0 EEUFM1A392L 100

16 20 3300 0.017 5000 0.8 7.5 7.5 EEUFM1A392S( ) 100 250

4700 12.5 35 3750 0.012 7000 0.8 5.0 EEUFM1A472L 100

5600 16 25 3820 0.014 7000 0.8 7.5 7.5 EEUFM1A562( ) 100 250

16

68 5 11 280 0.300 2000 0.5 2.0 5.0 2.5 EEUFM1C680( ) 200 2000

120 6.3 11.2 455 0.130 2000 0.5 2.5 5.0 2.5 EEUFM1C121( ) 200 2000

330 8 11.5 950 0.056 3000 0.6 3.5 5.0 EEUFM1C331( ) 200 1000

470 8 15 1240 0.041 3000 0.6 3.5 5.0 EEUFM1C471L( ) 200 1000

10 12.5 1290 0.038 4000 0.6 5.0 5.0 EEUFM1C471( ) 200 500

680 8 20 1560 0.030 4000 0.6 3.5 5.0 EEUFM1C681L( ) 200 1000

10 16 1790 0.026 4000 0.6 5.0 5.0 EEUFM1C681( ) 200 500

1000 10 20 2180 0.019 5000 0.6 5.0 5.0 EEUFM1C102( ) 200 500

1200 10 25 2470 0.018 5000 0.6 5.0 5.0 EEUFM1C122L( ) 200 500

1500 12.5 20 2600 0.018 5000 0.6 5.0 5.0 EEUFM1C152( ) 200 500

2200 12.5 25 3190 0.015 7000 0.6 5.0 5.0 EEUFM1C222( ) 200 500

2700 12.5 30 3630 0.013 7000 0.8 5.0 EEUFM1C272L 100

16 20 3300 0.017 5000 0.8 7.5 7.5 EEUFM1C272S( ) 100 250

3300 12.5 35 3750 0.012 7000 0.8 5.0 EEUFM1C332L 100

3900 16 25 3820 0.014 7000 0.8 7.5 7.5 EEUFM1C392( ) 100 250

· When requesting taped product, please put the letter "B" or "H" be tween the "( )". Lead wire pitch ✽B=5 mm, 7.5 mm, H=2.5 mm.

· Please refer to the page of “Taping dimensions”.

Mar. 201602

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(100 kHz)

(+105 °C)

(mA r.m.s.)

Impedance

(100 kHz)

(+20 °C)

(Ω)

Endurance

(hours)

Lead

dia.

0d

Lead space

Long

lead

(pcs)

Taping

(pcs)

Straight

Taping

✽B

Taping

✽H

25

47 5 11 280 0.300 2000 0.5 2.0 5.0 2.5 EEUFM1E470( ) 200 2000

100 6.3 11.2 455 0.130 2000 0.5 2.5 5.0 2.5 EEUFM1E101( ) 200 2000

220 8 11.5 950 0.056 3000 0.6 3.5 5.0 EEUFM1E221( ) 200 1000

330 8 15 1240 0.041 3000 0.6 3.5 5.0 EEUFM1E331L( ) 200 1000

10 12.5 1290 0.038 4000 0.6 5.0 5.0 EEUFM1E331( ) 200 500

470 8 20 1560 0.030 4000 0.6 3.5 5.0 EEUFM1E471L( ) 200 1000

10 16 1790 0.026 4000 0.6 5.0 5.0 EEUFM1E471( ) 200 500

680 10 20 2180 0.019 5000 0.6 5.0 5.0 EEUFM1E681( ) 200 500

820 10 25 2470 0.018 5000 0.6 5.0 5.0 EEUFM1E821L( ) 200 500

1000 12.5 20 2600 0.018 5000 0.6 5.0 5.0 EEUFM1E102( ) 200 500

1500 12.5 25 3190 0.015 7000 0.6 5.0 5.0 EEUFM1E152( ) 200 500

1800 12.5 30 3630 0.013 7000 0.8 5.0 EEUFM1E182L 100

16 20 3300 0.017 5000 0.8 7.5 7.5 EEUFM1E182S( ) 100 250

2200 12.5 35 3750 0.012 7000 0.8 5.0 EEUFM1E222L 100

2700 16 25 3820 0.014 7000 0.8 7.5 7.5 EEUFM1E272( ) 100 250

35

33 5 11 280 0.300 2000 0.5 2.0 5.0 2.5 EEUFM1V330( ) 200 2000

68 6.3 11.2 455 0.130 2000 0.5 2.5 5.0 2.5 EEUFM1V680( ) 200 2000

150 8 11.5 950 0.056 3000 0.6 3.5 5.0 EEUFM1V151( ) 200 1000

220 8 15 1240 0.041 3000 0.6 3.5 5.0 EEUFM1V221L( ) 200 1000

10 12.5 1290 0.038 4000 0.6 5.0 5.0 EEUFM1V221( ) 200 500

330 8 20 1560 0.030 4000 0.6 3.5 5.0 EEUFM1V331L( ) 200 1000

10 16 1790 0.026 4000 0.6 5.0 5.0 EEUFM1V331( ) 200 500

470 10 20 2180 0.019 5000 0.6 5.0 5.0 EEUFM1V471( ) 200 500

560 10 25 2470 0.018 5000 0.6 5.0 5.0 EEUFM1V561L( ) 200 500

680 12.5 20 2600 0.018 5000 0.6 5.0 5.0 EEUFM1V681( ) 200 500

1000 12.5 25 3190 0.015 7000 0.6 5.0 5.0 EEUFM1V102( ) 200 500

1200 12.5 30 3630 0.013 7000 0.8 5.0 EEUFM1V122L 100

16 20 3300 0.017 5000 0.8 7.5 7.5 EEUFM1V122S( ) 100 250

1500 12.5 35 3750 0.012 7000 0.8 5.0 EEUFM1V152L 100

1800 16 25 3820 0.014 7000 0.8 7.5 7.5 EEUFM1V182( ) 100 250

50

22 5 11 250 0.340 2000 0.5 2.0 5.0 2.5 EEUFM1H220( ) 200 2000

56 6.3 11.2 405 0.140 2000 0.5 2.5 5.0 2.5 EEUFM1H560( ) 200 2000

100 8 11.5 870 0.061 3000 0.6 3.5 5.0 EEUFM1H101( ) 200 1000

120 8 15 1140 0.045 3000 0.6 3.5 5.0 EEUFM1H121L( ) 200 1000

150 10 12.5 1170 0.042 4000 0.6 5.0 5.0 EEUFM1H151( ) 200 500

180 8 20 1430 0.033 4000 0.6 3.5 5.0 EEUFM1H181L( ) 200 1000

220 10 16 1650 0.030 4000 0.6 5.0 5.0 EEUFM1H221( ) 200 500

270 10 20 1890 0.023 5000 0.6 5.0 5.0 EEUFM1H271( ) 200 500

330 10 25 2150 0.022 5000 0.6 5.0 5.0 EEUFM1H331L( ) 200 500

470 12.5 20 2260 0.022 5000 0.6 5.0 5.0 EEUFM1H471( ) 200 500

560 12.5 25 2660 0.018 7000 0.6 5.0 5.0 EEUFM1H561( ) 200 500

680 12.5 30 3160 0.016 7000 0.8 5.0 EEUFM1H681L 100

820 12.5 35 3270 0.014 7000 0.8 5.0 EEUFM1H821L 100

16 20 2870 0.019 5000 0.8 7.5 7.5 EEUFM1H821S( ) 100 250

1000 16 25 3320 0.016 7000 0.8 7.5 7.5 EEUFM1H102( ) 100 250

· When requesting taped product, please put the letter "B" or "H" be tween the "( )". Lead wire pitch ✽B=5 mm, 7.5 mm, H=2.5 mm.

· Please refer to the page of “Taping dimensions”.

Mar. 201602

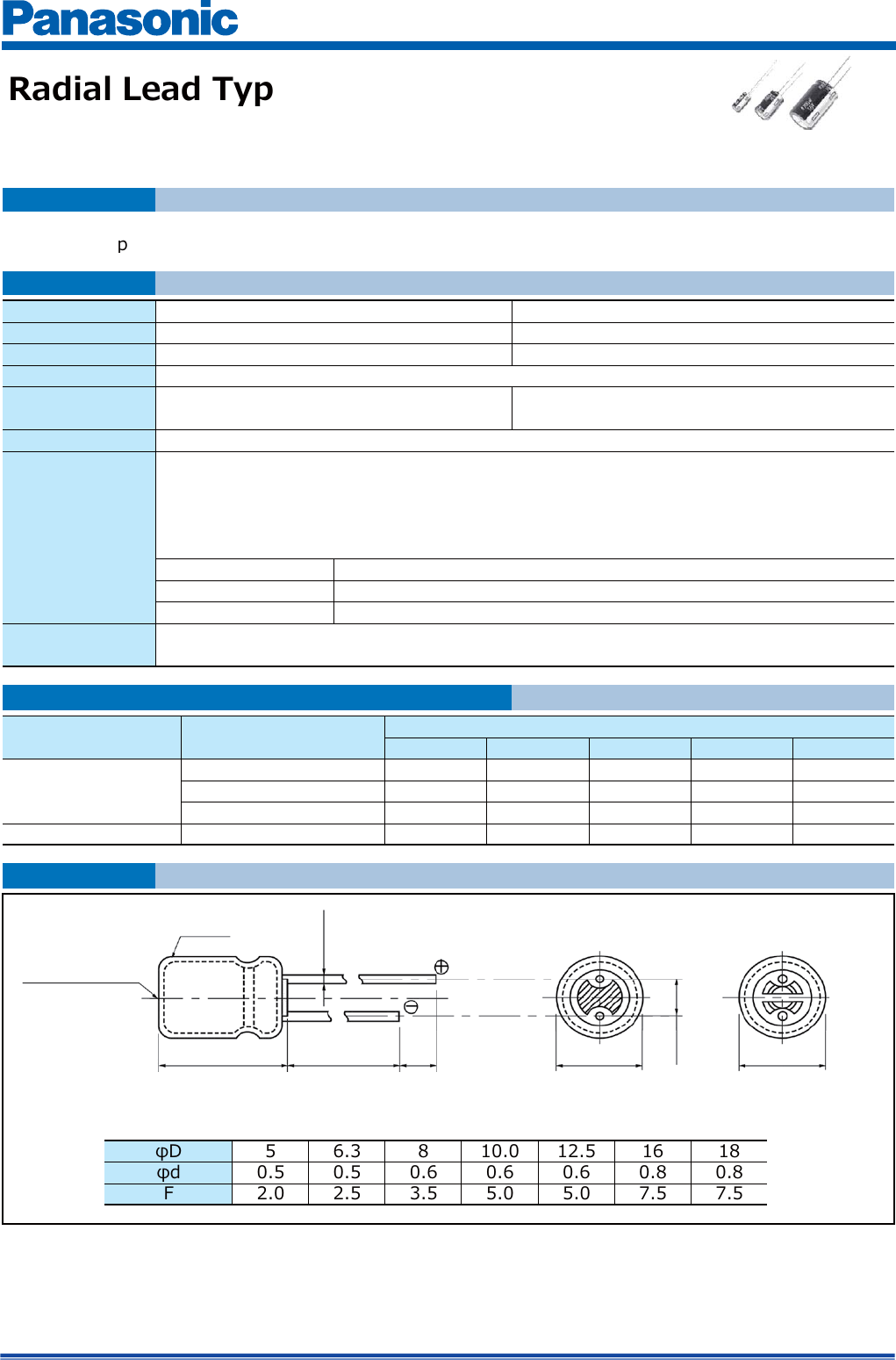

Panasonic wag! fix

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

0D±0.5

< 08010 <

F±0.5

Sleeve

14 min.

3 min.

L✽

(08×15 only L±1.5)✽ L < 16 : L±1.0

L > 20 : L±2.0

Pressure relief

06.3 <+

–

0D±0.5

fd±0.05

●Endurance : +105 °C 5000 h to 10000 h

●Hight ripple hight frequency (Hight Voltage)

●RoHS compliant

Features

Radial Lead Type

Series : EB Type : A

(Unit : mm)

Specifi cations

Category temperature range

–40 °C to +105 °C –25 °C to +105 °C

Rated voltage range 10 V.DC to 63 V.DC 160 V.DC to 450 V.DC

Capacitance range 2.2 µF to 3300 µF 10 µF to 330 µF

Capacitance tolerance ±20 % (120 Hz/+20 °C)

Leakage current I < 0.01 CV or 3 (µA)

After 2 minutes ap pli ca tion of rated working voltage at +20 °C (Whichever is greater)

Dissipation factor (tan d) Please see the attached characteristics list

Endurance

After following life test with DC voltage and +105 °C±2 °C ripple current value applied (The

sum of DC and ripple peak voltage shall not exceed the rated working voltage), when the

capacitors are restord to 20 °C, the capacitors shall meet the limits specifi ed below.

(10 V.DC to 63 V.DC)

Duration : 05×11 to 08×11.5 : 5000 hours 08×15 to 012.5×25 : 10000 hours

Capacitance change Within ±30 % of the initial value

tan d< 300 % of the initial limit

DC leakage current Within the initial limit

(160 V.DC to 450 V.DC)

Duration : 5000 hours

Capacitance change Within ±20 % of the initial value

tan d< 200 % of the initial limit

DC leakage current Within the initial limit

Shelf life After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits specifi ed in Endurance. (With voltage treatment)

0D 5 6.3 8 10 12.5 16 18

0d 0.5 0.5 0.6 0.6 0.6 0.8 0.8

F 2.0 2.5 3.5 5.0 5.0 7.5 7.5

(10 V.DC ~ 63 V.DC)

Capacitance

(µF)

Frequency (Hz)

60 120 1 k 10 k 100 k

2.2 to 10 0.75 1.00 1.40 1.55 1.65

22 to 470 0.85 1.00 1.20 1.25 1.30

1000 to 3300 0.95 1.00 1.05 1.10 1.15

Rated voltage

(V.DC)

Frequency (Hz)

120 1 k

10 k to 30k 30 k to 100k

160 to 250 0.55 0.85 0.90 1.00

350 to 450 0.50 0.80 0.90 1.00

Dimensions

Frequency correction factor for ripple current

Mar. 201602

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(120 Hz)

(+105 °C)

(mA r.m.s.)

tan d

(120 Hz)

(+20 °C)

Endurance

(hours)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

Taping

✽H

10

100 5 11 66 0.30 5000 0.5 2.0 5.0 2.5

EEUEB1A101S( )

200 2000

220 6.3 11.2 100 0.30 5000 0.5 2.5 5.0 2.5

EEUEB1A221S( )

200 2000

470 8 15 278 0.30 10000 0.6 3.5 5.0

EEUEB1A471( )

200 1000

8 11.5 180 0.30 5000 0.6 3.5 5.0

EEUEB1A471S( )

200 1000

2200 12.5 20 540 0.32 10000 0.6 5.0 5.0

EEUEB1A222( )

200 500

3300 12.5 25 802 0.34 10000 0.6 5.0 5.0

EEUEB1A332( )

200 500

16 1000 10 20 430 0.25 10000 0.6 5.0 5.0

EEUEB1C102( )

200 500

2200 12.5 25 706 0.27 10000 0.6 5.0 5.0

EEUEB1C222( )

200 500

25

47 5 11 55 0.22 5000 0.5 2.0 5.0 2.5

EEUEB1E470S( )

200 2000

100 6.3 11.2 95 0.22 5000 0.5 2.5 5.0 2.5

EEUEB1E101S( )

200 2000

220 8 11.5 125 0.22 5000 0.6 3.5 5.0

EEUEB1E221S( )

200 1000

330 8 15 255 0.22 10000 0.6 3.5 5.0

EEUEB1E331( )

200 1000

470 10 16 321 0.22 10000 0.6 5.0 5.0

EEUEB1E471( )

200 500

1000 12.5 20 498 0.22 10000 0.6 5.0 5.0

EEUEB1E102( )

200 500

35

33 5 11 46 0.18 5000 0.5 2.0 5.0 2.5

EEUEB1V330S( )

200 2000

220 8 15 197 0.18 10000 0.6 3.5 5.0

EEUEB1V221( )

200 1000

330 10 16 278 0.18 10000 0.6 5.0 5.0

EEUEB1V331( )

200 500

470 10 20 349 0.18 10000 0.6 5.0 5.0

EEUEB1V471( )

200 500

1000 12.5 25 586 0.18 10000 0.6 5.0 5.0

EEUEB1V102( )

200 500

50

2.2 5 11 15 0.15 5000 0.5 2.0 5.0 2.5

EEUEB1H2R2S( )

200 2000

3.3 5 11 18 0.15 5000 0.5 2.0 5.0 2.5

EEUEB1H3R3S( )

200 2000

4.7 5 11 18 0.15 5000 0.5 2.0 5.0 2.5

EEUEB1H4R7S( )

200 2000

10 5 11 27 0.15 5000 0.5 2.0 5.0 2.5

EEUEB1H100S( )

200 2000

22 5 11 39 0.15 5000 0.5 2.0 5.0 2.5

EEUEB1H220S( )

200 2000

47 6.3 11.2 61 0.15 5000 0.5 2.5 5.0 2.5

EEUEB1H470S( )

200 2000

100 8 11.5 99 0.15 5000 0.6 3.5 5.0

EEUEB1H101S( )

200 1000

220 10 16 234 0.15 10000 0.6 5.0 5.0

EEUEB1H221( )

200 500

330 10 20 293 0.15 10000 0.6 5.0 5.0

EEUEB1H331( )

200 500

470 12.5 20 370 0.15 10000 0.6 5.0 5.0

EEUEB1H471( )

200 500

63

2.2 5 11 16.5 0.12 5000 0.5 2.0 5.0 2.5

EEUEB1J2R2S( )

200 2000

3.3 5 11 20 0.12 5000 0.5 2.0 5.0 2.5

EEUEB1J3R3S( )

200 2000

4.7 5 11 23 0.12 5000 0.5 2.0 5.0 2.5

EEUEB1J4R7S( )

200 2000

10 5 11 30 0.12 5000 0.5 2.0 5.0 2.5

EEUEB1J100S( )

200 2000

22 6.3 11.2 40 0.12 5000 0.5 2.5 5.0 2.5

EEUEB1J220S( )

200 2000

33 6.3 11.2 50 0.12 5000 0.5 2.5 5.0 2.5

EEUEB1J330S( )

200 2000

47 8 15 94 0.12 10000 0.6 3.5 5.0

EEUEB1J470( )

200 1000

8 11.5 80 0.12 5000 0.6 3.5 5.0

EEUEB1J470S( )

200 1000

100 8 15 180 0.12 10000 0.6 3.5 5.0

EEUEB1J101( )

200 1000

220 10 20 292 0.12 10000 0.6 5.0 5.0

EEUEB1J221( )

200 500

330 12.5 20 381 0.12 10000 0.6 5.0 5.0

EEUEB1J331( )

200 500

470 12.5 25 454 0.12 10000 0.6 5.0 5.0

EEUEB1J471( )

200 500

· When requesting taped product, please put the letter "B" or "H" be tween the "( )". Lead wire pitch ✽B=5 mm, 7.5 mm, H=2.5 mm.

· Please refer to the page of “Taping dimensions”.

Endurance : 105 °C 05×11 to 08×11.5=5000 h, 08×15 to 012.5×25=10000 h

Mar. 201602

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(120 Hz)

(+105 °C)

(mA r.m.s.)

tan d

(120 Hz)

(+20 °C)

Endurance

(hours)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

160

22 10 20 470 0.15 5000 0.6 5.0 5.0 EEUEB2C220( ) 200 500

33 10 20 470 0.15 5000 0.6 5.0 5.0 EEUEB2C330( ) 200 500

47 12.5 20 600 0.15 5000 0.6 5.0 5.0 EEUEB2C470( ) 200 500

68 12.5 25 750 0.15 5000 0.6 5.0 5.0 EEUEB2C680( ) 200 500

16 20 750 0.15 5000 0.8 7.5 7.5 EEUEB2C680S( ) 100 250

100 16 25 1060 0.15 5000 0.8 7.5 7.5 EEUEB2C101( ) 100 250

18 20 1060 0.15 5000 0.8 7.5 7.5 EEUEB2C101S( ) 100 250

150 16 31.5 1280 0.15 5000 0.8 7.5 – EEUEB2C151 100 –

18 25 1280 0.15 5000 0.8 7.5 7.5 EEUEB2C151S( ) 100 250

220 16 31.5 1280 0.15 5000 0.8 7.5 – EEUEB2C221 100 –

18 25 1280 0.15 5000 0.8 7.5 7.5 EEUEB2C221S( ) 100 250

330 18 31.5 1690 0.15 5000 0.8 7.5 – EEUEB2C331 50 –

200

22 10 20 470 0.15 5000 0.6 5.0 5.0 EEUEB2D220( ) 200 500

33 12.5 20 600 0.15 5000 0.6 5.0 5.0 EEUEB2D330( ) 200 500

47 12.5 20 600 0.15 5000 0.6 5.0 5.0 EEUEB2D470( ) 200 500

68 12.5 25 750 0.15 5000 0.6 5.0 5.0 EEUEB2D680( ) 200 500

16 20 750 0.15 5000 0.8 7.5 7.5 EEUEB2D680S( ) 100 250

100 16 25 1060 0.15 5000 0.8 7.5 7.5 EEUEB2D101( ) 100 250

18 20 1060 0.15 5000 0.8 7.5 7.5 EEUEB2D101S( ) 100 250

150 16 31.5 1280 0.15 5000 0.8 7.5 – EEUEB2D151 100 –

18 25 1280 0.15 5000 0.8 7.5 7.5 EEUEB2D151S( ) 100 250

220 18 31.5 1690 0.15 5000 0.8 7.5 – EEUEB2D221 50 –

250

22 12.5 20 560 0.15 5000 0.6 5.0 5.0 EEUEB2E220( ) 200 500

33 12.5 20 560 0.15 5000 0.6 5.0 5.0 EEUEB2E330( ) 200 500

47 12.5 25 710 0.15 5000 0.6 5.0 5.0 EEUEB2E470( ) 200 500

16 20 710 0.15 5000 0.8 7.5 7.5 EEUEB2E470S( ) 100 250

68 16 25 990 0.15 5000 0.8 7.5 7.5 EEUEB2E680( ) 100 250

18 20 990 0.15 5000 0.8 7.5 7.5 EEUEB2E680S( ) 100 250

100 16 31.5 1200 0.15 5000 0.8 7.5 – EEUEB2E101 100 –

18 25 1200 0.15 5000 0.8 7.5 7.5 EEUEB2E101S( ) 100 250

150 18 31.5 1470 0.15 5000 0.8 7.5 – EEUEB2E151 50 –

350

10 10 20 270 0.20 5000 0.6 5.0 5.0 EEUEB2V100( ) 200 500

22 12.5 20 350 0.20 5000 0.6 5.0 5.0 EEUEB2V220( ) 200 500

33 16 20 480 0.20 5000 0.8 7.5 7.5 EEUEB2V330S( ) 100 250

47 16 25 640 0.20 5000 0.8 7.5 7.5 EEUEB2V470( ) 100 250

18 20 640 0.20 5000 0.8 7.5 7.5 EEUEB2V470S( ) 100 250

68 16 31.5 780 0.20 5000 0.8 7.5 – EEUEB2V680 100 –

18 25 780 0.20 5000 0.8 7.5 7.5 EEUEB2V680S( ) 100 250

100 18 31.5 970 0.20 5000 0.8 7.5 – EEUEB2V101 50 –

400

10 10 20 250 0.24 5000 0.6 5.0 5.0 EEUEB2G100( ) 200 500

22 12.5 25 410 0.24 5000 0.6 5.0 5.0 EEUEB2G220( ) 200 500

16 20 410 0.24 5000 0.8 7.5 7.5 EEUEB2G220S( ) 100 250

33 16 25 600 0.24 5000 0.8 7.5 7.5 EEUEB2G330( ) 100 250

18 20 600 0.24 5000 0.8 7.5 7.5 EEUEB2G330S( ) 100 250

47 16 31.5 730 0.24 5000 0.8 7.5 – EEUEB2G470 100 –

18 25 730 0.24 5000 0.8 7.5 7.5 EEUEB2G470S( ) 100 250

450

10 12.5 20 310 0.24 5000 0.6 5.0 5.0 EEUEB2W100( ) 200 500

22 16 25 560 0.24 5000 0.8 7.5 7.5 EEUEB2W220( ) 100 250

18 20 560 0.24 5000 0.8 7.5 7.5 EEUEB2W220S( ) 100 250

33 16 31.5 680 0.24 5000 0.8 7.5 – EEUEB2W330( ) 100 –

18 25 680 0.24 5000 0.8 7.5 7.5 EEUEB2W330S( ) 100 250

47 18 31.5 850 0.24 5000 0.8 7.5 – EEUEB2W470 50 –

· When requesting taped product, please put the letter "B" be tween the "( )". Lead wire pitch ✽B=5 mm, 7.5 mm.

· Please refer to the page of “Taping dimensions”.

Endurance : 105 °C 5000 h

Mar. 201602

Panasonic Pressure rehei S‘eeve L12 0 F105

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

0D±0.5

F±0.5

Sleeve

14 min.

3 min.

L±2.0

Pressure relief +

–

fd±0.05

●High ripple current (at high frequency) : 40 % higher than ED Series

●Endurance : 105 °C 8000 h to 10000 h

●RoHS compliant

Features

Radial Lead Type

Series : EE Type : A

(Unit : mm)

Specifi cations

Dimensions

0D 10 12.5 16 18

0d 0.6 0.6 0.8 0.8

F 5.0 5.0 7.5 7.5

Category temperature range

–25 °C to + 105 °C

Rated voltage range 160 V .DC to 450 V .DC

Capacitance range 10 µF to 330 µF

Capacitance tolerance ±20 % (120 Hz/+20 °C)

Leakage current I < 0.06 CV +10 (µA) After 2 minutes

Dissipation factor

(tan d)

V.DC 160 200 250 350 400 450 (120 Hz/+20 °C)

tan d0.15 0.15 0.15 0.20 0.24 0.24

Endurance

After following life test with DC voltage and +105 °C±2 °C ripple current value applied

(The sum of DC and ripple peak voltage shall not exceed the rated working voltage),

when the capacitors are restored to 20 °C, the capacitors shall meet the limits specifi ed below.

Duration

010 : 8000 hours

012.5 to 018 : 10000 hours

Capacitance change Within ±20 % of the initial value

tan d< 200 % of the initial limit

DC leakage current Within the initial limit

Shelf life After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits specifi ed in Endurance. (With voltage treatment)

Rated voltage

(V.DC)

Capacitance

(µF)

Frequency (Hz)

60 <120 <300 <1 k <10 k <100 k <

160 to 450 10 to 82 0.25 0.35 0.50 0.65 0.90 1.00

100 to 330 0.30 0.40 0.55 0.70 0.90 1.00

Frequency correction factor for ripple current

Mar. 201603

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Case size/Ripple current

Capacitance

(µF)

160 V.DC 200 V.DC

Case size (mm)

(0D×L)

Ripple current

(mA r.m.s.) 105 °C Case size (mm)

(0D×L)

Ripple current

(mA r.m.s.) 105 °C

120 Hz 100 kHz 120 Hz 100 kHz

22 10 × 20 245 700 10 × 20 300 850

33 10 × 20 280 810 10 × 20 320 920

47 10 × 20 370 1065 12.5 × 20 385 1100

68 12.5 × 20 470 1350 12.5 × 25

16 × 20S

465

1330

82 12.5 × 25 520 1480 16 × 20S 510 1460

100 12.5 × 25

16 × 20S

660

680

1660

1700

16 × 25

18 × 20S

690

670

1730

1665

150 16 × 25

18 × 20S

755

730

1890

1820 16 × 25 740 1860

220 16 × 31.5

18 × 25S

910

780

2280

1950 18 × 31.5 1175 2600

330 18 × 31.5 1040 2600 18 × 40 1250 3120

Capacitance

(µF)

250 V.DC 350 V.DC

Case size (mm)

(0D×L)

Ripple current

(mA r.m.s.) 105 °C Case size (mm)

(0D×L)

Ripple current

(mA r.m.s.) 105 °C

120 Hz 100 kHz 120 Hz 100 kHz

15 10 × 20 170 480

22 10 × 20 275 785 12.5 × 20 230 660

33 12.5 × 20 350 995 12.5 × 25

16 × 20S

275

315

790

900

47 12.5 × 25

16 × 20S

450

490

1290

1400

16 × 25

18 × 20S

375

1070

68 16 × 20S 490 1400 16 × 31.5

18 × 25S

535

465

1530

1330

82 16 × 25

18 × 20S

590

1680

1680 18 × 25S 535 1530

100 16 × 31.5

18 × 25S

840

2100

2100 18 × 31.5 640 1600

150 18 × 31.5 1010 2520

220 18 × 40 1175 2940

Capacitance

(µF)

400 V.DC 450 V.DC

Case size (mm)

(0D×L)

Ripple current

(mA r.m.s.) 105 °C Case size (mm)

(0D×L)

Ripple current

(mA r.m.s.) 105 °C

120 Hz 100 kHz 120 Hz 100 kHz

10 10 × 20 150 430 10 × 20U

12.5 × 20

115

170

330

490

15 12.5 × 20 205 590 12.5 × 25 270 780

22 12.5 × 25

16 × 20S

265

300

760

860 16 × 20S 330 945

33 16 × 20S 355 1020 16 × 25

18 × 20S

350

1000

47 16 × 25

18 × 20S

410

118 0

16 × 31.5

18 × 25S

420

1200

56 18 × 31.5 480 1380

68 18 × 25 515 1470 18 × 40 630 1800

82 18 × 31.5 575 1645

100 18 × 40 825 2060

Mar. 201603

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

Endurance : 105 °C 010=8000 h, 012.5 to 018=10000 h

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(100 kHz)

(+105 °C)

(mA r.m.s.)

tan d

(120 Hz)

(+20 °C)

Endurance

(hours)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

160

22 10 20 700 0.15 8000 0.6 5.0 5.0 EEUEE2C220( ) 200 500

33 10 20 810 0.15 8000 0.6 5.0 5.0 EEUEE2C330( ) 200 500

47 10 20 1065 0.15 8000 0.6 5.0 5.0 EEUEE2C470( ) 200 500

68 12.5 20 1350 0.15 10000 0.6 5.0 5.0 EEUEE2C680( ) 200 500

82 12.5 25 1480 0.15 10000 0.6 5.0 5.0 EEUEE2C820( ) 200 500

100 12.5 25 1660 0.15 10000 0.6 5.0 5.0 EEUEE2C101( ) 200 500

16 20 1700 0.15 10000 0.8 7.5 7.5 EEUEE2C101S( ) 100 250

150 16 25 1890 0.15 10000 0.8 7.5 7.5 EEUEE2C151( ) 100 250

18 20 1820 0.15 10000 0.8 7.5 7.5 EEUEE2C151S( ) 100 250

220 16 31.5 2280 0.15 10000 0.8 7.5 EEUEE2C221 100

18 25 1950 0.15 10000 0.8 7.5 7.5 EEUEE2C221S( ) 100 250

330 18 31.5 2600 0.15 10000 0.8 7.5 EEUEE2C331 50

200

22 10 20 850 0.15 8000 0.6 5.0 5.0 EEUEE2D220( ) 200 500

33 10 20 920 0.15 8000 0.6 5.0 5.0 EEUEE2D330( ) 200 500

47 12.5 20 1100 0.15 10000 0.6 5.0 5.0 EEUEE2D470( ) 200 500

68 12.5 25 1330 0.15 10000 0.6 5.0 5.0 EEUEE2D680( ) 200 500

16 20 1330 0.15 10000 0.8 7.5 7.5 EEUEE2D680S( ) 100 250

82 16 20 1460 0.15 10000 0.8 7.5 7.5 EEUEE2D820S( ) 100 250

100 16 25 1730 0.15 10000 0.8 7.5 7.5 EEUEE2D101( ) 100 250

18 20 1665 0.15 10000 0.8 7.5 7.5 EEUEE2D101S( ) 100 250

150 16 25 1860 0.15 10000 0.8 7.5 7.5 EEUEE2D151( ) 100 250

220 18 31.5 2600 0.15 10000 0.8 7.5 EEUEE2D221 50

330 18 40 3120 0.15 10000 0.8 7.5 EEUEE2D331 50

250

22 10 20 785 0.15 8000 0.6 5.0 5.0 EEUEE2E220( ) 200 500

33 12.5 20 995 0.15 10000 0.6 5.0 5.0 EEUEE2E330( ) 200 500

47 12.5 25 1290 0.15 10000 0.6 5.0 5.0 EEUEE2E470( ) 200 500

16 20 1400 0.15 10000 0.8 7.5 7.5 EEUEE2E470S( ) 100 250

68 16 20 1400 0.15 10000 0.8 7.5 7.5 EEUEE2E680S( ) 100 250

82 16 25 1680 0.15 10000 0.8 7.5 7.5 EEUEE2E820( ) 100 250

18 20 1680 0.15 10000 0.8 7.5 7.5 EEUEE2E820S( ) 100 250

100 16 31.5 2100 0.15 10000 0.8 7.5 EEUEE2E101 100

18 25 2100 0.15 10000 0.8 7.5 7.5 EEUEE2E101S( ) 100 250

150 18 31.5 2520 0.15 10000 0.8 7.5 EEUEE2E151 50

220 18 40 2940 0.15 10000 0.8 7.5 EEUEE2E221 50

350

15 10 20 480 0.20 8000 0.6 5.0 5.0 EEUEE2V150( ) 200 500

22 12.5 20 660 0.20 10000 0.6 5.0 5.0 EEUEE2V220( ) 200 500

33 12.5 25 790 0.20 10000 0.6 5.0 5.0 EEUEE2V330( ) 200 500

16 20 900 0.20 10000 0.8 7.5 7.5 EEUEE2V330S( ) 100 250

47 16 25 1070 0.20 10000 0.8 7.5 7.5 EEUEE2V470( ) 100 250

18 20 1070 0.20 10000 0.8 7.5 7.5 EEUEE2V470S( ) 100 250

68 16 31.5 1530 0.20 10000 0.8 7.5 EEUEE2V680 100

18 25 1330 0.20 10000 0.8 7.5 7.5 EEUEE2V680S( ) 100 250

82 18 25 1530 0.20 10000 0.8 7.5 7.5 EEUEE2V820S( ) 100 250

100 18 31.5 1600 0.20 10000 0.8 7.5 EEUEE2V101 50

· When requesting taped product, please put the letter "B" be tween the "( )". Lead wire pitch ✽B=5 mm, 7.5 mm.

· Please refer to the page of “Taping dimensions”.

Mar. 201603

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

Endurance : 105 °C 010=8000 h, 012.5 to 018=10000 h

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(100 kHz)

(+105 °C)

(mA r.m.s.)

tan d

(120 Hz)

(+20 °C)

Endurance

(hours)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

400

10 10 20 430 0.24 8000 0.6 5.0 5.0 EEUEE2G100( ) 200 500

15 12.5 20 590 0.24 10000 0.6 5.0 5.0 EEUEE2G150( ) 200 500

22 12.5 25 760 0.24 10000 0.6 5.0 5.0 EEUEE2G220( ) 200 500

16 20 860 0.24 10000 0.8 7.5 7.5 EEUEE2G220S( ) 100 250

33 16 20 1020 0.24 10000 0.8 7.5 7.5 EEUEE2G330S( ) 100 250

47 16 25 1180 0.24 10000 0.8 7.5 7.5 EEUEE2G470( ) 100 250

18 20 1180 0.24 10000 0.8 7.5 7.5 EEUEE2G470S( ) 100 250

68 18 25 1470 0.24 10000 0.8 7.5 7.5 EEUEE2G680( ) 100 250

82 18 31.5 1645 0.24 10000 0.8 7.5 EEUEE2G820 50

100 18 40 2060 0.24 10000 0.8 7.5 EEUEE2G101 50

450

10 10 20 330 0.24 8000 0.6 5.0 5.0 EEUEE2W100U( ) 200 500

12.5 20 490 0.24 10000 0.6 5.0 5.0 EEUEE2W100( ) 200 500

15 12.5 25 780 0.24 10000 0.6 5.0 5.0 EEUEE2W150( ) 200 500

22 16 20 945 0.24 10000 0.8 7.5 7.5 EEUEE2W220S( ) 100 250

33 16 25 1000 0.24 10000 0.8 7.5 7.5 EEUEE2W330( ) 100 250

18 20 1000 0.24 10000 0.8 7.5 7.5 EEUEE2W330S( ) 100 250

47 16 31.5 1200 0.24 10000 0.8 7.5 EEUEE2W470 100

18 25 1200 0.24 10000 0.8 7.5 7.5 EEUEE2W470S( ) 100 250

56 18 31.5 1380 0.24 10000 0.8 7.5 EEUEE2W560 50

68 18 40 1800 0.24 10000 0.8 7.5 EEUEE2W680 50

· When requesting taped product, please put the letter "B" be tween the "( )". Lead wire pitch ✽B=5 mm, 7.5 mm.

· Please refer to the page of “Taping dimensions”.

Mar. 201603

Panasonic Pressure rehe! W, 14 mm F20 5 3 Hun o

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

08

0D±0.5

F±0.5

Sleeve

14 min.

3 min.

L✽

✽ L < 16 : L±1.0 (016×15, 018×15 : L±1.5)

L > 20 : L±2.0

Pressure relief +

–

010 <

0D±0.5

fd±0.05

●Endurance: 125 °C 2000 h

●Heat cycle: 1000 cycle –40 °C to +125 °C

●RoHS compliant

Features

(Unit : mm)

Specifi cations

Dimensions

Frequency correction factor for ripple current

Radial Lead Type

Series : TA Type : A

0D 8 10 12.5 16 18

0d 0.6 0.6 0.6 0.8 0.8

F 3.5 5.0 5.0 7.5 7.5

Category temperature range

–40 °C to + 125 °C

Rated voltage range 10 V .DC to 63 V .DC

Capacitance range 2.2 µF to 4700 µF

Capacitance tolerance ±20 % (120 Hz/+20 °C)

Leakage current I < 0.01 CV or 3 (µA) After 2 minutes (Whichever is greater)

Dissipation factor

(tan d)

V.DC 10 16 25 35 50 63 (120Hz / +20 °C)

tan d0.20 0.16 0.14 0.12 0.10 0.09

For capacitance value > 1000 µF , add 0.02 per every 1000 µF.

Endurance

After following life test with DC voltage and +125 °C±2 °C ripple current value applied (The sum

of DC and ripple peak voltage shall not exceed the rated working voltage), for 2000 hours,

when the capacitors are restored to 20 °C, the capacitors, shall meet the limits specifi ed below.

Capacitance change Within ±30 % of the initial value

tan d< 300 % of the initial limit

DC leakage current Within the initial limit

Shelf life After storage for 1000 hours at +125 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits specifi ed in Endurance. (With voltage treatment)

AEC-Q200 AEC-Q200 compliant

Rated voltage

(V.DC)

Capacitance

(µF)

Frequency (Hz)

60 120 1 k 10 k 100 k

10 to 63

2.2 to 330 0.55 0.65 0.85 0.90 1.00

470 to 1000 0.70 0.75 0.90 0.95 1.00

2200 to 4700 0.75 0.80 0.90 0.95 1.00

Oct. 201605

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(100 kHz)

(+125 °C)

(mA r.m.s.)

Impedance

(100 kHz)

(+20 °C)

(Ω)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight Taping

✽B

10

330 8 11.5 500 0.130 0.6 3.5 5.0 EEUTA1A331( ) 200 1000

470 10 12.5 680 0.100 0.6 5.0 5.0 EEUTA1A471( ) 200 500

1000 10 20 1100 0.057 0.6 5.0 5.0 EEUTA1A102( ) 200 500

12.5 15 1085 0.070 0.6 5.0 5.0 EEUTA1A102S( ) 200 500

2200

12.5 25 1750 0.033 0.6 5.0 5.0 EEUTA1A222L( ) 200 500

16 20 1985 0.032 0.8 7.5 7.5 EEUTA1A222( ) 100 250

18 15 1800 0.042 0.8 7.5 7.5 EEUTA1A222S( ) 100 250

3300 16 25 2300 0.024 0.8 7.5 7.5 EEUTA1A332( ) 100 250

18 20 2250 0.031 0.8 7.5 7.5 EEUTA1A332S( ) 100 250

4700 16 31.5 2710 0.020 0.8 7.5 EEUTA1A472 100

18 25 2470 0.022 0.8 7.5 7.5 EEUTA1A472S( ) 100 250

16

220 8 11.5 500 0.130 0.6 3.5 5.0 EEUTA1C221( ) 200 1000

330 10 12.5 680 0.100 0.6 5.0 5.0 EEUTA1C331( ) 200 500

470 10 16 945 0.075 0.6 5.0 5.0 EEUTA1C471( ) 200 500

1000 12.5 20 1490 0.042 0.6 5.0 5.0 EEUTA1C102( ) 200 500

16 15 1520 0.047 0.8 7.5 7.5 EEUTA1C102S( ) 100 250

2200 16 25 2300 0.024 0.8 7.5 7.5 EEUTA1C222( ) 100 250

18 20 2250 0.031 0.8 7.5 7.5 EEUTA1C222S( ) 100 250

3300 16 31.5 2710 0.020 0.8 7.5 EEUTA1C332 100

18 25 2470 0.022 0.8 7.5 7.5 EEUTA1C332S( ) 100 250

4700 18 31.5 3270 0.018 0.8 7.5 EEUTA1C472 50

25

100 8 11.5 500 0.130 0.6 3.5 5.0 EEUTA1E101( ) 200 1000

220 10 12.5 680 0.100 0.6 5.0 5.0 EEUTA1E221( ) 200 500

330 10 16 945 0.075 0.6 5.0 5.0 EEUTA1E331( ) 200 500

470 10 20 1100 0.057 0.6 5.0 5.0 EEUTA1E471( ) 200 500

12.5 15 1085 0.070 0.6 5.0 5.0 EEUTA1E471S( ) 200 500

1000

12.5 25 1750 0.033 0.6 5.0 5.0 EEUTA1E102L( ) 200 500

16 20 1985 0.032 0.8 7.5 7.5 EEUTA1E102( ) 100 250

18 15 1800 0.042 0.8 7.5 7.5 EEUTA1E102S( ) 100 250

2200 16 31.5 2710 0.020 0.8 7.5 EEUTA1E222 100

18 25 2470 0.022 0.8 7.5 7.5 EEUTA1E222S( ) 100 250

3300 18 35.5 3310 0.017 0.8 7.5 EEUTA1E332 50

35

100 10 12.5 555 0.180 0.6 5.0 5.0 EEUTA1V101( ) 200 500

220 10 16 765 0.130 0.6 5.0 5.0 EEUTA1V221( ) 200 500

330 10 20 930 0.100 0.6 5.0 5.0 EEUTA1V331( ) 200 500

470 12.5 20 1330 0.070 0.6 5.0 5.0 EEUTA1V471( ) 200 500

16 15 1450 0.088 0.8 7.5 7.5 EEUTA1V471S( ) 100 250

1000 16 25 2010 0.037 0.8 7.5 7.5 EEUTA1V102( ) 100 250

18 20 2180 0.046 0.8 7.5 7.5 EEUTA1V102S( ) 100 250

2200 18 35.5 2790 0.025 0.8 7.5 EEUTA1V222 50

· When requesting taped product, please put the letter "B" be tween the "( )". Lead wire pitch ✽B=5 mm, 7.5 mm.

· Please refer to the page of “Taping dimensions”.

Characteristics list

Endurance : 125 °C 2000 h

Oct. 201605

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

Endurance : 125 °C 2000 h

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(100 kHz)

(+125 °C)

(mA r.m.s.)

Impedance

(100 kHz)

(+20 °C)

(Ω)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight Taping

✽B

50

10 8 11.5 180 0.950 0.6 3.5 5.0 EEUTA1H100( ) 200 1000

22 8 11.5 250 0.650 0.6 3.5 5.0 EEUTA1H220( ) 200 1000

33 8 11.5 300 0.450 0.6 3.5 5.0 EEUTA1H330( ) 200 1000

47 8 11.5 440 0.350 0.6 3.5 5.0 EEUTA1H470S( ) 200 1000

100 10 12.5 555 0.180 0.6 5.0 5.0 EEUTA1H101( ) 200 500

220 10 20 930 0.100 0.6 5.0 5.0 EEUTA1H221( ) 200 500

330 12.5 20 1330 0.070 0.6 5.0 5.0 EEUTA1H331( ) 200 500

16 15 1450 0.088 0.8 7.5 7.5 EEUTA1H331S( ) 100 250

470

12.5 25 1650 0.055 0.6 5.0 5.0 EEUTA1H471L( ) 200 500

16 20 1650 0.053 0.8 7.5 7.5 EEUTA1H471( ) 100 250

18 15 1710 0.075 0.8 7.5 7.5 EEUTA1H471S( ) 100 250

1000 16 31.5 2430 0.031 0.8 7.5 EEUTA1H102 100

18 25 2350 0.032 0.8 7.5 7.5 EEUTA1H102S( ) 100 250

63

22 8 11.5 310 0.470 0.6 3.5 5.0 EEUTA1J220( ) 200 1000

33 10 12.5 410 0.360 0.6 5.0 5.0 EEUTA1J330( ) 200 500

47 10 16 460 0.270 0.6 5.0 5.0 EEUTA1J470( ) 200 500

100 10 20 680 0.205 0.6 5.0 5.0 EEUTA1J101( ) 200 500

220

12.5 25 1325 0.100 0.6 5.0 5.0 EEUTA1J221L( ) 200 500

16 20 1360 0.085 0.8 7.5 7.5 EEUTA1J221( ) 100 250

18 15 1300 0.120 0.8 7.5 7.5 EEUTA1J221S( ) 100 250

330 16 25 1660 0.070 0.8 7.5 7.5 EEUTA1J331( ) 100 250

18 20 1760 0.077 0.8 7.5 7.5 EEUTA1J331S( ) 100 250

470 16 31.5 2055 0.060 0.8 7.5 EEUTA1J471 100

18 25 1990 0.060 0.8 7.5 7.5 EEUTA1J471S( ) 100 250

· When requesting taped product, please put the letter "B" be tween the "( )". Lead wire pitch ✽B=5 mm, 7.5 mm.

· Please refer to the page of “Taping dimensions”.

Oct. 201605

Panasonic Pressure reher 14 mm 3n v1 F20 5 7. 5m

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

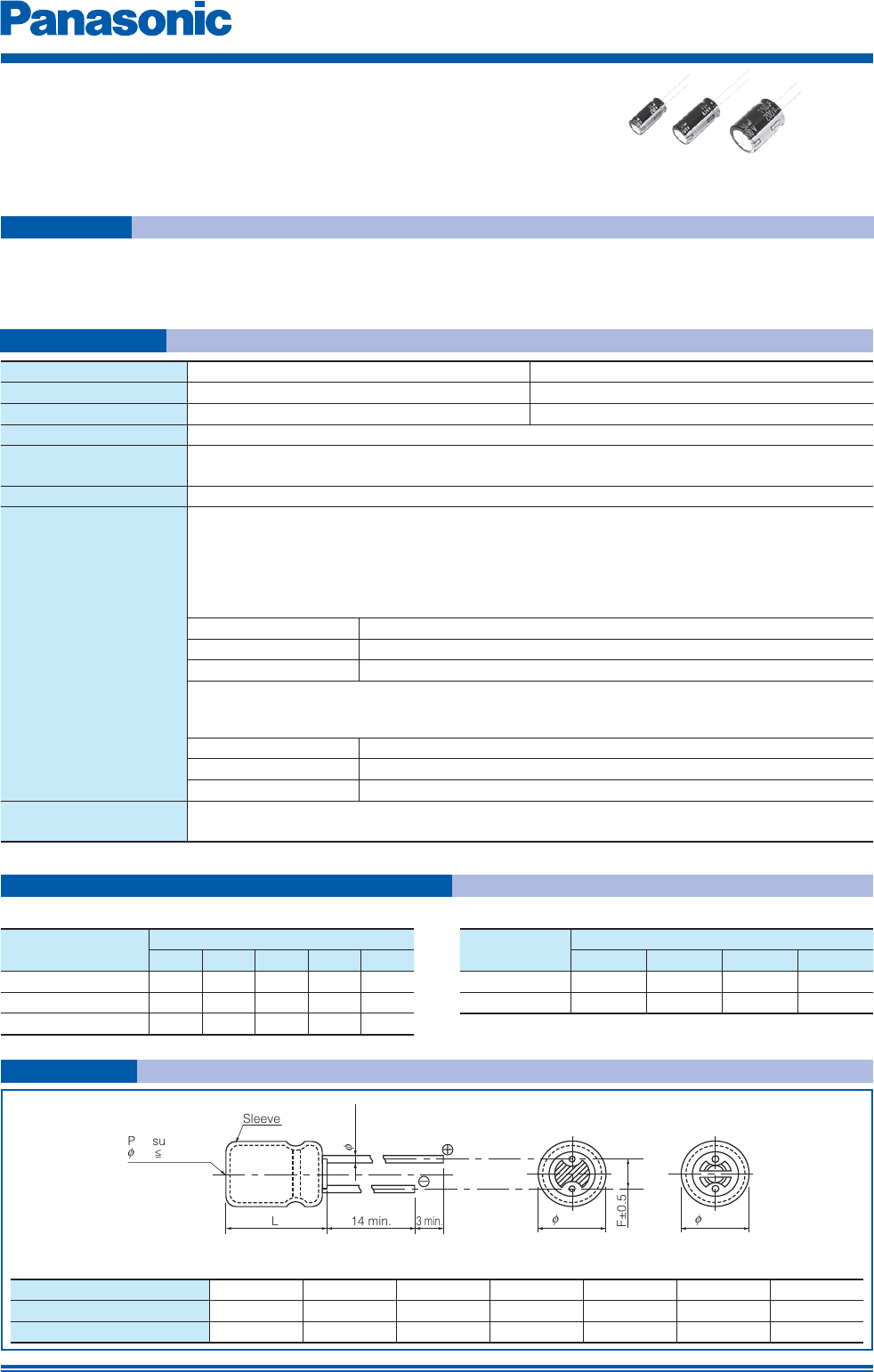

Aluminum Electrolytic Capacitors (Radial Lead Type)

08

0D±0.5

F±0.5

Sleeve

14 min.

3 min.

L✽

✽ L < 16 : L±1.5

L > 20 : L±2.0

Pressure relief +

–

010 <

0D±0.5

fd±0.05

●Endurance : 125 °C 2000 h to 5000 h or 135 °C 1000 h to 2000 h

●Smaller than series TA

●High ripple current (at high frequency) : 20 to 40% higher than TA series

●RoHS compliant

Features

Specifi cations

Frequency correction factor for ripple current

Radial Lead Type

Series : TP Type : A

0D81012.516

18

0d 0.6 0.6 0.6 0.8 0.8

F3.55.05.07.5

7.5

Category temperature range

–40 °C to + 135 °C

Rated voltage range 25 V .DC to 35 V .DC

Capacitance range 100 µF to 5100 µF

Capacitance tolerance ±20 % (120 Hz/+20 °C)

Leakage current I < 0.01 CV After 2 minutes

Dissipation factor

(tan d)

V.DC 25 35 (120Hz / +20 °C)

tan d0.14 0.12

For capacitance value > 1000 µF , add 0.02 per every 1000 µF.

Endurance 1

After following life test with DC voltage and +125 °C±2 °C ripple current value applied. (The

sum of DC and ripple peak voltage shall not exceed the rated working voltage) when the

capacitors are restored to 20 °C, the capacitors shall meet the limits specifi ed below.

Duration

08 : 2000 hours, 010 : 3000 hours, 012.5 : 4000 hours, 016 to 018 : 5000 hours

Capacitance change Within ±30 % of the initial value

tan d< 300 % of the initial limit

DC leakage current Within the initial limit

Endurance 2

After following life test with DC voltage and +135 °C±2 °C ripple current value applied. (The

sum of DC and ripple peak voltage shall not exceed the rated working voltage) when the

capacitors are restored to 20 °C, the capacitors shall meet the limits specifi ed below.

Duration

08 : 1000 hours, 010 to 018 : 2000 hours

Capacitance change Within ±30 % of the initial value

tan d< 300 % of the initial limit

DC leakage current Within the initial limit

Shelf Life 1 After storage for 1000 hours at +125 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits specifi ed in Endurance. (With voltage treatment)

Shelf Life 2 After storage for 1000 hours at +135 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits specifi ed in Endurance. (With voltage treatment)

AEC-Q200 AEC-Q200 compliant

Rated voltage

(V.DC)

Capacitance

(µF)

Frequency (Hz)

60 120 1 k 10 k 100 k

25 to 35

to 330 0.55 0.65 0.85 0.90 1.00

390 to 1000 0.70 0.75 0.90 0.95 1.00

1200 to 0.75 0.80 0.90 0.95 1.00

(Unit : mm)

Dimensions

Mar. 201604

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

· When requesting taped product, please put the letter "B" be tween the "( )". Lead wire pitch ✽B=5 mm, 7.5 mm.

· Please refer to the page of “Taping dimensions”.

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(100 kHz)

(+125 °C)

(mA r.m.s.)

Ripple

current

(100 kHz)

(+135 °C)

(mA r.m.s.)

ESR

(100 kHz)

(+20 °C)

(Ω)

tan d

(120 Hz)

(+20 °C)

125 °C

Enduance

(hours)

135 °C

Enduance

(hours)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight Taping

✽B

25

220 10 12.5 580 500 0.190 0.14

3000 2000

0.6 5.0 5.0

EEUTP1E221( )

200 500

330 10 16 1100 945 0.130 0.14

3000 2000

0.6 5.0 5.0

EEUTP1E331( )

200 500

470 8 20 1060 7600.0670.14

2000 1000

0.6 3.5 5.0

EEUTP1E471L( )

200 1000

10 16 1100 945 0.130 0.14

3000 2000

0.6 5.0 5.0

EEUTP1E471( )

200 500

510 10 16 1100 945 0.130 0.14

3000 2000

0.6 5.0 5.0

EEUTP1E511( )✽

200 500

820 10 20 1540 1100 0.052 0.14

3000 2000

0.6 5.0 5.0

EEUTP1E821( )

200 500

1000 12.5 20 1860 1490 0.038 0.14

4000 2000

0.6 5.0 5.0

EEUTP1E102( )

200 500

1200 12.5 20 1860 1490 0.038 0.14

4000 2000

0.6 5.0 5.0

EEUTP1E122( )

200 500

1800 12.5 25 2180 1750 0.030 0.14

4000 2000

0.6 5.0 5.0

EEUTP1E182( )

200 500

16 20 2380 1985 0.029 0.14

5000 2000

0.8 7.5 7.5

EEUTP1E182S( )

100 250

2000 16 20 2380 1985 0.029 0.16

5000 2000

0.8 7.5 7.5

EEUTP1E202S( )✽

100 250

2200 16 25 2760 2300 0.022 0.16

5000 2000

0.8 7.5 7.5

EEUTP1E222( )

100 250

18 20 2700 2250 0.028 0.16

5000 2000

0.8 7.5 7.5

EEUTP1E222S( )

100 250

2700 16 25 2760 2300 0.022 0.16

5000 2000

0.8 7.5 7.5

EEUTP1E272( )

100 250

18 20 2700 2250 0.028 0.16

5000 2000

0.8 7.5 7.5

EEUTP1E272S( )

100 250

3300 16 31.5 3250 2710 0.018 0.18

5000 2000

0.8 7.5

EEUTP1E332

100

18 25 2960 2470 0.020 0.18

5000 2000

0.8 7.5 7.5

EEUTP1E332S( )

100 250

3900 16 31.5 3250 2710 0.018 0.18

5000 2000

0.8 7.5

EEUTP1E392

100

18 25 2960 2470 0.020 0.18

5000 2000

0.8 7.5 7.5

EEUTP1E392S( )

100 250

4700 18 31.5 3480 2900 0.016 0.20

5000 2000

0.8 7.5

EEUTP1E472

50

5100 18 31.5 3480 2900 0.016 0.22

5000 2000

0.8 7.5

EEUTP1E512✽

50

35

100 10 12.5 580 500 0.190 0.12

3000 2000

0.6 5.0 5.0

EEUTP1V101( )

200 500

120 10 12.5 580 500 0.190 0.12

3000 2000

0.6 5.0 5.0

EEUTP1V121( )

200 500

220 8 20 1060 7600.0670.12

2000 1000

0.6 3.5 5.0

EEUTP1V221L( )

200 1000

10 16 1100 945 0.130 0.12

3000 2000

0.6 5.0 5.0

EEUTP1V221( )

200 500

270 8 20 1060 7600.0670.12

2000 1000

0.6 3.5 5.0

EEUTP1V271L( )

200 1000

10 16 1100 945 0.130 0.12

3000 2000

0.6 5.0 5.0

EEUTP1V271( )

200 500

330 10 20 1540 1100 0.052 0.12

3000 2000

0.6 5.0 5.0

EEUTP1V331( )

200 500

390 10 20 1540 1100 0.052 0.12

3000 2000

0.6 5.0 5.0

EEUTP1V391( )

200 500

470 12.5 20 1860 1490 0.038 0.12

4000 2000

0.6 5.0 5.0

EEUTP1V471( )

200 500

560 12.5 20 1860 1490 0.038 0.12

4000 2000

0.6 5.0 5.0

EEUTP1V561( )

200 500

620 12.5 20 1860 1490 0.038 0.12

4000 2000

0.6 5.0 5.0

EEUTP1V621( )✽

200 500

820 12.5 25 2180 1750 0.030 0.12

4000 2000

0.6 5.0 5.0

EEUTP1V821( )

200 500

1000 16 20 2380 1985 0.029 0.12

5000 2000

0.8 7.5 7.5

EEUTP1V102( )

100 250

1200 16 20 2380 1985 0.029 0.12

5000 2000

0.8 7.5 7.5

EEUTP1V122( )

100 250

1500 16 25 2760 2300 0.022 0.12

5000 2000

0.8 7.5 7.5

EEUTP1V152( )

100 250

18 20 2700 2250 0.028 0.12

5000 2000

0.8 7.5 7.5

EEUTP1V152S( )

100 250

1600 16 25 2760 2300 0.022 0.12

5000 2000

0.8 7.5 7.5

EEUTP1V162( )✽

100 250

1800 16 31.5 3250 2710 0.018 0.12

5000 2000

0.8 7.5

EEUTP1V182

100

18 25 2960 2470 0.020 0.12

5000 2000

0.8 7.5 7.5

EEUTP1V182S( )

100 250

2000 16 31.5 3250 2710 0.018 0.14

5000 2000

0.8 7.5

EEUTP1V202✽

100

18 25 2960 2470 0.020 0.14

5000 2000

0.8 7.5 7.5

EEUTP1V202S( )✽

100 250

2200 18 31.5 3480 2900 0.016 0.14

5000 2000

0.8 7.5

EEUTP1V222

50

2700 18 31.5 3480 2900 0.016 0.14

5000 2000

0.8 7.5

EEUTP1V272

50

✽ :

Substandard

(

E24series numbers

)

Mar. 201604

Panasonic S‘eeve g1; 14 mm 3 Hun

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

< 08

0D±0.5

F±0.5

Sleeve

14 min.

3 min.

L✽

✽ L < 16 : L±1.5

L > 20 : L±2.0

Pressure relief

06.3 <+

–

010 <

0D±0.5

fd±0.05

(Unit : mm)

Radial Lead Type

Series : HD Type : A

Category temperature range

–55 °C to +105 °C

Rated voltage range 10 V.DC to 50 V.DC

Capacitance range 2.2 µF to 22000 µF

Capacitance tolerance ±20 % (120 Hz/+20 °C)

Leakage current I < 0.01 CV or 3 (µA) After 2 minutes

(Which is greater)

Dissipation factor (tan d) Please see the attached characteristics list

Endurance

After following life test with DC voltage and +105 °C±2 °C ripple current value applied (The sum

of DC and ripple peak voltage shall not exceed the rated working voltage), When the capacitors

are restored to 20 °C, the capacitors shall meet the limits specifi ed below.

Duration : 05 to 08=1000 hours, 010 to 018=2000 hours

Capacitance change Within ±20 % of the initial value

tan d< 200 % of the initial limit

DC leakage current Within the initial limit

Shelf life After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits specifi ed in Endurance. (With voltage treatment)

0D5 6.3 8 10 12.5 16 18

0d 0.5 0.5 0.6 0.6 0.6 0.8 0.8

F2.0 2.5 3.5 5.0 5.0 7.5 7.5

Rated voltage

(V.DC)

Capacitance

(µF)

Frequency (Hz)

60 120 1 k 10 k 100 k

10 to 50

2.2 to 33 0.75 1.00 1.55 1.80 2.00

47 to 470 0.80 1.00 1.35 1.50 1.50

1000 to 22000 0.85 1.00 1.10 1.15 1.15

Dimensions

Frequency correction factor for ripple current

●Endurance : 105 °C 1000 h to 2000 h

●Minaturize, Higher Capacitance : 1 Size Miniturized Product of Current A-NHG

●RoHS compliant

Features

Specifi cations

Mar. 201605

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

· When requesting taped product, please put the letter “B” or “H” between the “( )”. Lead wire pitch ✽B=5 mm, 7.5 mm, H=2.5 mm.

· Please refer to the page of “Taping dimensions”.

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(120 Hz)

(+105 °C)

(mA r.m.s.)

tan d

(120 Hz)

(+20 °C)

Endurance

(hours)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

Taping

✽H

10

330 6.3 11.2 200 0.24 1000 0.5 2.5 5.0 2.5 EEUHD1A331( ) 200 2000

470 8 11.5 250 0.24 1000 0.6 3.5 5.0 EEUHD1A471( ) 200 1000

1000 10 12.5 460 0.24 2000 0.6 5.0 5.0 EEUHD1A102( ) 200 500

2200 10 16 760 0.26 2000 0.6 5.0 5.0 EEUHD1A222( ) 200 500

4700 12.5 20 1260 0.30 2000 0.6 5.0 5.0 EEUHD1A472( ) 200 500

6800 12.5 25 1570 0.34 2000 0.6 5.0 5.0 EEUHD1A682( ) 200 500

10000 16 25 1890 0.42 2000 0.8 7.5 7.5 EEUHD1A103( ) 100 250

15000 16 31.5 2180 0.52 2000 0.8 7.5 EEUHD1A153 100

22000 18 35.5 2400 0.66 2000 0.8 7.5 EEUHD1A223 50

16

10 0 5 11 110 0 .2 0 10 0 0 0 .5 2. 0 5.0 2 .5 EEUHD1C101( ) 200 2000

220 6.3 11.2 180 0.20 1000 0.5 2.5 5.0 2.5 EEUHD1C221( ) 200 2000

330 8 11.5 260 0.20 1000 0.6 3.5 5.0 EEUHD1C331( ) 200 1000

470 8 11.5 310 0.20 1000 0.6 3.5 5.0 EEUHD1C471( ) 200 1000

3300 12.5 20 1170 0.24 2000 0.6 5.0 5.0 EEUHD1C332( ) 200 500

4700 12.5 25 1480 0.26 2000 0.6 5.0 5.0 EEUHD1C472( ) 200 500

6800 16 25 1780 0.30 2000 0.8 7.5 7.5 EEUHD1C682( ) 100 250

8200 16 25 1780 0.34 2000 0.8 7.5 7.5 EEUHD1C822( ) 100 250

10000 16 31.5 2060 0.38 2000 0.8 7.5 EEUHD1C103 100

15000 18 35.5 2210 0.48 2000 0.8 7.5 EEUHD1C153 50

25

47 5 11 91 0.16 1000 0.5 2.0 5.0 2.5 EEUHD1E470( ) 200 2000

68 5 11 91 0.16 1000 0.5 2.0 5.0 2.5 EEUHD1E680( ) 200 2000

100 6.3 11.2 130 0.16 1000 0.5 2.5 5.0 2.5 EEUHD1E101( ) 200 2000

220 8 11.5 230 0.16 1000 0.6 3.5 5.0 EEUHD1E221( ) 200 1000

330 8 11.5 310 0.16 1000 0.6 3.5 5.0 EEUHD1E331( ) 200 1000

470 10 12.5 380 0.16 2000 0.6 5.0 5.0 EEUHD1E471( ) 200 500

1000 10 16 680 0.16 2000 0.6 5.0 5.0 EEUHD1E102( ) 200 500

2200 12.5 20 1090 0.18 2000 0.6 5.0 5.0 EEUHD1E222( ) 200 500

3300 12.5 25 1400 0.20 2000 0.6 5.0 5.0 EEUHD1E332( ) 200 500

4700 16 25 1750 0.22 2000 0.8 7.5 7.5 EEUHD1E472( ) 100 250

5600 16 25 1750 0.24 2000 0.8 7.5 7.5 EEUHD1E562( ) 100 250

6800 16 31.5 2040 0.26 2000 0.8 7.5 EEUHD1E682 100

10000 18 35.5 2200 0.34 2000 0.8 7.5 EEUHD1E103 50

35

47 5 11 90 0.14 1000 0.5 2.0 5.0 2.5 EEUHD1V470( ) 200 2000

100 6.3 11.2 150 0.14 1000 0.5 2.5 5.0 2.5 EEUHD1V101( ) 200 2000

220 8 11.5 270 0.14 1000 0.6 3.5 5.0 EEUHD1V221( ) 200 1000

330 10 12.5 350 0.14 2000 0.6 5.0 5.0 EEUHD1V331( ) 200 500

470 10 16 460 0.14 2000 0.6 5.0 5.0 EEUHD1V471( ) 200 500

680 10 16 460 0.14 2000 0.6 5.0 5.0 EEUHD1V681( ) 200 500

2200 12.5 25 1260 0.16 2000 0.6 5.0 5.0 EEUHD1V222( ) 200 500

3300 16 25 1610 0.18 2000 0.8 7.5 7.5 EEUHD1V332( ) 100 250

4700 16 31.5 1910 0.20 2000 0.8 7.5 EEUHD1V472 100

6800 18 35.5 2050 0.24 2000 0.8 7.5 EEUHD1V682 50

Endurance : 105 °C 05 to 08=1000 h, 010 to 018=2000 h

Mar. 201605

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list

· When requesting taped product, please put the letter “B” or “H” between the “( )”. Lead wire pitch ✽B=5 mm, 7.5 mm, H=2.5 mm.

· Please refer to the page of “Taping dimensions”.

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(120 Hz)

(+105 °C)

(mA r.m.s.)

tan d

(120 Hz)

(+20 °C)

Endurance

(hours)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

Taping

✽H

50

2.2

5 11 18 0.12 1000 0.5 2.0 5.0 2.5 EEUHD1H2R2( ) 200 2000

3.3

5 11 22 0.12 1000 0.5 2.0 5.0 2.5 EEUHD1H3R3( ) 200 2000

4.7

5 11 26 0.12 1000 0.5 2.0 5.0 2.5 EEUHD1H4R7( ) 200 2000

10

5 11 39 0.12 1000 0.5 2.0 5.0 2.5 EEUHD1H100( ) 200 2000

22

5 11 65 0.12 1000 0.5 2.0 5.0 2.5 EEUHD1H220( ) 200 2000

33

5 11 90 0.12 1000 0.5 2.0 5.0 2.5 EEUHD1H330( ) 200 2000

47

6.3 11.2 110 0.12 1000 0.5 2.5 5.0 2.5 EEUHD1H470( ) 200 2000

68

6.3 11.2 110 0.12 1000 0.5 2.5 5.0 2.5 EEUHD1H680( ) 200 2000

100

8 11.5 180 0.12 1000 0.6 3.5 5.0 EEUHD1H101( ) 200 1000

220

10 12.5 300 0.12 2000 0.6 5.0 5.0 EEUHD1H221( ) 200 500

330

10 16 410 0.12 2000 0.6 5.0 5.0 EEUHD1H331( ) 200 500

470

10 20 530 0.12 2000 0.6 5.0 5.0 EEUHD1H471( ) 200 500

560

16 15 650 0.12 2000 0.8 7.5 7.5 EEUHD1H561S( ) 100 250

680

16 15 650 0.12 2000 0.8 7.5 7.5 EEUHD1H681S( ) 100 250

1000

12.5 25 950 0.12 2000 0.6 5.0 5.0 EEUHD1H102( ) 200 500

2200

16 31.5 1470 0.14 2000 0.8 7.5 EEUHD1H222 100

3300

18 35.5 1770 0.16 2000 0.8 7.5 EEUHD1H332 50

Endurance : 105 °C 05 to 08=1000 h, 010 to 018=2000 h

Mar. 201605

Panasonic Radial Lead Typ . 140$ — p — (9D 5 6.3 8 10.0 12.5 16 18 (pd 0.5 0.5 0.6 0.6 0.6 0 8 O 8 F 2.0 2.5 3.5 5.0 5.0 7 5 7 5

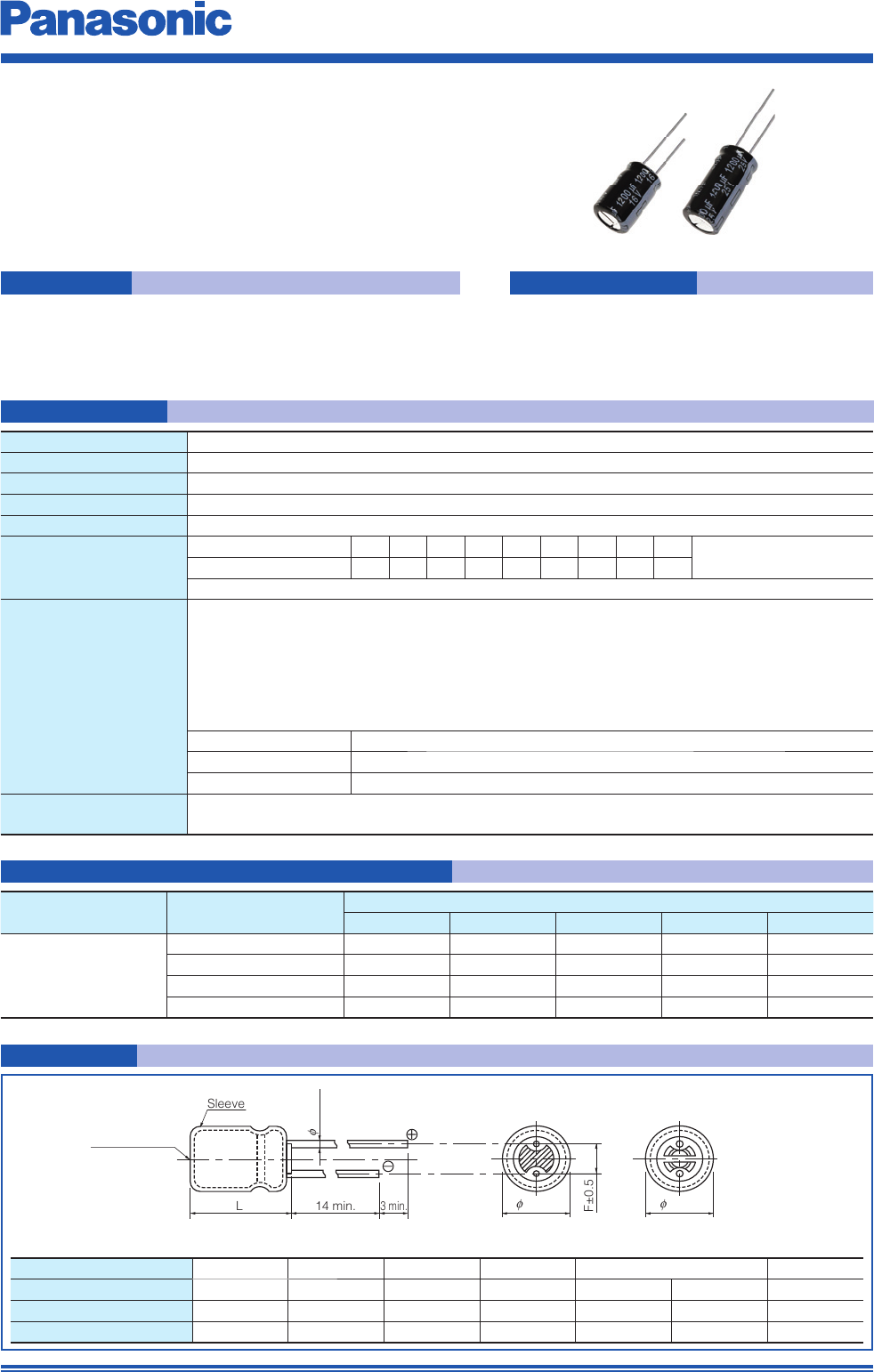

$OXPLQXP(OHFWURO\WLF&DSDFLWRUV5DGLDO/HDG7\SH

5DGLDO/HDG7

\S

H

ٴ(QGXUDQFH٦KWRK

ٴ5R+6FRP

S

OLDQW



8QLW؟PP

1+* $

)HDWXUHV

6SHFLILFDWLRQV

6HULHV 7\SH

6KHOIOLIH $IWHUVWRUDJHIRUKDW٦٦ZLWKQRYROWDJHDSSOLHGDQGWKHQEHLQJVWDELOL]HG

DW&FDSDFLWRUVVKDOOPHHWWKHOLPLWVVSHFLILHGLQ(QGXUDQFH:LWKYROWDJHWUHDWPHQW

'&OHDNDJHFXUUHQW

&DWHJRU\WHPSUDQJH

5DWHGYROWDJHUDQJH

+]٦

WDQ̥

&DSDFLWDQFHUDQJH

,۹&9RU̭$$IWHUPLQXWHV

:KLFKLVJUHDWHU ,۹&9̭$$IWHUPLQXWHV/HDNDJHFXUUHQW

FDSDFLWRUVDUHUHVWRUHGWR٦WKHFDSDFLWRUVVKDOOPHHWWKHOLPLWVVSHFLILHGEHORZ

3OHDVHVHHWKHDWWDFKHGFKDUDFWHULVWLFVOLVW

9'&WR9'&K

t٦WR٦

9'&WR9'&

6HS

'LPHQVLRQV

&DSDFLWDQFHWROHUDQFH

'LVVLSDWLRQIDFWRUWDQ̥

)UHTXHQF\FRUUHFWLRQIDFWRUIRUULSSOHFXUUHQW

VXPRI'&DQGULSSOHSHDNYROWDJHVKDOOQRWH[FHHGWKHUDWHGZRUNLQJYROWDJH:KHQWKH

'XUDWLRQ9'&WR9'&̷WR̷ K̷WR̷ K

&DSDFLWDQFHFKDQJH :LWKLQRIWKHLQLWLDOYDOXH



(QGXUDQFH

۹RIWKHLQLWLDOOLPLW

:LWKLQWKHLQLWLDOOLPLW

5DWHGYROWDJH9'& &DSDFLWDQFH̭)

WR

WR

)UHTXHQF\+]

̷G 













WR

WR

 

6KRXOGDVDIHW\FRQFHUQDULVHUHJDUGLQJWKLVSURGXFWSOHDVHEHVXUHWRFRQWDFWXVLPPHGLDWHO\

'HVLJQDQGVSHFLILFDWLRQVDUHHDFKVXEMHFWWRFKDQJHZLWKRXWQRWLFH$VNIDFWRU\IRUWKHFXUUHQWWHFKQLFDOVSHFLILFDWLRQVEHIRUHSXUFKDVHDQGRUXVH

N







 



 

)













   

̭)WR̭)

t٦WR٦

9'&WR9'&

̭)WR̭)

̷'

  N N

   

   

 WR

WR

$IWHUIROORZLQJOLIHWHVWZLWK'&YROWDJHDQG٦٦ULSSOHFXUUHQWYDOXHDSSOLHG7KH

̷G

PLQ

)

/

/۹؟/

/ۺ؟/

6OHHYH

PLQ

̷' ̷'

۹̷ ̷۹

3UHVVXUHUHOLHI

̷۹

Panasonic —

$OXPLQXP(OHFWURO\WLF&DSDFLWRUV5DGLDO/HDG7\SH

5LSSOHFXUUHQW+]٦

WDQ̥+]٦

嵣:KHQUHTXHVWLQJWDSHGSURGXFWSOHDVHSXWWKHOHWWHUn%|RUnL|EHWZHHQWKHn|/HDGZLUHSLWFK

名% PPPPL PP

嵣3OHDVHUHIHUWRWKHSDJHRIn7DSLQJGLPHQVLRQV|

&KDUDFWHULVWLFVOLVW



































(&$(+*

(&$(+*







'HVLJQDQGVSHFLILFDWLRQVDUHHDFKVXEMHFWWRFKDQJHZLWKRXWQRWLFH$VNIDFWRU\IRUWKHFXUUHQWWHFKQLFDOVSHFLILFDWLRQVEHIRUHSXUFKDVHDQGRUXVH

6KRXOGDVDIHW\FRQFHUQDULVHUHJDUGLQJWKLVSURGXFWSOHDVHEHVXUHWRFRQWDFWXVLPPHGLDWHO\ 6HS











5DWHG

YRO

9'&

&DS



̭)

&DVHVL]H

PP

7DSLQJ

名+

7DSLQJ

名%

 

(&$&+*

(&$&+*

(&$&+*

(&$&+*

(&$&+*

(&$&+*

(&$&+*















(&$9+*

(&$9+*

















































































6SHFLILFDWLRQ /HDGOHQJWKPP

3DUW1R

0LQ3DFNDJLQJ4W\

̷' /

5LSSOH

FXUUHQW

P$UPV

WDQ̥ (QGXUDQFH

قKRXUVك

/HDG

GLD

ق̷Gك

/HDGVSDFH 6WUDLJKW

OHDGV

SFV

7DSLQJ

SFV

6WUDLJKW

























































































(&$-+*

(&$-+*

(&$-+*

(&$-+*

(&$-+*

(&$-+*

(&$-+*

(&$-+*

(&$-+*

(&$-+*

(&$-+*

(&$$+*

(&$$+*

(&$$+*

(&$$+*

(&$$+*

(&$$+*

(&$$+*

(&$$+*

(&$$+*

(&$&+*

(&$&+*

(&$&+*

(&$(+*

(&$(+*

(&$(+*

(&$(+*

(&$(+*

(&$(+*

(&$(+*

(&$(+*

(&$9+*

(&$9+*

(&$9+*

(&$9+*

(&$9+*

(&$9+*

(&$9+*













































































































































































































































































































































































































Panasonic —

$OXPLQXP(OHFWURO\WLF&DSDFLWRUV5DGLDO/HDG7\SH

5LSSOHFXUUHQW+]٦

WDQ̥+]٦

嵣:KHQUHTXHVWLQJWDSHGSURGXFWSOHDVHSXWWKHOHWWHUn%|RUnL|EHWZHHQWKHn|/HDGZLUHSLWFK

名% PPPPL PP

嵣3OHDVHUHIHUWRWKHSDJHRIn7DSLQJGLPHQVLRQV|

5DWHG

YRO

9'&

&KDUDFWHULVWLFVOLVW

7DSLQJ

名%

7DSLQJ

名+

&DS



̭)

&DVHVL]H

PP 6SHFLILFDWLRQ /HDGOHQJWKPP



 



  





 



 

 



 













(&$-+*

(&$-+*

 



 









(&$-+*

(&$-+*

 







(&$-+*

(&$-+*



  









(&$$+*5

(&$$+*5



  











(&$$+*5

(&$$+*

  











(&$$+*

(&$$+*





'HVLJQDQGVSHFLILFDWLRQVDUHHDFKVXEMHFWWRFKDQJHZLWKRXWQRWLFH$VNIDFWRU\IRUWKHFXUUHQWWHFKQLFDOVSHFLILFDWLRQVEHIRUHSXUFKDVHDQGRUXVH











 





6KRXOGDVDIHW\FRQFHUQDULVHUHJDUGLQJWKLVSURGXFWSOHDVHEHVXUHWRFRQWDFWXVLPPHGLDWHO\ 6HS





































































3DUW1R

0LQ3DFNDJLQJ4W\

̷' /

5LSSOH

FXUUHQW

P$UPV

WDQ̥ (QGXUDQFH

قKRXUVك

/HDG

GLD

ق̷Gك

/HDGVSDFH 6WUDLJKW

OHDGV

SFV

7DSLQJ

SFV

6WUDLJKW































































(&$++*5

(&$++*5

(&$++*5

(&$++*

(&$++*

(&$++*

(&$++*

(&$++*

(&$++*

(&$++*

(&$++*

(&$++*

(&$++*

(&$++*

(&$-+*

(&$-+*

(&$-+*

(&$-+*

(&$$+*

(&$$+*

(&$$+*

(&$$+*

(&$$+*

(&$$+*





















































































































































































Panasonic —

$OXPLQXP(OHFWURO\WLF&DSDFLWRUV5DGLDO/HDG7\SH

5LSSOHFXUUHQW+]٦

WDQ̥+]٦

嵣:KHQUHTXHVWLQJWDSHGSURGXFWSOHDVHSXWWKHOHWWHUn%|RUnL|EHWZHHQWKHn|/HDGZLUHSLWFK

名% PPPPL PP

嵣3OHDVHUHIHUWRWKHSDJHRIn7DSLQJGLPHQVLRQV|















&KDUDFWHULVWLFVOLVW







6KRXOGDVDIHW\FRQFHUQDULVHUHJDUGLQJWKLVSURGXFWSOHDVHEHVXUHWRFRQWDFWXVLPPHGLDWHO\ 6HS

'HVLJQDQGVSHFLILFDWLRQVDUHHDFKVXEMHFWWRFKDQJHZLWKRXWQRWLFH$VNIDFWRU\IRUWKHFXUUHQWWHFKQLFDOVSHFLILFDWLRQVEHIRUHSXUFKDVHDQGRUXVH























 

(&$(+*5

(&$(+*5

(&$(+* 

   (&$(+*











 





 



















 



















 







7DSLQJ

名%

7DSLQJ

名+

/HDG

GLD

ق̷Gك

/HDGVSDFH 6WUDLJKW

OHDGV

SFV

7DSLQJ

SFV

6WUDLJKW



5DWHG

YRO

9'&

&DS



̭)

&DVHVL]H

PP 6SHFLILFDWLRQ /HDGOHQJWKPP

3DUW1R

0LQ3DFNDJLQJ4W\

̷' /

5LSSOH

FXUUHQW

P$UPV

WDQ̥ (QGXUDQFH

قKRXUVك















































































(&$&+*5

(&$&+*5

(&$&+*5

(&$&+*

(&$&+*

(&$&+*

(&$&+*

(&$&+*

(&$&+*

(&$&+*

(&$'+*5

(&$'+*5

(&$'+*5

(&$'+*

(&$'+*

(&$'+*

(&$'+*

(&$'+*

(&$'+*

(&$(+*5

(&$(+*

(&$(+*

(&$(+*

(&$9+*5

(&$9+*5

(&$9+*5

(&$9+*

(&$9+*

(&$9+*

(&$9+*

(&$9+*























































































































































































































Panasonic —

$OXPLQXP(OHFWURO\WLF&DSDFLWRUV5DGLDO/HDG7\SH

5LSSOHFXUUHQW+]٦

WDQ̥+]٦

嵣:KHQUHTXHVWLQJWDSHGSURGXFWSOHDVHSXWWKHOHWWHUn%|RUnL|EHWZHHQWKHn|/HDGZLUHSLWFK

名% PPPPL PP

嵣3OHDVHUHIHUWRWKHSDJHRIn7DSLQJGLPHQVLRQV|

&KDUDFWHULVWLFVOLVW



'HVLJQDQGVSHFLILFDWLRQVDUHHDFKVXEMHFWWRFKDQJHZLWKRXWQRWLFH$VNIDFWRU\IRUWKHFXUUHQWWHFKQLFDOVSHFLILFDWLRQVEHIRUHSXUFKDVHDQGRUXVH

6KRXOGDVDIHW\FRQFHUQDULVHUHJDUGLQJWKLVSURGXFWSOHDVHEHVXUHWRFRQWDFWXVLPPHGLDWHO\ 6HS













5DWHG

YRO

9'&



 























&DS



̭) ̷'







0LQ3DFNDJLQJ4W\

7DSLQJ

SFV

6WUDLJKW

OHDGV

SFV

(QGXUDQFH

قKRXUVك

WDQ̥

6SHFLILFDWLRQ

/

&DVHVL]H

PP

5LSSOH

FXUUHQW

P$UPV

3DUW1R

7DSLQJ

名+

7DSLQJ

名%

6WUDLJKW

/HDGVSDFH

/HDG

GLD

ق̷Gك



























/HDGOHQJWKPP









































































(&$*+*5

(&$*+*5

(&$*+*5

(&$*+*

(&$*+*

(&$*+*

(&$*+*

(&$:+*5

(&$:+*5

(&$:+*5

(&$:+*

(&$:+*

(&$:+*















Panasonic / // / // [7/ '/ — — — — Km

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

010 <

Sleeve

14 min.

3 min.

L✽

Pressure relief

06.3 <

✽ L < 16 : L±1.0

L > 20 : L±2.0

< 08

0D±0.5

F±0.5

0D±0.5

fd±0.05

(Unit : mm)

Radial Lead Type

Series : GA (Bi-polar) Type : A

Dimensions

Frequency correction factor for ripple current

●Endurance : 105 °C 1000 h to 2000 h

●RoHS compliant

Features

Specifi cations

0D 5 6.3 8 10

0d 0.5 0.5 0.6 0.6

F 2.0 2.5 3.5 5.0

Category temperature range

–40 °C to +105 °C

Rated voltage range 6.3 V.DC to 50 V.DC

Capacitance range 2.2 µF to 330 µF

Capacitance tolerance ±20 % (120 Hz/+20 °C)

Leakage current

I < 0.03 CV +3 (µA) After 2 minutes

or

I < 0.03 CV or 3 (µA) After 5 minutes (Whichever is greater)

Dissipation factor (tan d) Please see the attached characteristics list

Endurance

After following life test of DC working voltage at +105 °C±2 °C

when the capacitors are restored to 20 °C, the capacitors shall meet the following limits.

Duration

05 to 08 : 1000 hours (500 hours for each polarity)

010 : 2000 hours (1000 hours for each polarity)

Capacitance change Within ±20 % of the initial value

tan d< 200 % of the initial limit

DC leakage current Within the initial limit

Shelf life After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits specifi ed in Endurance. (With voltage treatment)

Frequency (Hz) 50, 60 120 1 k 10 k to

Correction factor 0.70 1.00 1.30 1.70

Mar. 201604

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list (Bi-polar)

Endurance : 105 °C 05 to 08=1000 h (500 h for each polarity), 010=2000 h (1000 h for each polarity)

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(120 Hz)

(+105 °C)

(mA r.m.s.)

tan d

(120 Hz)

(+20 °C)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

Taping

✽i

6.3 100 6.3 11.2 130 0.30 0.5 2.5 5.0 2.5 ECA0JEN101( ) 200 2000

330 8 11.5 250 0.30 0.6 3.5 5.0 ECA0JEN331( ) 200 1000

10 47 5 11 90 0.24 0.5 2.0 5.0 2.5 ECA1AEN470( ) 200 2000

16

10 5 11 40 0.20 0.5 2.0 5.0 2.5 ECA1CEN100( ) 200 2000

22 5 11 60 0.20 0.5 2.0 5.0 2.5 ECA1CEN220( ) 200 2000

33 5 11 80 0.20 0.5 2.0 5.0 2.5 ECA1CEN330( ) 200 2000

47 6.3 11.2 100 0.20 0.5 2.5 5.0 2.5 ECA1CEN470( ) 200 2000

25

10 5 11 45 0.15 0.5 2.0 5.0 2.5 ECA1EEN100( ) 200 2000

22 6.3 11.2 60 0.15 0.5 2.5 5.0 2.5 ECA1EEN220( ) 200 2000

33 6.3 11.2 90 0.15 0.5 2.5 5.0 2.5 ECA1EEN330( ) 200 2000

47 6.3 11.2 110 0.15 0.5 2.5 5.0 2.5 ECA1EEN470( ) 200 2000

100 8 11.5 180 0.15 0.6 3.5 5.0 ECA1EEN101( ) 200 1000

35 33 8 11.5 100 0.15 0.6 3.5 5.0 ECA1VEN330( ) 200 1000

100 10 16 230 0.15 0.6 5.0 5.0 ECA1VEN101( ) 200 500

50

2.2 5 11 18 0.15 0.5 2.0 5.0 2.5 ECA1HEN2R2( ) 200 2000

3.3 5 11 25 0.15 0.5 2.0 5.0 2.5 ECA1HEN3R3( ) 200 2000

4.7 5 11 30 0.15 0.5 2.0 5.0 2.5 ECA1HEN4R7( ) 200 2000

10 6.3 11.2 50 0.15 0.5 2.5 5.0 2.5 ECA1HEN100( ) 200 2000

22 8 11.5 90 0.15 0.6 3.5 5.0 ECA1HEN220( ) 200 1000

33 8 11.5 110 0.15 0.6 3.5 5.0 ECA1HEN330( ) 200 1000

47 10 12.5 140 0.15 0.6 5.0 5.0 ECA1HEN470( ) 200 500

100 10 20 250 0.15 0.6 5.0 5.0 ECA1HEN101( ) 200 500

· When requesting taped product, please put the letter “B” or “i” between the “( )”. Lead wire pitch ✽B=5 mm, 7.5 mm, i=2.5 mm.

· Please refer to the page of “Taping dimensions”.

Mar. 201604

Panasonic Radial Lead Typ r9? p (Whichever is greater) (9D 5 6.3 8 10 12.5 16 18 (pd 0.5 0.5 0.6 0.6 0.6 0 8 0 8 F 2.0 2.5 3.5 5.0 5.0 7 5 7 5

$OXPLQXP(OHFWURO\WLF&DSDFLWRUV5DGLDO/HDG7\SH

5DGLDO/HDG7

\S

H

ٴ(QGXUDQFH٦K

ٴ6PDOOHUWKDQVHULHV68

ٴ5R+6FRP

S

OLDQW



8QLW؟PP

&DWHJRU\WHPSUDQJH

5DWHGYROWDJHUDQJH

+]٦

3OHDVHVHHWKHDWWDFKHGFKDUDFWHULVWLFVOLVW

WDQ̥

&DSDFLWDQFHUDQJH

$IWHUDSSO\LQJUDWHGZRUNLQJYROWDJHIRUKRXUVDW&٦ZKHQWKHFDSDFLWRUVDUH

UHVWRUHGWR٦FDSDFLWRUVVKDOOPHHWWKHIROORZLQJOLPLWV

&DSDFLWDQFHFKDQJH :LWKLQRIWKHLQLWLDOYDOXH

t٦WR٦

9'&WR9'&

̭)WR̭)

t٦WR٦

9'&WR9'&

̭)WR̭)

0$

)HDWXUHV

6SHFLILFDWLRQV

6HULHV 7\SH

'HVLJQDQGVSHFLILFDWLRQVDUHHDFKVXEMHFWWRFKDQJHZLWKRXWQRWLFH$VNIDFWRU\IRUWKHFXUUHQWWHFKQLFDOVSHFLILFDWLRQVEHIRUHSXUFKDVHDQGRUXVH

6KRXOGDVDIHW\FRQFHUQDULVHUHJDUGLQJWKLVSURGXFWSOHDVHEHVXUHWRFRQWDFWXVLPPHGLDWHO\ 2FW

'LPHQVLRQV

&DSDFLWDQFHWROHUDQFH

/HDNDJHFXUUHQW

)UHTXHQF\FRUUHFWLRQIDFWRUIRUULSSOHFXUUHQW

6KHOIOLIH

$IWHUVWRUDJHIRUKRXUVDW٦٦ZLWKQRYROWDJHDSSOLHGDQGWKHQEHLQJ

VWDELOL]HGDW٦FDSDFLWRUVVKDOOPHHWWKHOLPLWVVSHFLILHGLQ(QGXUDQFH

'&OHDNDJHFXUUHQW

:LWKYROWDJHWUHDWPHQW

(QGXUDQFH

۹RIWKHLQLWLDOOLPLW

:LWKLQWKHLQLWLDOOLPLW











   

  

   

 





̷'

̷G

)

,۹&9RU̭$岜$IWHUPLQXWHV

:KLFKHYHULVJUHDWHU ,۹&9RU̭$岜$IWHUPLQXWHV

'LVVLSDWLRQIDFWRU

NWR



  N

  

)UHTXHQF\+]

&RUUHFWLRQIDFWRU

̷G

3UHVVXUHUHOLHI

̷۹

PLQ

)

/

/۹؟/

/ۺ؟/

6OHHYH

PLQ

̷' ̷'

۹̷ ̷ӌ

Panasonic ECAl EM682

$OXPLQXP(OHFWURO\WLF&DSDFLWRUV5DGLDO/HDG7\SH

(QGXUDQFH٦K

5LSSOHFXUUHQW+]٦

WDQ̥+]岜٦

嵣:KHQUHTXHVWLQJWDSHGSURGXFWSOHDVHSXWWKHOHWWHUn%|RUnL|EHWZHHQWKHn|/HDGZLUHSLWFK

岜名% PPPPL PP

嵣3OHDVHUHIHUWRWKHSDJHRIn7DSLQJGLPHQVLRQV|





(&$&0

(&$&0

(&$&0















































&KDUDFWHULVWLFVOLVW

7DSLQJ

SFV

5DWHG

YRO

9'&

'HVLJQDQGVSHFLILFDWLRQVDUHHDFKVXEMHFWWRFKDQJHZLWKRXWQRWLFH$VNIDFWRU\IRUWKHFXUUHQWWHFKQLFDOVSHFLILFDWLRQVEHIRUHSXUFKDVHDQGRUXVH

6KRXOGDVDIHW\FRQFHUQDULVHUHJDUGLQJWKLVSURGXFWSOHDVHEHVXUHWRFRQWDFWXVLPPHGLDWHO\ 2FW













































































(&$&0

(&$&0

(&$&0

(&$&0

(&$&0

(&$&0

(&$&0

(&$&0

(&$&0

(&$(0

(&$(0









&DS



̭)

&DVHVL]HPP 6SHFLILFDWLRQ /HDGOHQJWKPP

3DUW1R

0LQ3DFNDJLQJ4W\

̷' /

5LSSOH

FXUUHQW

P$UPV

WDQ̥

/HDG

GLD

ق̷Gك

/HDGVSDFH 6WUDLJKW

OHDGV

SFV

6WUDLJKW 7DSLQJ

名%

7DSLQJ

名L





















































































































































































































































































































































(&$&0



(&$-0

(&$$0

(&$$0

(&$$0

(&$$0

(&$$0

(&$$0

(&$$0

(&$$0

(&$-0

(&$-0

(&$-0

(&$-0

(&$-0

(&$-0

(&$-0

(&$-0

(&$-0

(&$(0

(&$(0

(&$(0

(&$(0

(&$(0

(&$(0

Panasonic —

$OXPLQXP(OHFWURO\WLF&DSDFLWRUV5DGLDO/HDG7\SH

(QGXUDQFH٦K

5LSSOHFXUUHQW+]٦

WDQ̥+]岜٦

嵣:KHQUHTXHVWLQJWDSHGSURGXFWSOHDVHSXWWKHOHWWHUn%|RUnL|EHWZHHQWKHn|/HDGZLUHSLWFK

岜名% PPPPL PP

嵣3OHDVHUHIHUWRWKHSDJHRIn7DSLQJGLPHQVLRQV|



&DS



̭)

&DVHVL]HPP 6SHFLILFDWLRQ 0LQ3DFNDJLQJ4W\

6WUDLJKW

OHDGV

SFV

/̷' WDQ̥

5LSSOH

FXUUHQW

P$UPV

/HDGOHQJWKPP

/HDG

GLD

ق̷Gك

/HDGVSDFH

6WUDLJKW 7DSLQJ

名%

7DSLQJ

名L

3DUW1R 7DSLQJ

SFV

&KDUDFWHULVWLFVOLVW

5DWHG

YRO

9'&













'HVLJQDQGVSHFLILFDWLRQVDUHHDFKVXEMHFWWRFKDQJHZLWKRXWQRWLFH$VNIDFWRU\IRUWKHFXUUHQWWHFKQLFDOVSHFLILFDWLRQVEHIRUHSXUFKDVHDQGRUXVH

6KRXOGDVDIHW\FRQFHUQDULVHUHJDUGLQJWKLVSURGXFWSOHDVHEHVXUHWRFRQWDFWXVLPPHGLDWHO\ 2FW































































































































































































(&$90

(&$90

(&$90

(&$90

(&$90

(&$90

(&$90

(&$90

(&$90

(&$90

(&$+05

(&$+05

(&$+05

(&$+0

(&$+0

(&$+0

(&$+0

(&$+0

(&$+0

(&$+0

(&$+0

(&$+0

(&$+0

(&$+0

(&$-0

(&$-0

(&$-0

(&$-0

(&$-0

(&$-0

(&$-0

(&$-0

(&$-0

(&$-0























































































































































































Panasonic —

$OXPLQXP(OHFWURO\WLF&DSDFLWRUV5DGLDO/HDG7\SH

(QGXUDQFH٦K

5LSSOHFXUUHQW+]٦

WDQ̥+]岜٦

嵣:KHQUHTXHVWLQJWDSHGSURGXFWSOHDVHSXWWKHOHWWHUn%|RUnL|EHWZHHQWKHn|/HDGZLUHSLWFK

岜名% PPPPL PP

嵣3OHDVHUHIHUWRWKHSDJHRIn7DSLQJGLPHQVLRQV|

&KDUDFWHULVWLFVOLVW

5DWHG

YRO

9'&

7DSLQJ

SFV

&DS



̭)

&DVHVL]HPP 6SHFLILFDWLRQ /HDGOHQJWKPP

3DUW1R

0LQ3DFNDJLQJ4W\

̷' /









'HVLJQDQGVSHFLILFDWLRQVDUHHDFKVXEMHFWWRFKDQJHZLWKRXWQRWLFH$VNIDFWRU\IRUWKHFXUUHQWWHFKQLFDOVSHFLILFDWLRQVEHIRUHSXUFKDVHDQGRUXVH

6KRXOGDVDIHW\FRQFHUQDULVHUHJDUGLQJWKLVSURGXFWSOHDVHEHVXUHWRFRQWDFWXVLPPHGLDWHO\ 2FW















































































5LSSOH

FXUUHQW

P$UPV

WDQ̥

/HDG

GLD

ق̷Gك

/HDGVSDFH 6WUDLJKW

OHDGV

SFV

6WUDLJKW 7DSLQJ

名%

7DSLQJ

名L









































































































































































































































(&$$05

(&$$05

(&$$05

(&$$0

(&$$0

(&$$0

(&$$0

(&$$0

(&$$0

(&$$0

(&$$0

(&$$0

(&$&05

(&$&05

(&$&05

(&$&0

(&$&0

(&$&0

(&$&0

(&$&0

(&$&0

(&$&0

(&$'0

(&$'0

(&$&0

(&$'05

(&$'05

(&$'05

(&$'0

(&$'0

(&$'0

(&$'0

(&$'0

Panasonic —

$OXPLQXP(OHFWURO\WLF&DSDFLWRUV5DGLDO/HDG7\SH

(QGXUDQFH٦K

5LSSOHFXUUHQW+]٦

WDQ̥+]岜٦

嵣:KHQUHTXHVWLQJWDSHGSURGXFWSOHDVHSXWWKHOHWWHUn%|RUnL|EHWZHHQWKHn|/HDGZLUHSLWFK

岜名% PPPPL PP

嵣3OHDVHUHIHUWRWKHSDJHRIn7DSLQJGLPHQVLRQV|

&KDUDFWHULVWLFVOLVW

5DWHG

YRO

9'&

7DSLQJ

SFV







'HVLJQDQGVSHFLILFDWLRQVDUHHDFKVXEMHFWWRFKDQJHZLWKRXWQRWLFH$VNIDFWRU\IRUWKHFXUUHQWWHFKQLFDOVSHFLILFDWLRQVEHIRUHSXUFKDVHDQGRUXVH

6KRXOGDVDIHW\FRQFHUQDULVHUHJDUGLQJWKLVSURGXFWSOHDVHEHVXUHWRFRQWDFWXVLPPHGLDWHO\ 2FW































































































&DS



̭)

&DVHVL]HPP 6SHFLILFDWLRQ /HDGOHQJWKPP

3DUW1R

0LQ3DFNDJLQJ4W\

̷' /

5LSSOH

FXUUHQW

P$UPV

WDQ̥

/HDG

GLD

ق̷Gك

/HDGVSDFH 6WUDLJKW

OHDGV

SFV

6WUDLJKW 7DSLQJ

名%

7DSLQJ

名L















































































































































































































































 (&$(05

(&$(05

(&$(05

(&$(0

(&$(0

(&$(0

(&$(0

(&$(0

(&$(0

(&$905

(&$905

(&$905

(&$90

(&$90

(&$90

(&$90

(&$90

(&$:05

(&$:05

(&$:0

(&$:0

(&$:0

(&$*05

(&$*05

(&$*05

(&$*0

(&$*0

(&$*0

(&$*0

(&$*0

(&$:05

Panasonic / / ’9' 0:0 f'ﬁ \

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

< 08

0D±0.5

F±0.5

Sleeve

14 min.

3 min.

L✽

Pressure relief

06.3 <

✽ L < 16 : L±1.0

L >20 : L±2.0

010 <

0D±0.5

fd±0.05

(Unit : mm)

Radial Lead Type

Series : SU (Bi-polar) Type : A

Dimensions

Frequency correction factor for ripple current

●Endurance : 85 °C 2000 h

●RoHS compliant

Features

Specifi cations

Category temperature range

–40 °C to +85 °C

Rated voltage range 6.3 V.DC to 50 V.DC

Capacitance range 2.2 µF to 6800 µF

Capacitance tolerance ±20 % (120 Hz/+20 °C)

Leakage current I < 0.03 CV +3 (µA) After 5 minutes

Dissipation factor (tan d) Please see the attached characteristics list

Endurance

After 2000 hours application of DC working voltage (1000 hours for each polarity) at +85 °C±2 °C,

when the capacitors are restored to 20 °C, the capacitors shall meet the following limits.

Capacitance change Within ±20 % of the initial value

tan d< 150 % of the initial limit

DC leakage current Within the initial limit

Shelf life After storage for 1000 hours at +85 °C±2 °C with no voltage applied and then being stabilized

at +20 °C capacitors shall meet the limits specifi ed in Endurance. (With voltage treatment)

0D 5 6.3 8 10 12.5 16 18

0d 0.5 0.5 0.6 0.6 0.6 0.8 0.8

F 2.0 2.5 3.5 5.0 5.0 7.5 7.5

Frequency (Hz) 50, 60 120 1 k 10 k to

Correction factor 0.70 1.00 1.30 1.70

Mar. 201604

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Characteristics list (Bi-polar)

Endurance : 85 °C 2000 h (1000 hours for each polarity)

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(120 Hz)

(+85 °C)

(mA r.m.s.)

tan d

(120 Hz)

(+20 °C)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

Taping

✽i

6.3

330 8 11.5 250 0.30 0.6 3.5 5.0 ECEA0JN331U( ) 200 1000

470 10 12.5 310 0.30 0.6 5.0 5.0 ECEA0JN471X( ) 200 500

1000 10 20 430 0.30 0.6 5.0 5.0 ECEA0JN102U( ) 200 500

2200 12.5 25 660 0.32 0.6 5.0 5.0 ECEA0JN222U( ) 200 500

3300 16 25 760 0.34 0.8 7.5 7.5 ECEA0JN332U( ) 100 250

4700 16 31.5 1170 0.36 0.8 7.5 ECEA0JN472U 100

6800 18 35.5 1450 0.40 0.8 7.5 ECEA0JN682U 50

10

47 5 11 90 0.25 0.5 2.0 5.0 2.5 ECEA1AN470U( ) 200 2000

100 6.3 11.2 130 0.25 0.5 2.5 5.0 2.5 ECEA1AN101X( ) 200 2000

220 8 11.5 200 0.25 0.6 3.5 5.0 ECEA1AN221U( ) 200 1000

330 10 16 280 0.25 0.6 5.0 5.0 ECEA1AN331U( ) 200 500

470 10 16 340 0.25 0.6 5.0 5.0 ECEA1AN471U( ) 200 500

1000 12.5 20 470 0.25 0.6 5.0 5.0 ECEA1AN102X( ) 200 500

2200 16 25 690 0.27 0.8 7.5 7.5 ECEA1AN222U( ) 100 250

3300 16 31.5 1090 0.29 0.8 7.5 ECEA1AN332U 100

4700 18 35.5 1200 0.31 0.8 7.5 ECEA1AN472U 50

16

10 5 11 40 0.20 0.5 2.0 5.0 2.5 ECEA1CN100U( ) 200 2000

22 5 11 60 0.20 0.5 2.0 5.0 2.5 ECEA1CN220U( ) 200 2000

33 5 11 80 0.20 0.5 2.0 5.0 2.5 ECEA1CN330U( ) 200 2000

47 6.3 11.2 100 0.20 0.5 2.5 5.0 2.5 ECEA1CN470U( ) 200 2000

220 10 12.5 260 0.20 0.6 5.0 5.0 ECEA1CN221X( ) 200 500

330 10 16 330 0.20 0.6 5.0 5.0 ECEA1CN331U( ) 200 500

470 10 20 380 0.20 0.6 5.0 5.0 ECEA1CN471U( ) 200 500

1000 12.5 25 560 0.20 0.6 5.0 5.0 ECEA1CN102U( ) 200 500

2200 16 31.5 750 0.22 0.8 7.5 ECEA1CN222U 100

3300 18 35.5 900 0.24 0.8 7.5 ECEA1CN332U 50

25

10 5 11 45 0.15 0.5 2.0 5.0 2.5 ECEA1EN100U( ) 200 2000

22 5 11 60 0.15 0.5 2.0 5.0 2.5 ECEA1EN220X( ) 200 2000

33 6.3 11.2 90 0.15 0.5 2.5 5.0 2.5 ECEA1EN330U( ) 200 2000

47 6.3 11.2 110 0.15 0.5 2.5 5.0 2.5 ECEA1EN470U( ) 200 2000

100 8 11.5 180 0.15 0.6 3.5 5.0 ECEA1EN101U( ) 200 1000

220 10 16 320 0.15 0.6 5.0 5.0 ECEA1EN221U( ) 200 500

330 12.5 20 350 0.15 0.6 5.0 5.0 ECEA1EN331U( ) 200 500

470 12.5 20 430 0.15 0.6 5.0 5.0 ECEA1EN471U( ) 200 500

1000 16 25 680 0.15 0.8 7.5 7.5 ECEA1EN102U( ) 100 250

2200 18 35.5 900 0.17 0.8 7.5 ECEA1EN222U 50

35

10 5 11 43 0.15 0.5 2.0 5.0 2.5 ECEA1VN100U( ) 200 2000

22 6.3 11.2 80 0.15 0.5 2.5 5.0 2.5 ECEA1VN220U( ) 200 2000

33 8 11.5 100 0.15 0.6 3.5 5.0 ECEA1VN330U( ) 200 1000

47 8 11.5 120 0.15 0.6 3.5 5.0 ECEA1VN470U( ) 200 1000

100 10 16 230 0.15 0.6 5.0 5.0 ECEA1VN101U( ) 200 500

220 12.5 20 360 0.15 0.6 5.0 5.0 ECEA1VN221U( ) 200 500

330 12.5 20 450 0.15 0.6 5.0 5.0 ECEA1VN331U( ) 200 500

470 12.5 25 590 0.15 0.6 5.0 5.0 ECEA1VN471U( ) 200 500

· When requesting taped product, please put the letter “B” or “i” between the “( )”. Lead wire pitch ✽B=5 mm, 7.5 mm, i=2.5 mm.

· Please refer to the page of “Taping dimensions”.

Mar. 201604

Panasonic

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Aluminum Electrolytic Capacitors (Radial Lead Type)

Rated

voltage

(V.DC)

Cap.

(±20 %)

(µF)

Case size (mm)

Specifi cation Lead length (mm)

Part No.

Min. Packaging Q'ty

0DL

Ripple

current

(120 Hz)

(+85 °C)

(mA r.m.s.)

tan d

(120 Hz)

(+20 °C)

Lead

dia.

0d

Lead space

Straight

leads

(pcs)

Taping

(pcs)

Straight

Taping

✽B

Taping

✽i

50

2.2 5 11 18 0.15 0.5 2.0 5.0 2.5 ECEA1HN2R2U( ) 200 2000

3.3 5 11 25 0.15 0.5 2.0 5.0 2.5 ECEA1HN3R3U( ) 200 2000

4.7 5 11 30 0.15 0.5 2.0 5.0 2.5 ECEA1HN4R7U( ) 200 2000

10 6.3 11.2 50 0.15 0.5 2.5 5.0 2.5 ECEA1HN100U( ) 200 2000

22 8 11.5 90 0.15 0.6 3.5 5.0 ECEA1HN220U( ) 200 1000

33 8 11.5 110 0.15 0.6 3.5 5.0 ECEA1HN330U( ) 200 1000

47 10 12.5 140 0.15 0.6 5.0 5.0 ECEA1HN470U( ) 200 500

100 10 20 250 0.15 0.6 5.0 5.0 ECEA1HN101U( ) 200 500

220 12.5 25 360 0.15 0.6 5.0 5.0 ECEA1HN221U( ) 200 500

330 16 25 450 0.15 0.8 7.5 7.5 ECEA1HN331U( ) 100 250

470 16 31.5 590 0.15 0.8 7.5 ECEA1HN471U 100

· When requesting taped product, please put the letter “B” or “i” between the “( )”. Lead wire pitch ✽B=5 mm, 7.5 mm, i=2.5 mm.

· Please refer to the page of “Taping dimensions”.

Characteristics list (Bi-polar)

Endurance : 85 °C 2000 h (1000 hours for each polarity)

Mar. 201604

Panasonic 1005 Kadoma, Kadoma City, Osaka 57178506, JAPAN

Please contact Factory

CAUTION AND WARNING

The information in this catalog is valid as of June 2019.

1. The electronic components contained in this catalog are designed and produced for use in home electric appliances, office equipment,

information equipment,communications equipment, and other general purpose electronic devices.

Before use of any of these components for equipment that requires a high degree of safety, such as medical instruments, aerospace equipment,

disaster-prevention equipment, security equipment, vehicles (automobile, train, vessel),

please be sure to contact our sales representative corporation.

2. When applying one of these components for equipment requiring a high degree of safety, no matter what sort of application it might be, be sure to

install a protective circuit or redundancy arrangement to enhance the safety of your equipment. In addition, please carry out the safety test on your

own responsibility.

3. When using our products, no matter what sort of equipment they might be used for, be sure to make a written agreement on the speciﬁcations with

us in advance.

4. Technical information contained in this catalog is intended to convey examples of typical performances and or applications and is not

intended to make any warranty with respect to the intellectual property rights or any other related rights of our company or any third parties nor

grant any license under such rights.

5. In order to export products in this catalog, the exporter may be subject to the export license requirement under the Foreign Exchange and

Foreign Trade Law of Japan.

6. No ozone-depleting substances (ODSs) under the Montreal Protocol are used in the manufacturing processes of Automotive & Industrial Systems

Company, Panasonic Corporation.

Device Solutions Business Division

Industrial Solutions Company

Aluminum Electrolytic Capacitor Catalog Datasheet by Panasonic Electronic Components

Products related to this Datasheet
